PC Concepts Full-Rated Router ADSL2+ User Manual
Page 56
55

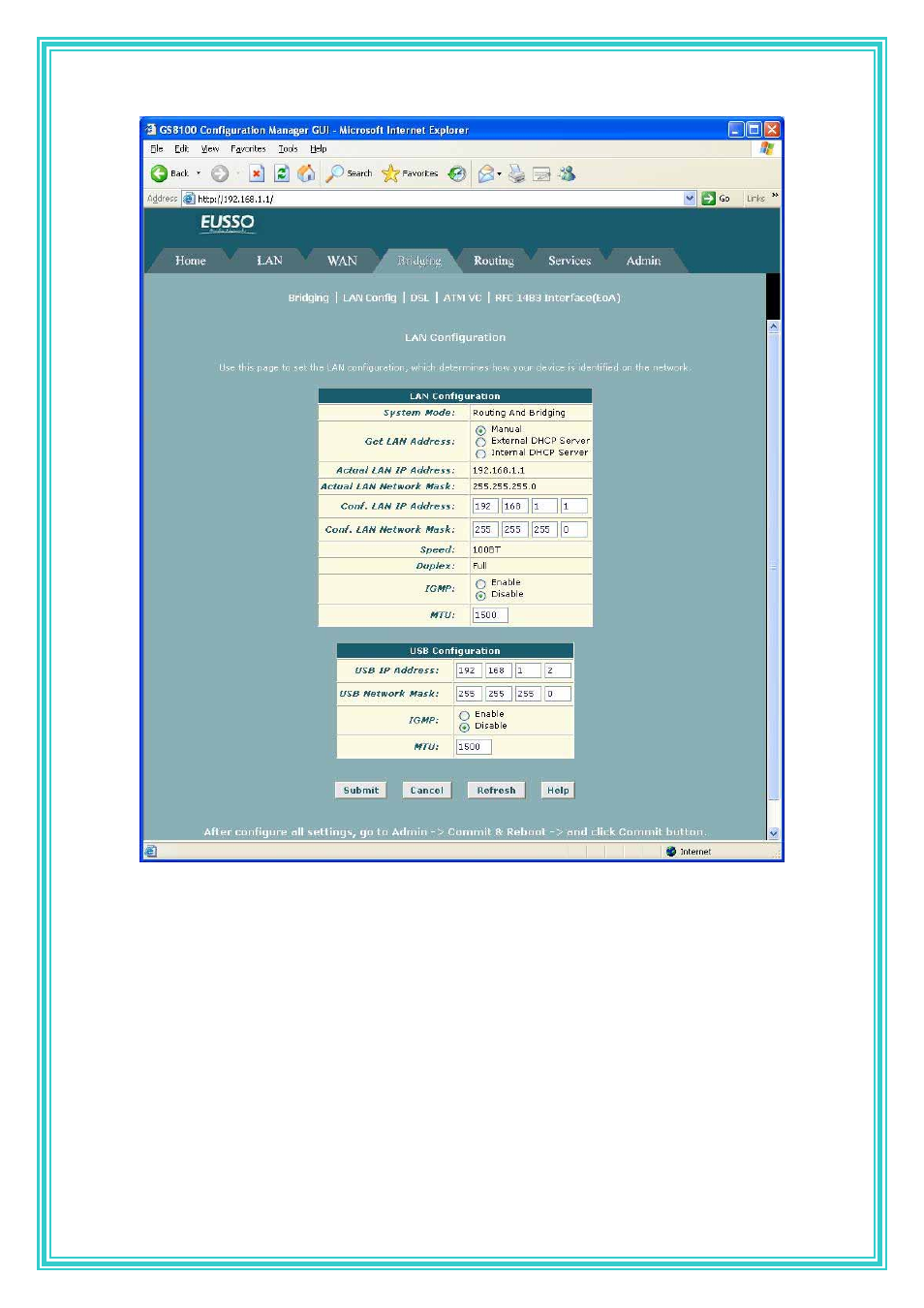

The LAN Configuration table displays the following settings:
System Mode: Identifies the system operating mode for your device, such as Routing mode,
Bridging mode, or both modes simultaneously.
Get LAN Address: Provides options for how the device's LAN interface is assigned an IP
address.
z
Manual indicates that you will be assigning a static IP address, which you can enter in the
fields below.
z
External DHCP Server indicates that your ISP will be assigning an IP address from their
own DHCP servers, dynamically each time you log on.
z
Internal DHCP Server indicates that you have a DHCP server device on your network
