Chapter 5 Preparation
60
Using the NP-1 type battery pack
Using the V-mount type battery pack
Attach the V-mount adapter plate.
Insert it in the direction shown by the arrows, and slide it into
place.
1
Remove the battery holder.
2

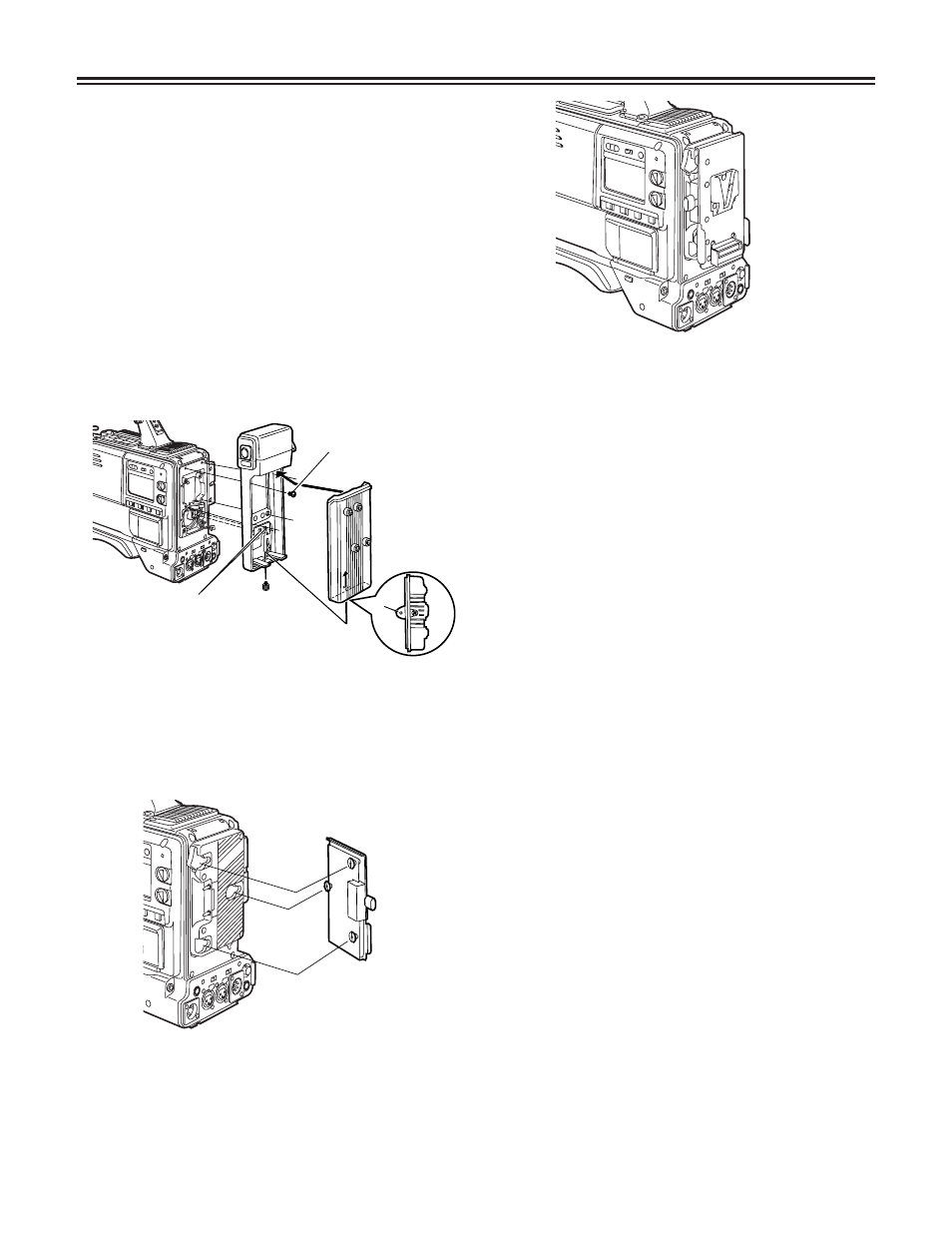

Attach the NP-1 type battery case to the unit.
1 Tighten the mounting screws.
2 Tighten the power contact screws.
3 Insert the top of the detached cover in the direction
shown by the arrows.
4 Align the holes in the bottom of the cover (metal part)
with the holes at the bottom of the case, and use the
screws to attach the case.
When mounting the battery holder, take care not to pinch
the connecting cord.
1
2
4
NP-1 type Battery case
3
3
Set the battery type.
Select the battery type using the BATTERY SELECT
menu item. This item is selected from the
screen on the VTR FUNCTION page.
When using a nickel-cadmium battery which cannot be
selected using the BATTERY SELECT item setting,
select NiCd14(14V), NiCd13(13 V) or NiCd12(12 V),
whichever setting corresponds to the battery’s voltage,
and set the items that correspond to the characteristics of
the battery.
If the battery is not a nickel-cadmium battery, select
TYPE A or TYPE B, and set the items that correspond to
the characteristics of the battery.
For details, refer to “7-8-4 BATTERY SETTING2.”
Address all inquiries concerning the V-mount adapter
plate to your dealer.
