Using the BP-90 type battery pack
1

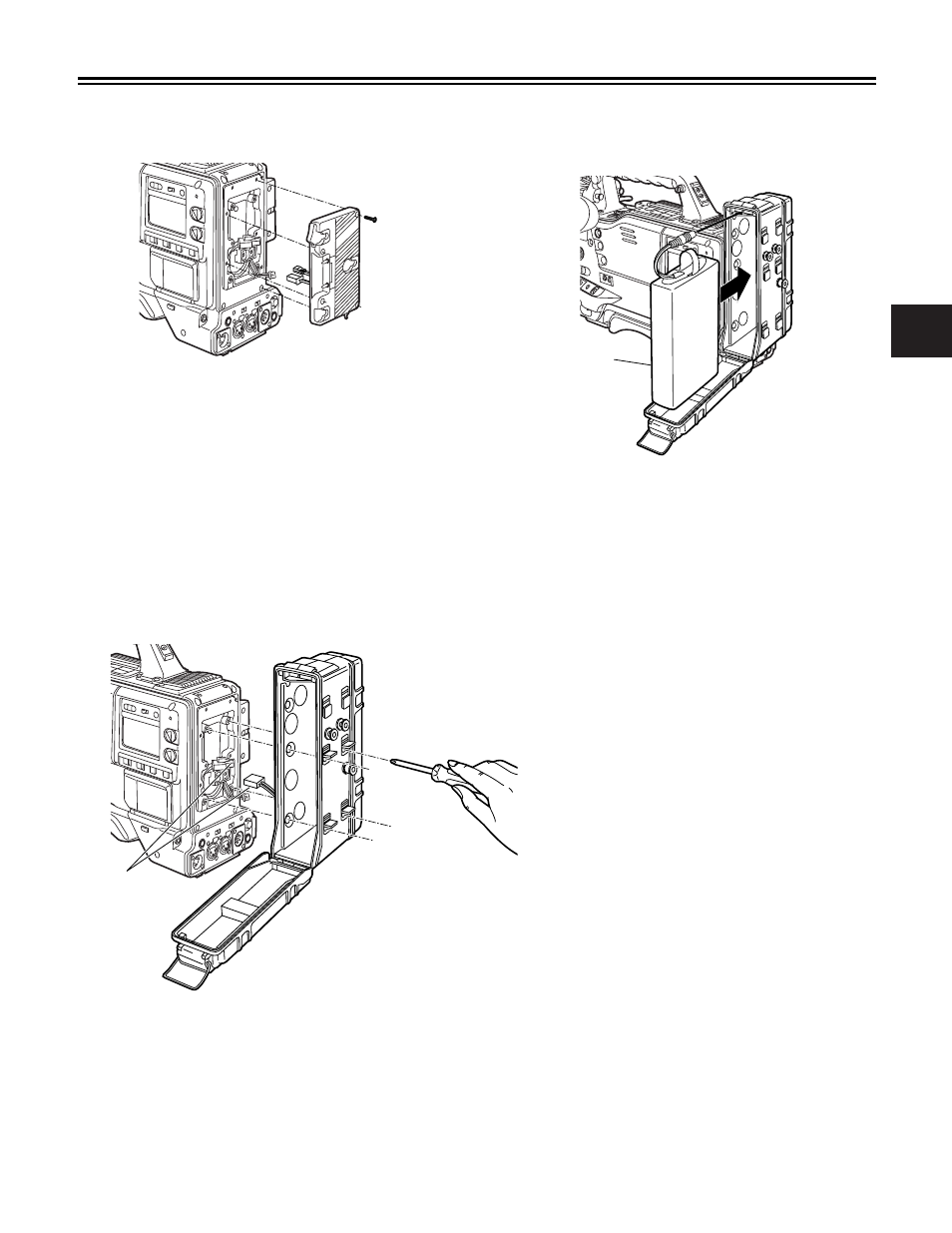

Remove the battery holder.
Battery holder
2
Attach the battery case to the unit.
1 Connect the unit’s cable with the cable of the BP-90
type battery case.
2 Use a screwdriver to attach the BP-90 type battery
case to the unit.
The holes for tightening the screws can be seen when
the cover is opened and the rubber caps are raised.
Use a screwdriver to tighten the screws, and attach the
battery case to the unit. Ensure that the screws are
tightened up as far as they will go.
≥
Do not pull the rubber caps with great force.
≥ Be careful not to catch up the cables when attaching the
battery case.
Connect
here.
BP-90 type
battery case
3
Connect the plug of the battery pack to the connector
inside the battery case, and insert the battery pack into
the case.
Ensure that the power is turned off before connecting or
disconnecting the plugs.
Label
surface
4
Set the battery type.
Select the battery type using the BATTERY SELECT
menu item. This item is selected from the
screen on the VTR FUNCTION page.
For details, refer to “7-8-3 BATTERY SETTING1.”
