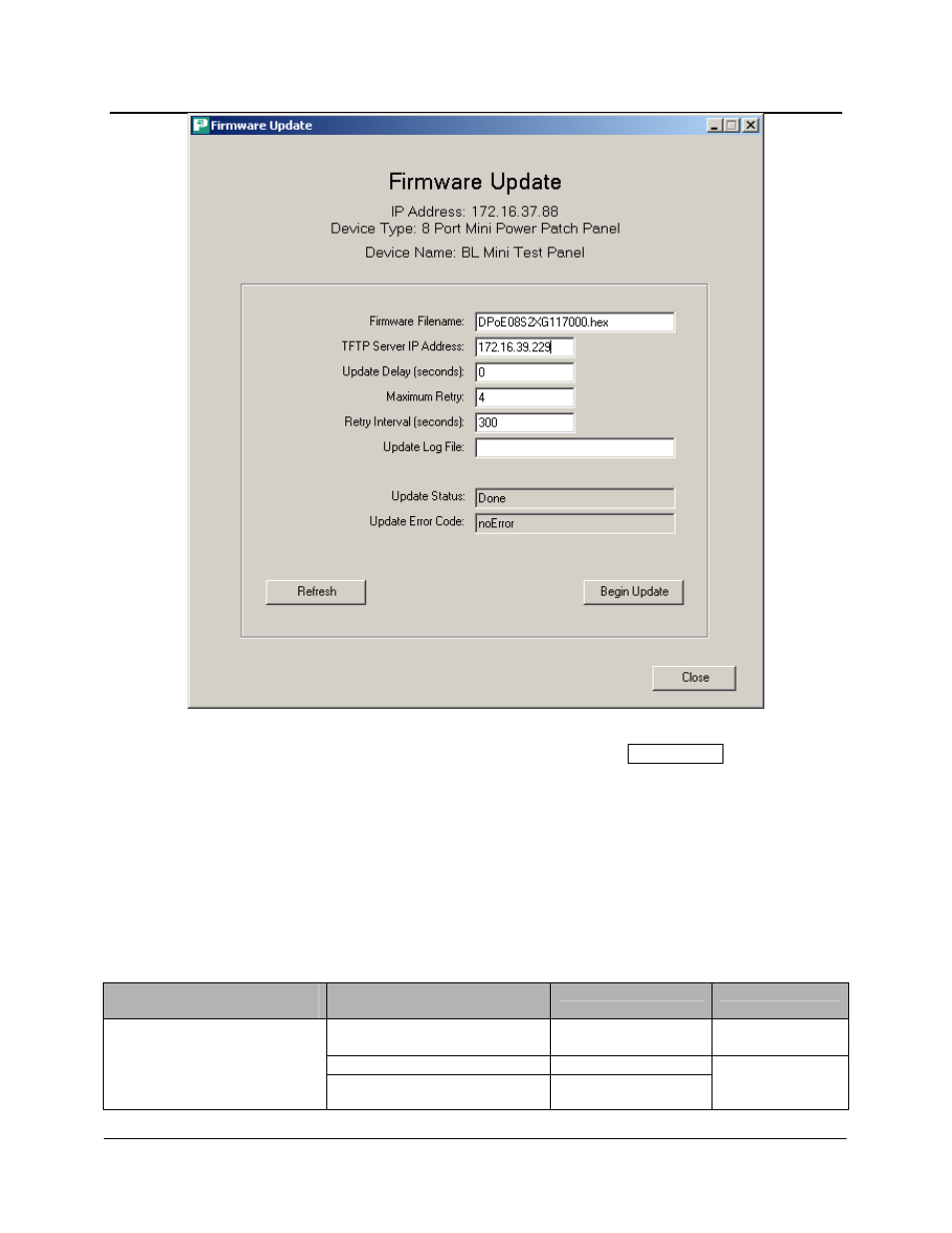

4. Enter the TFTP information in the EM screen and then click on the Begin Update button.
5. Observe the System status LED begins flashing red on the DPoE™ Power Patch Panel. See
Table 12A: DPoE™ Power Patch Panel Firmware Update LED status for the LED activity during
the Firmware update.
6. Allow sufficient time for the Firmware Update to complete. (Approximately 10 minutes)
7. When the Firmware Update is complete the System status LED resumes flashing green.
Table 13A: DPoE™ Power Patch Panel Firmware Update LED Status
System LED
Color and activity
Network LED
Color and activity
State Description Elapsed Time
Off
Ethernet Switch
Initialization
00 – 01 seconds
Amber Solid DHCP Initialization
Red Solid
Green Blink DHCP complete 01 – 100
seconds
