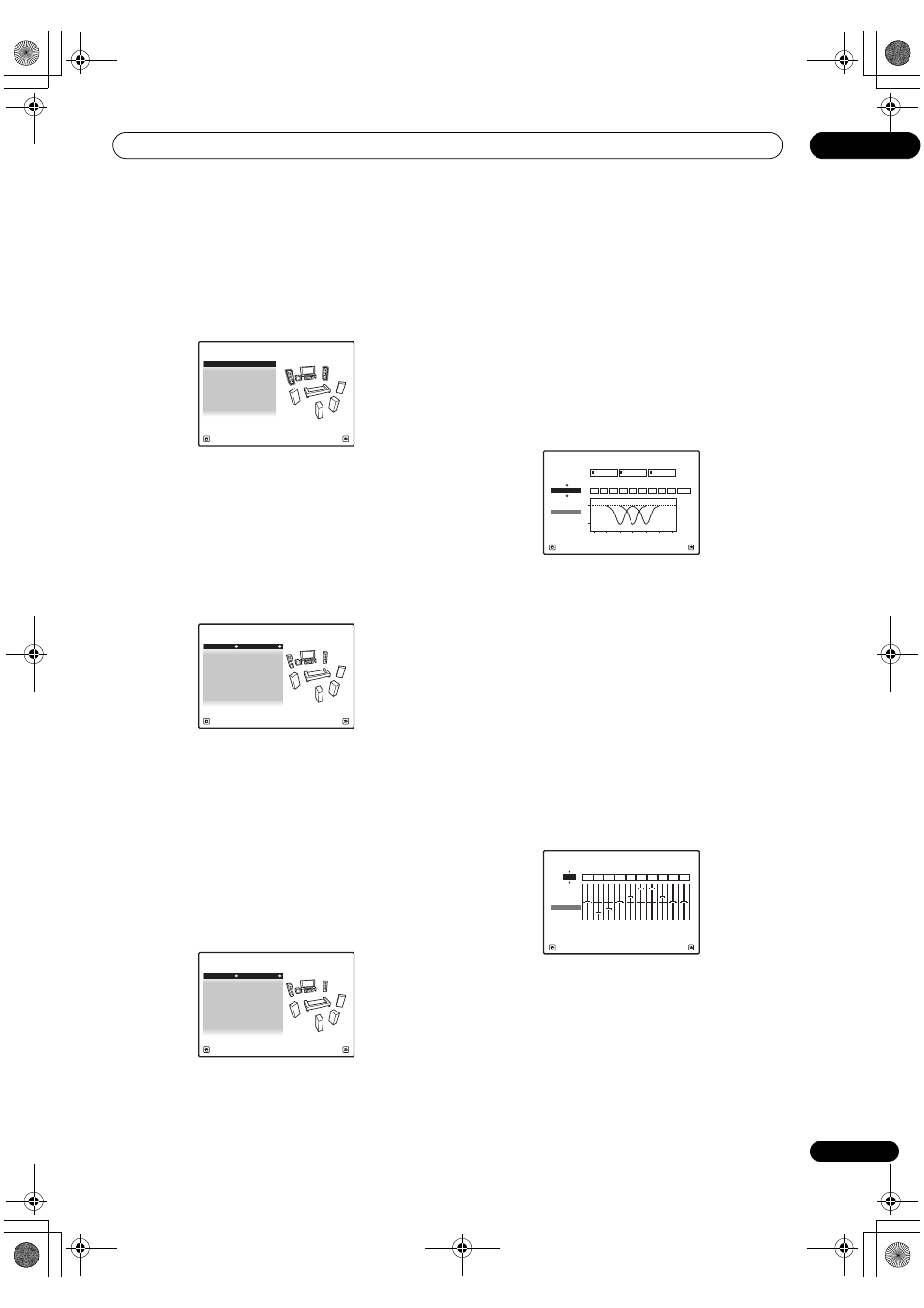

The Advanced MCACC menu
10
87
En
Speaker Setting
Use this to display the speaker size and number of
speakers. See Speaker Setting on page 91 for more on this.
1
Select ‘Speaker Setting’ from the MCACC Data
Check menu.
2
Select the channel you want to check.
Use
/ to select the channel. The corresponding
channel on the layout diagram is highlighted.
Channel Level
Use this to display the level of the various channels. See
Channel Level on page 92 for more on this.
1
Select ‘Channel Level’ from the MCACC Data
Check menu.
2
When ‘MCACC’ is highlighted, use
/ to select
the MCACC preset you want to check.
The level of the various channels set at the selected
MCACC preset is displayed. ‘---’ is displayed for channels
that are not connected.
Speaker Distance
Use this to display the distance from the different
channels to the listening position. See Speaker Distance
on page 93 for more on this.
1
Select ‘Speaker Distance’ from the MCACC Data
Check menu.
2
When ‘MCACC’ is highlighted, use
/ to select
the MCACC preset you want to check.
The distance from the various channels set at the
selected MCACC preset is displayed. ‘---’ is displayed for
channels that are not connected.
Standing Wave
Use this to display the standing wave related adjustment
values for the various MCACC memories. See Standing
Wave on page 82 for more on this.
1
Select ‘Standing Wave’ from the MCACC Data
Check menu.
2
When ‘Filter Channel’ is highlighted, use
/ to
select the channel for which you want to check
standing wave control.
The standing wave related calibration value for the
selected channel stored at the selected MCACC preset
and its graph are displayed.
3
Press
to highlight ‘MCACC’, then use / to
select the MCACC preset you want to check.
Acoustic Cal EQ
Use this to display the calibration values for the
frequency response of the various channels set in the
different MCACC presets. See Acoustic Calibration EQ
Adjust on page 83 for more on this.
1
Select ‘Acoustic Cal EQ’ from the MCACC Data
Check menu.
2
When ‘Ch’ is highlighted, use
/ to select the
channel.
The calibration value for the frequency response of the
selected channel stored at the selected MCACC preset
and its graph are displayed.
3
Press
to highlight ‘MCACC’, then use / to
select the MCACC preset you want to check.
Front : LARGE
Surr : LARGE
Center :
LARGE
2a.Speaker Setting
SB
: LARGE x 2
SW : YES
A/V RECEIVER
Exit
Return
A/V RECEIVER
Exit
Return
MCACC : M1.MEMORY 1
L :
0.0
dB
2b.Channel Level
C :
0.0
dB
R :
0.0
dB
SBR : 0.0
dB
SR :
0.0
dB
SBL : 0.0
dB
SL :
0.0
dB
SW : 0.0
dB
A/V RECEIVER
Exit
Return
L :
10’10”
2c.Speaker Distance
C :
10’10”
R :
9’10”
SBR :
6’00”
SR :
9’00”
SBL :
6’00”
SL :
9’00”
SW : 12’10”
MCACC : M1.MEMORY 1
2d.Standing Wave
A/V RECEIVER
Exit
Return
Filter 1
Freq
[Hz]
Q
ATT
[dB]
Filter 2
Freq
[Hz]
Q
ATT
[dB]
Filter 3
Freq
[Hz]
Q
ATT
[dB]
63
SW
Filter
Channel
10
5.0
120
10
5.0
201
10
+10.0
5.0
TRIM
[dB]
0
5
10
16
32
63
125
250
500
1k Hz
dB
MCACC
M1.MEMORY1
63
[Hz]
125
[Hz]
250
[Hz]
500
[Hz]
1k
[Hz]
2k
[Hz]
4k
[Hz]
8k
[Hz]
16k
[Hz]
TRIM
dB
2e.Acoustic Cal EQ
Exit
Return
0.0
Ch :
L
-6.0
-8.0
0.0
+8.5
+3.0
+8.5
0.0
0.0
+3.0
A/V RECEIVER
MCACC
M1.MEMORY1
