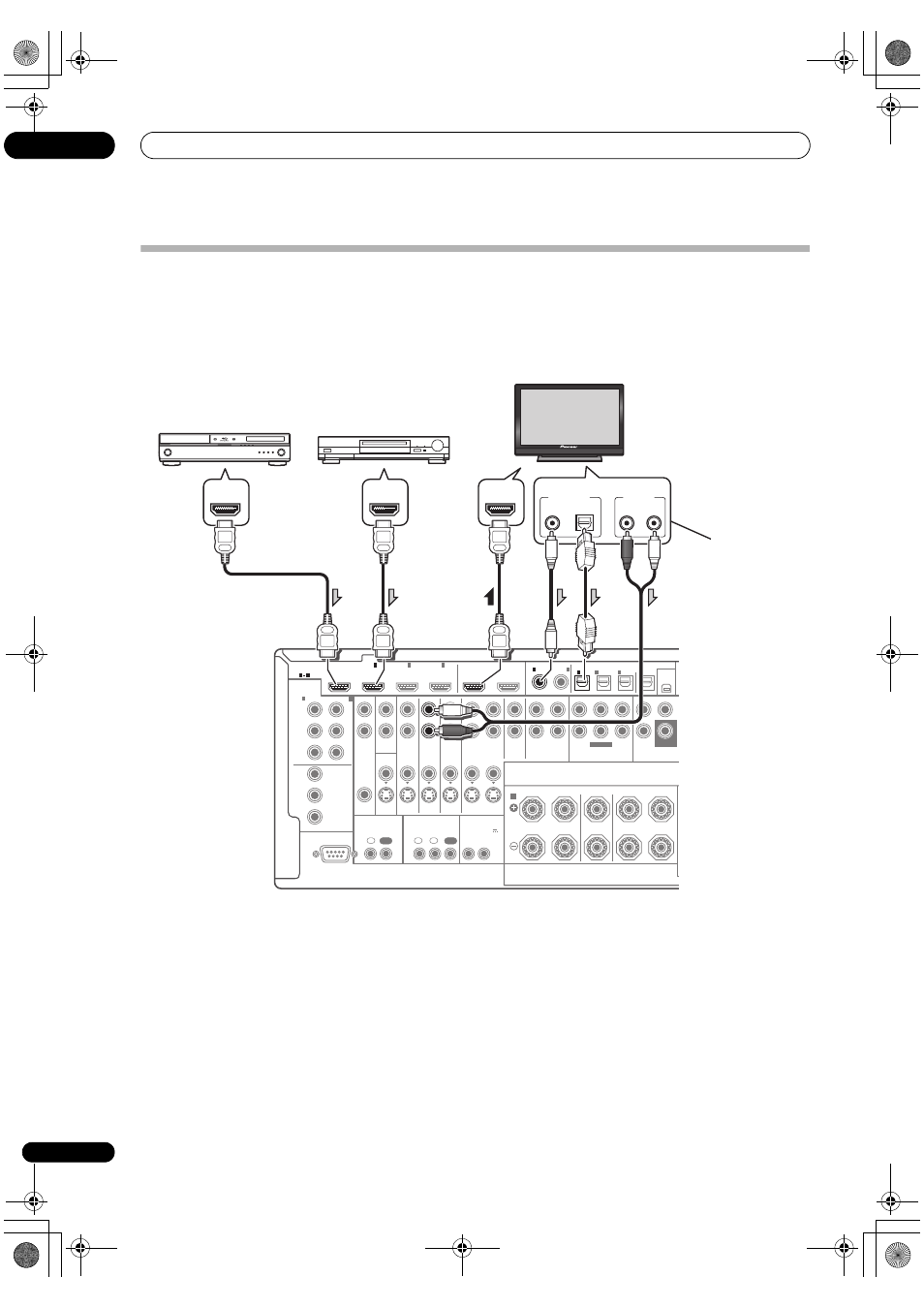

Connecting your TV and playback components
Connecting using HDMI
If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray disc player, etc.), you can connect it to this
receiver using a commercially available HDMI cable.
If the TV and playback components support the Pioneer KURO LINK feature, the convenient KURO LINK functions can
be used (see KURO LINK on page 63).
• When connecting a Blu-ray disc player, connect the
player to the receiver’s BD IN terminal.
• VSX-23TXH only: When connecting to an HDMI/DVI-
compatible monitor or a flat panel TV using the HDMI
OUT 2 terminal, switch the HDMI output setting to
HDMI OUT 2 or HDMI OUT ALL. See Switching the
HDMI output on page 71.
• The HDMI indicator lights on the front panel when an
HDMI-equipped component is connected.
• For input components, connections other than HDMI
connections are also possible (see Connecting your
DVD player with no HDMI output on page 25).
• If your Blu-ray disc player offers multi-channel analog
audio outputs, see Connecting the multichannel
analog inputs on page 29.
• The sound of the TV cannot be heard over the receiver
if the TV is connected using an HDMI cable.
If you want to listen to the sound of the TV over the
receiver, connect the receiver and TV with audio
cables. When making digital connections with a
coaxial cable at this time, the digital input setting
must be made (see The Input Setup menu on
page 43).
