12 MULTI-ZONE controls
If you’ve made MULTI-ZONE connections (see MULTI-
ZONE setup on page 33) use these controls to control the
sub zone from the main zone (see Using the MULTI-ZONE
controls on page 69).
13 MCACC SETUP MIC jack
Use to connect the supplied microphone (page 41).
14 iPod/iPhone/USB terminals
Use to connect your Apple iPod as an audio and video
source, or connect a USB device for audio and photo
playback (page 38).
15 VSX-23TXH only: HDMI 4 input connector
Use for connection to compatible HDMI device (Video
camera, etc.). See Connecting an HDMI-equipped
component to the front panel input on page 37.
16 VSX-21TXH only: VIDEO 2 INPUT terminals
Use to connect your portable equipment such as
camcorders, video games and portable audio/video
equipment. See Connecting a component to the front
panel inputs on page 38.

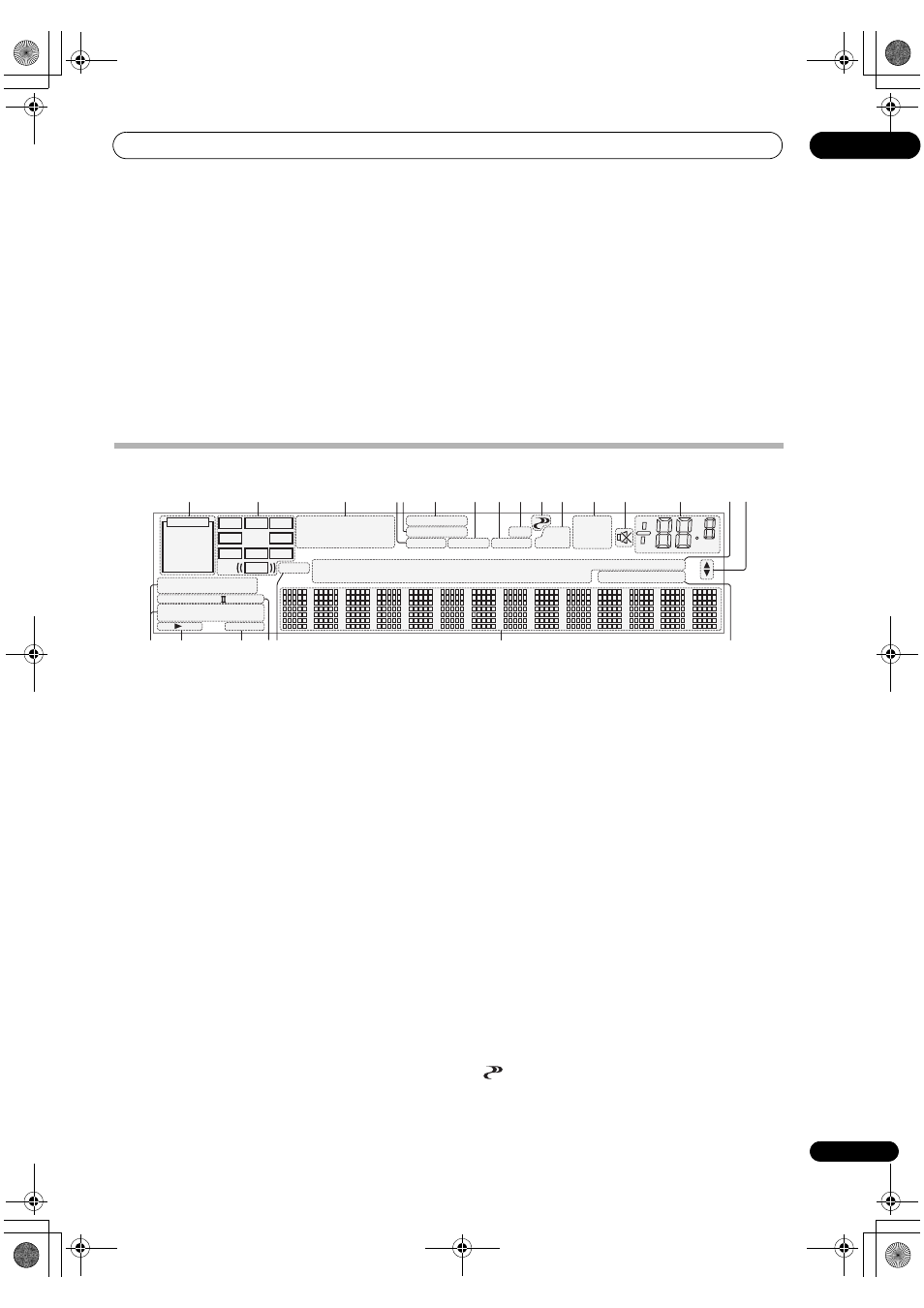

Display
1
SIGNAL indicators
Light to indicate the currently selected input signal.
AUTO lights when the receiver is set to select the input
signal automatically (page 61).
2
Program format indicators
Light to indicate the channels being input when PCM
signals are being input. They do not indicate the audio
signals being output from the receiver.
L/R – Left front/Right front channel
C – Center channel
SL/SR – Left surround/Right surround channel
LFE – Low frequency effects channel (the (( )) indicators light
when an LFE signal is being input)
XL/XR – Two channels other than the ones above
XC – Either one channel other than the ones above, the mono
surround channel or matrix encode flag
3
Digital format indicators
Light when a signal encoded in the corresponding format
is detected.
4
S.RTRV
Lights when the Sound Retriever function is active
(page 66).
5
MULTI-ZONE
Lights when the MULTI-ZONE feature is active (page 69).
6
DSD PCM – Light during DSD (Direct Stream Digital) to
PCM conversion with SACDs.
PCM – Lights during playback of PCM signals.
7
SOUND
Lights when any of the Midnight, Loudness or tone
controls feature is selected (page 66).
Lights when Dialog Enhancement is switched on.
8
UP MIX
Lights when the Up Mix is switched on (page 60).
9
Listening mode indicators
AUTO SURROUND – Lights when the Auto Surround
feature is switched on (page 56).
ALC – Lights when the ALC (Auto level control) mode
is selected (page 59).
STREAM DIRECT – Lights when Direct/Pure Direct is
selected (page 59).
ADV.SURROUND – Lights when one of the
Advanced Surround modes has been selected
(page 58).
STEREO – Lights when stereo listening is switched
on (page 58).
STANDARD – Lights when one of the Standard
Surround modes is switched on (page 56).
THX – Lights when one of the Home THX modes is
selected (page 57).
10
(PHASE CONTROL)
Lights when the Phase Control is switched on (page 61).
