Basic Setup 04
41
En
Automatically setting up for surround
sound (Auto MCACC)
The Auto MCACC Setup measures the acoustic
characteristics of your listening area, taking into account
ambient noise, speaker connection and speaker size, and
tests for both channel delay and channel level. After you
have set up the microphone provided with your system,
the receiver uses the information from a series of test
tones to optimize the speaker settings and equalization
for your particular room.
Make sure you do this before moving on to Playing a
source on page 45.
Important
• Make sure the microphone and speakers are not
moved during the Auto MCACC Setup.
• Using the Auto MCACC Setup will overwrite any
existing settings for the MCACC preset you select.
• Before using the Auto MCACC Setup, the
headphones should be disconnected and the iPod/
USB, XM or SIRIUS Radio function should not be
selected as an input function.
CAUTION
• The test tones used in the Auto MCACC Setup are
output at high volume.

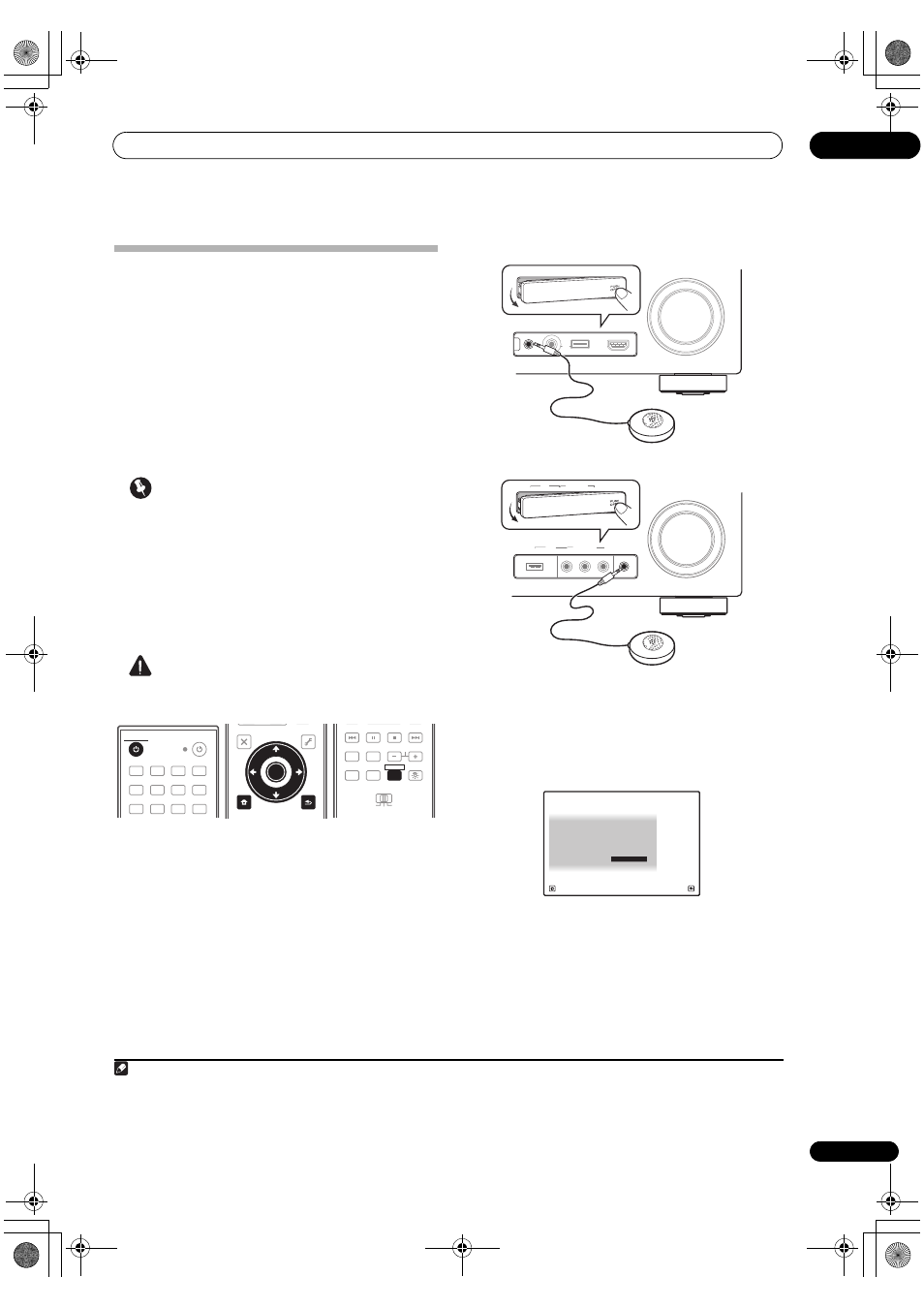

1 Switch on the receiver and your TV.
Use  RECEIVER to switch on.
2 Connect the microphone to the MCACC SETUP MIC
jack on the front panel.
• Push down on the PUSH OPEN tab to access the
MCACC SETUP MIC jack.
Make sure there are no obstacles between the speakers
and the microphone.
VSX-23TXH:
VSX-21TXH:
If you have a tripod, use it to place the microphone so that
it’s about ear level at your normal listening position. If you
do not have a tripod, use some other object to install the
microphone.
1
The Full Auto MCACC display appears once the
microphone is connected.
2 DVD BD DVR HDMI
TV CD CD-R
TUNER
VIDEO
iPod USB SIRIUS XM
RECEIVER SOURCE
T.EDIT
GUIDE
TOP MENU
BAND
RETURN
iPod CTRL
HOME
MENU
LIST TOOLS
CATEGORY
AUDIO
PARAMETER
ENTER
TUNE
PRESET PRESET
TUNE
VIDEO
PARAMETER
REMOTE
SETUP
ZONE 2
MAIN
ZONE 3
ANT MEMORY
AUDIO INFO
DISP
MPX PQLS
CH
RECEIVER TV CTRL
Note
1 It may not be possible to measure correctly if the microphone is placed on a table, sofa, etc.
2 • You can’t use the HOME MENU when the iPod/USB, XM or SIRIUS Radio input function is selected (in either the main or sub zone).
• VSX-23TXH: When you set ZONE 2, ZONE 3 or ZONE 2&3 to ON (page 69), you can’t use the HOME MENU.
• VSX-21TXH: When you set ZONE 2 to ON (page 69), you can’t use the HOME MENU.
• If you leave the GUI screen for over five minutes, the screen saver will appear.
MASTER
VOLUME
MCACC SETUP MIC USB
iPod iPhone
VIDEO CAMERA
HDMI 4
CONTROL ON / OFF
MASTER
VOLUME
MCACC SETUP MIC USB VIDEO L R AUDIO
iPod iPhone VIDEO 2 INPUT
CONTROL ON / OFF
MCACC SETUP MIC USB VIDEO L R AUDIO
iPod iPhone VIDEO 2 INPUT
Surr Back System : Normal
1a.Full Auto MCACC
A/V RECEIVER
Exit Return
START
Save SYMMETRY to : M1.MEMORY 1
