Solstice I12 Water Cooker Computer Service
Part #60153301
L22-306 Rev 0 23
12 9 6
11
10
8 5
7 4
3
2
1
11 8 5 2
12 9 6 3
10 7 4 1

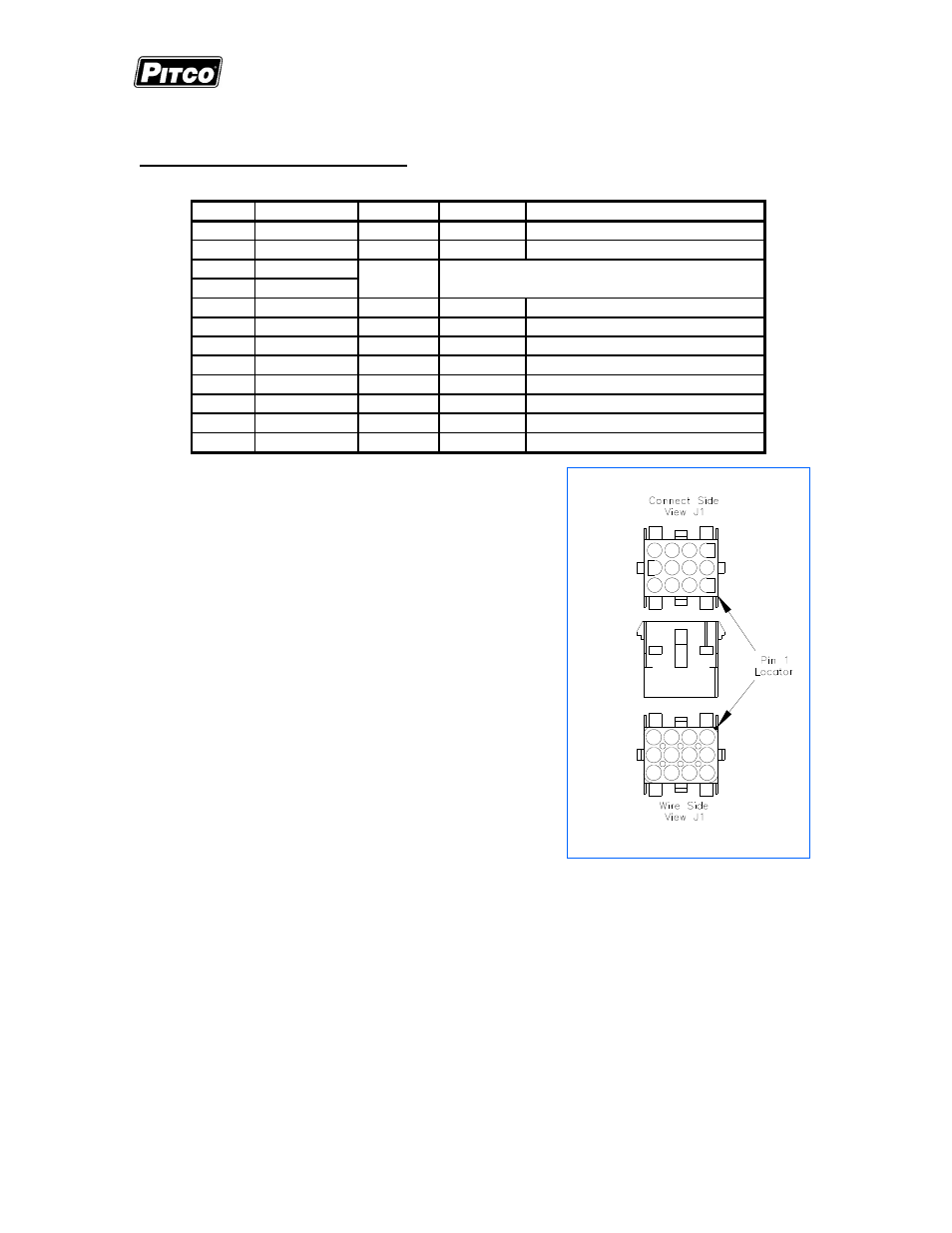

J1
8 Electrical Connections at J1:
Tip: Use the diagnostic menu to check outputs, and
verify inputs.
J1 Inputs Type Nominal Notes:
1 ACH PWR 24VAC 24VAC +20% -15% 50/60Hz.
2 ACN PWR 24VACN 24VAC Return.
3 PROBE+
4 PROBE-
5 DVI IN 24VAC Drain Valve Interlock
6 HFB IN 24VAC Heat Feed Back
7 24VDC COM IN 24VDC DC Return
8 HD OUT 24VDC Heat Demand
9 SO/xFER OUT 24VDC Side ON or XFER
10 RBL OUT 24VDC Right Basket Lift
11 LBL OUT 24VDC Left Basket Lift
12 FD IN 24VAC Fill Done Input
Thermistor
Proble Resistance varies with vat temperature. 942 Ohms
@ 350°F
