10 Powerware 9315 Maintenance Bypass Module 30-160kVA
164201177 Rev. C 041500
FRONT SIDE
SUPPORT SUPPORT
1
1
2
JACKING BOLT
FLOOR
PROTECTOR
1
2
DOOR
REAR
SUPPORT
(USE FRONT AND REAR)
(4 PLACES)
POLYFOAM
SKID
POLYFOAM
SKID

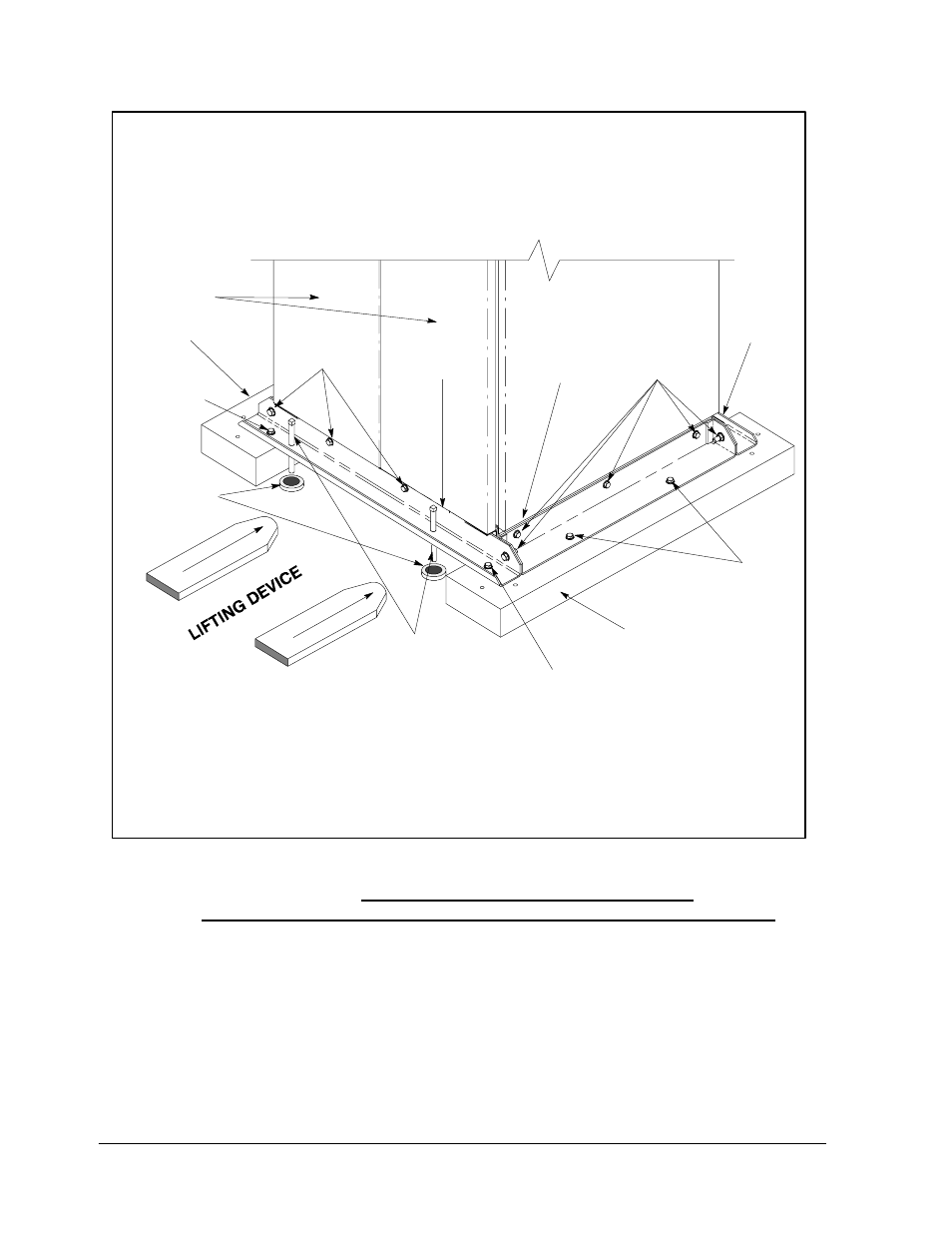

Figure 4. Detail of Shipping Supports
6. Carefully and evenly lower the MBM by turning each jacking bolt
counterclockwise in sequence no more than two full turns each (maximum)
until the supports contact the floor, and the module is no longer supported by
the jacking bolts.
7. When the module is resting on the floor, remove the jacking bolts. Discard or
recycle them in a responsible manner.
8. Remove the hardware labeled “2” in Figure 4, holding the front, rear and side
supports to the module base (14 places). Discard or recycle the hardware and
support brackets in a responsible manner.
9. Install the doors removed in step 1. The MBM is now ready to be rolled to its
final location.
