121

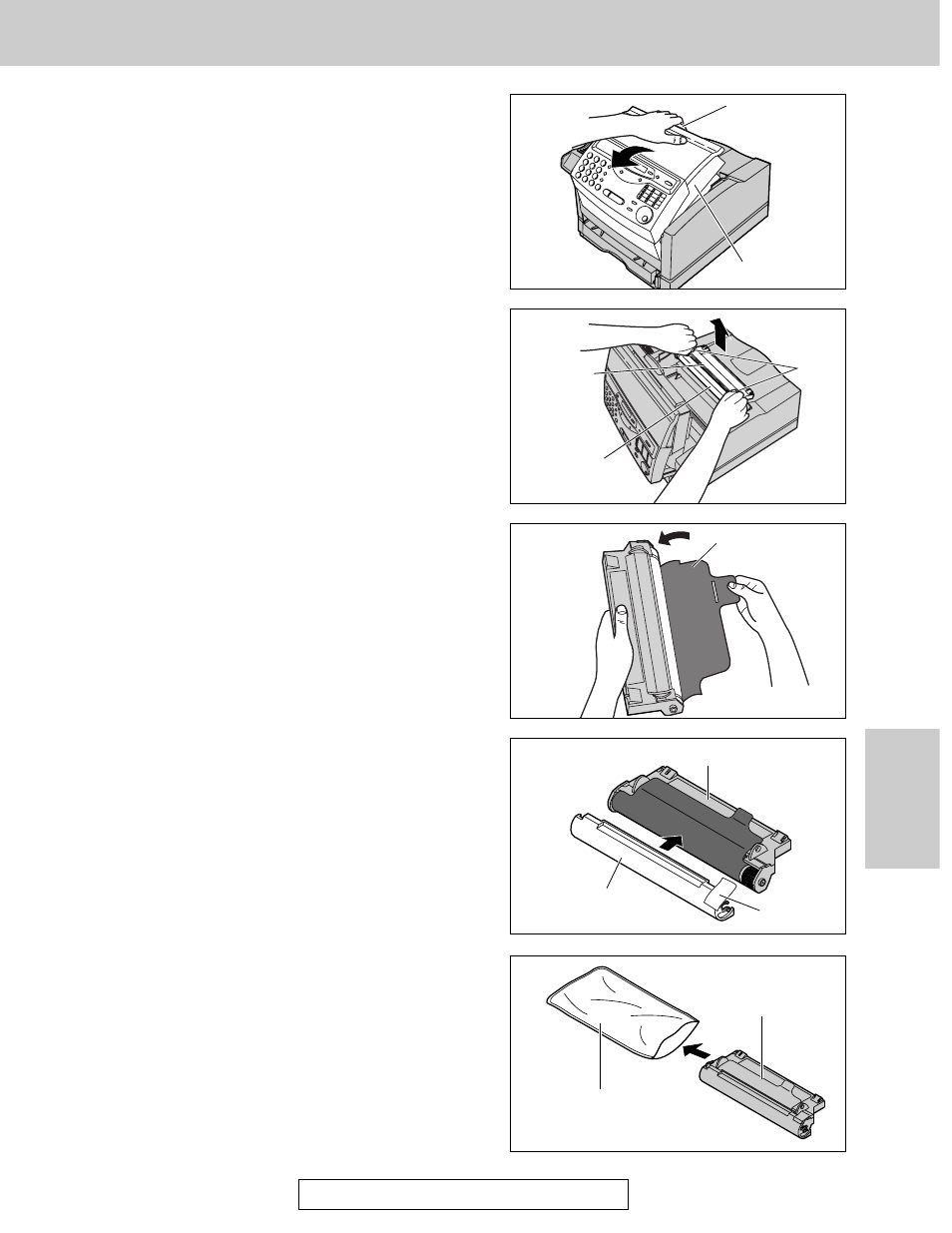

Repacking
For assistance, call 1-800-435-7329.
Help
5 Remove the drum unit by holding the two tabs.
Caution:
≥ Do not touch or scratch the green drum surface
as this may damage the drum unit.
6 Attach the protection sheet and cover the green
drum surface completely.
Caution:
≥ Do not expose the drum unit to light for more than
5 minutes as this may damage the drum unit.
≥ Prevent the green drum surface from being
sticked with the tape.
8 Pack the drum unit into the protection bag.
Green drum
surface
Protection sheet
Protection bag
Drum unit
4 Pull the top cover handle forward and open the top
cover.
Top cover
handle
Top cover
Tabs
Drum unit
7 Attach the protection cap to the drum unit using the
tape.
Protection cap
Drum unit
(continued)
Tape
