Advanced Configuration Options 55
Model 3202 Getting Started Guide 4 • Web configuration
Configuring DSCP Options. Click on QoS under Advanced on the main menu to reach the QoS advanced
configuration page. Then, select the radio button for IP DSCP Priority to display the configuration options.

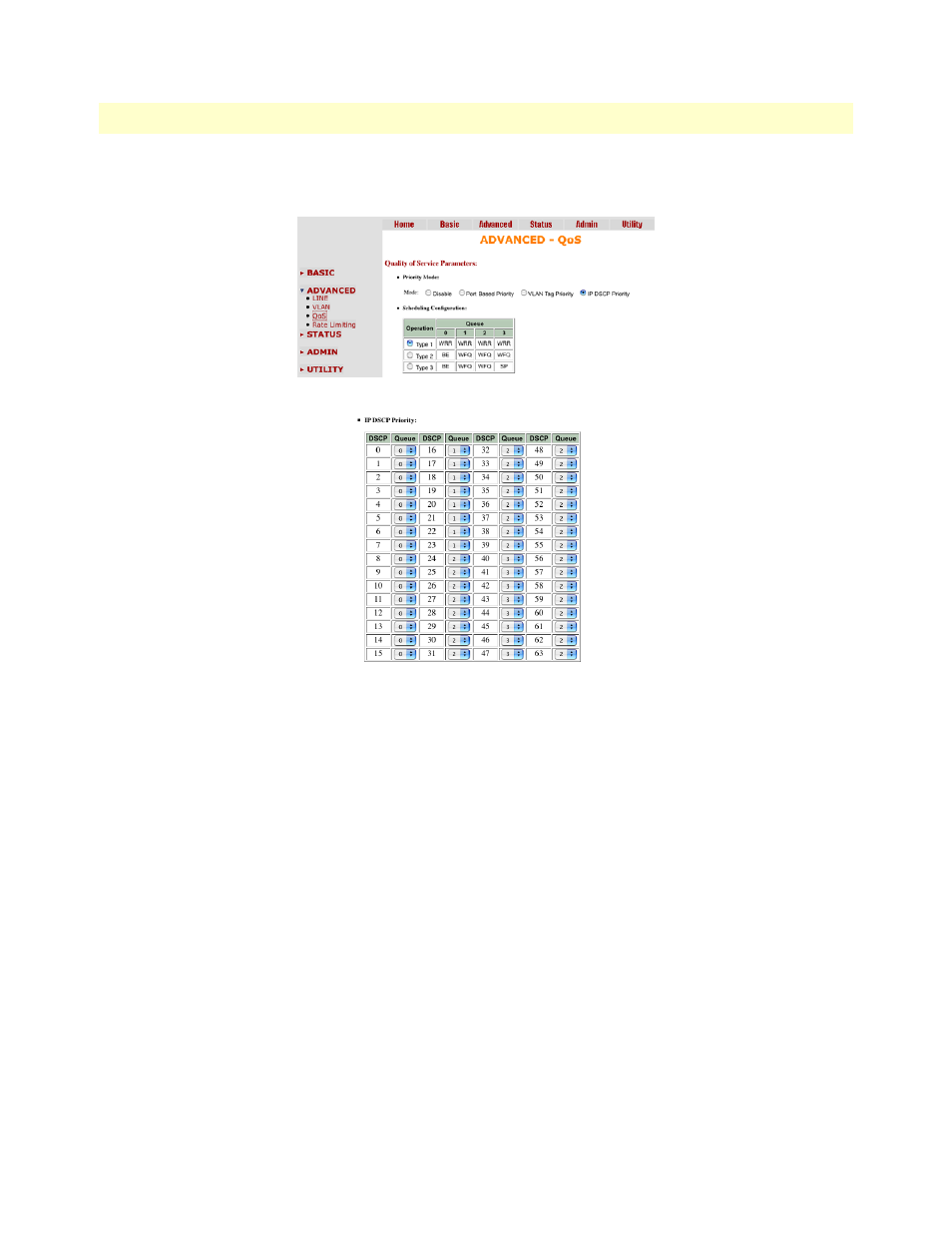

Figure 31. QoS - IP DSCP Priority page
Each DSCP value (from 0 to 63) is mapped to a Queue value (from 0 to 3) from the drop-down list The num-
ber 0 represents the lowest priority and number 3 represents the highest priority and according various queuing
strategies to tailor performance to requirements.
If you want to save the changes, click Finish. After you click Finish, review page will display for you to confirm
your changes. To let the configuration that you have changed take effect, click Restart to reboot system. If you
want to continue the setup procedure, click Continue.
