Advanced Configuration Options

43

Model 3202 Getting Started Guide

4 • Web configuration

802.1Q Tag-Based VLAN
Click on VLAN under Advanced on the main menu to reach the VLAN advanced configuration page. Then,
select the radio button for 802.1Q Tag-Based VLAN to display the configuration options.

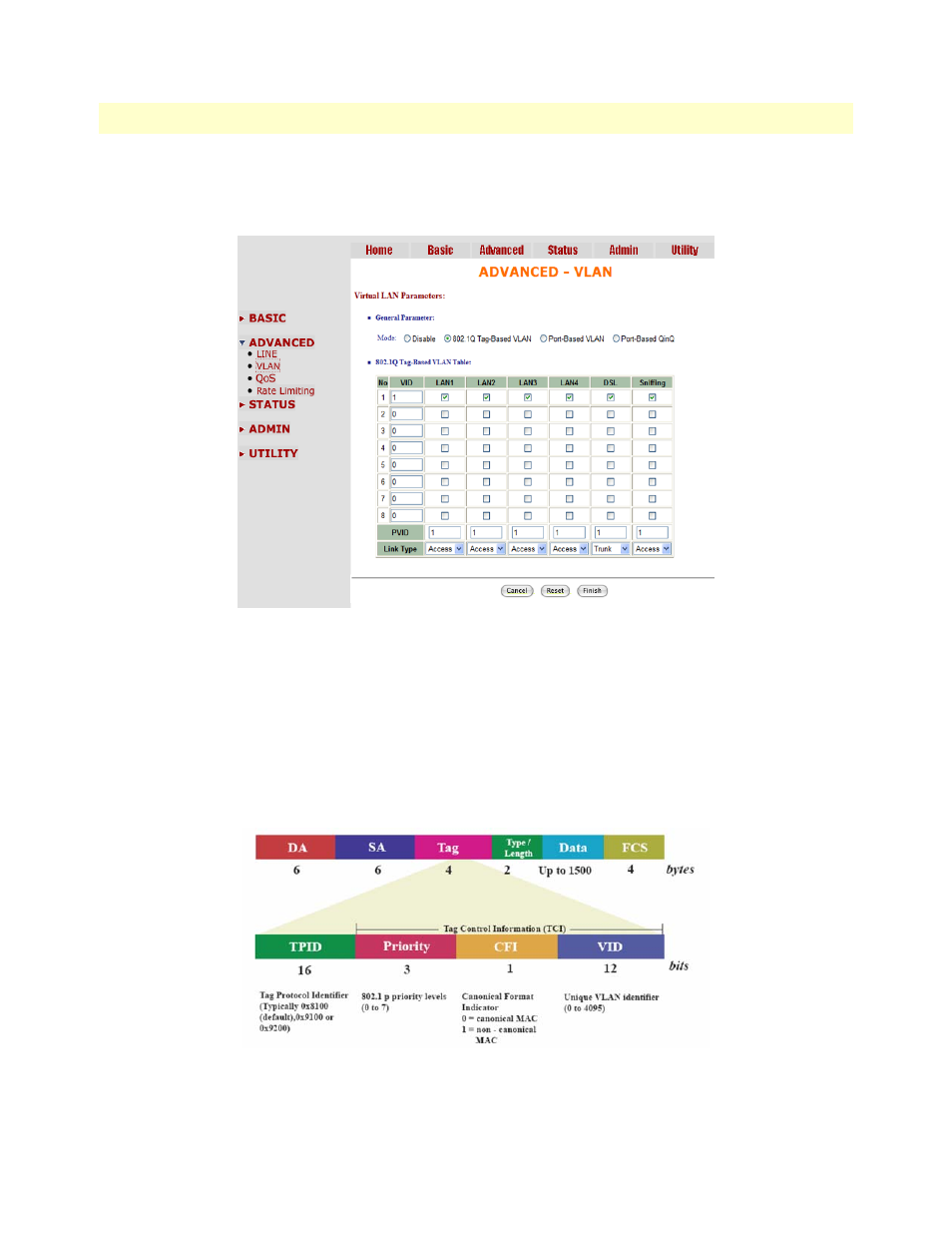

Figure 16. 802.1Q Tag-Based VLAN page

VID (Virtual LAN ID): A number to identify the VLAN segment. Select from 1 to 4094.

PVID (Port VID): The default Virtual LAN ID for a port. Select from 1 to 4094.

Link Type: Select from Access or Trunk. Access means the port will not add more VLAN tags. Trunk
means that the port may add VLAN tags based on PVID settings.

Sniffing: Allows inbound management via Telnet or HTTP.

Tag-Based VLAN Overview.

Figure 17

shows the breakdown of the VLAN tag field.

Figure 17. VLAN tag field
