Model 3202 front panel 19
Model 3202 Getting Started Guide 1 • General information
Model 3202 front panel
LED descriptions
The front panel LEDs display the status of the power, system, Ethernet ports, and Line port. Figure 2 shows
the front panel LED indicators and table 2 provides a description of the LED indicators’ behavior.

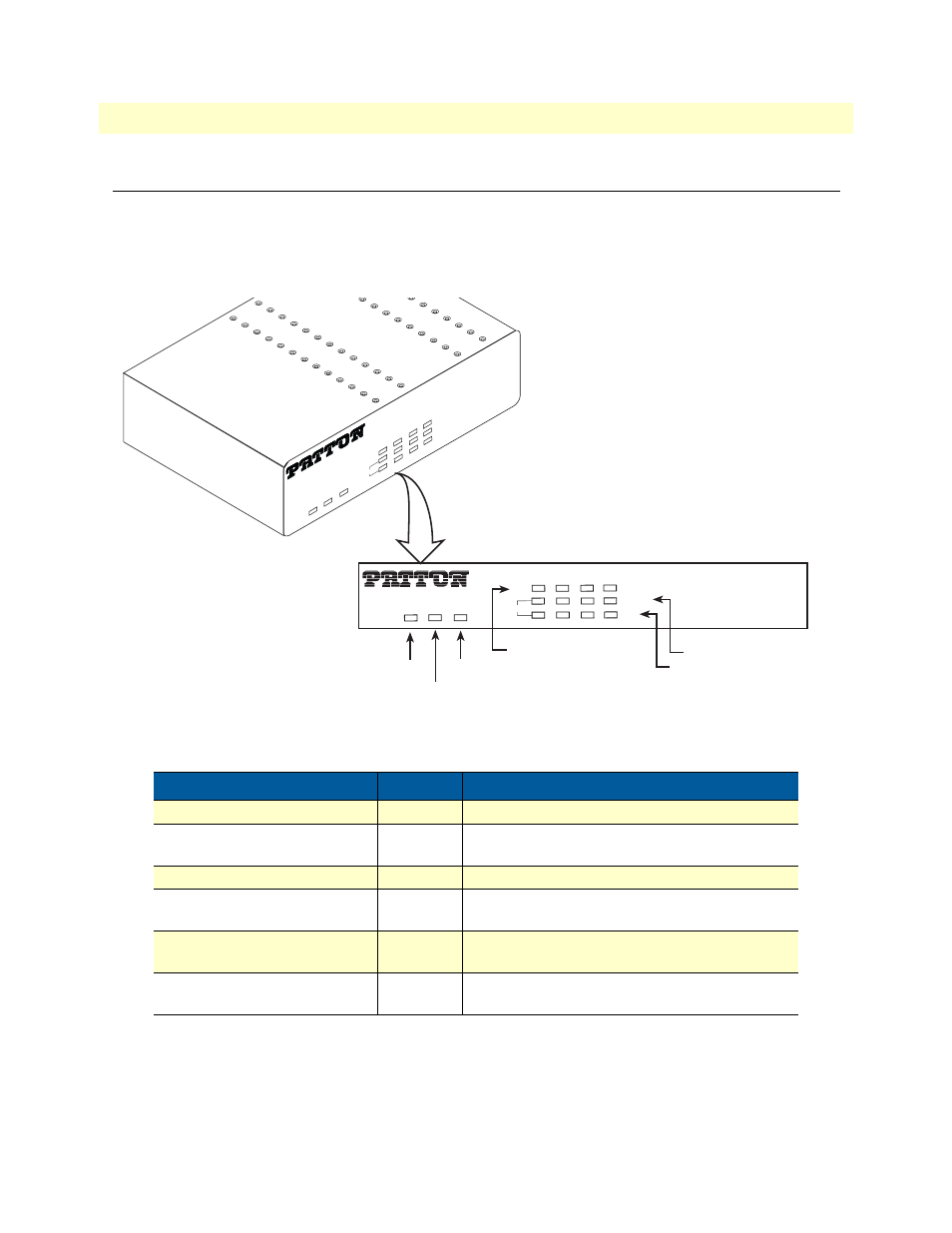

Figure 2. Model 3202 front panel LEDs
Table 2. Front panel LEDs
LED Condition Description
PWR On Power is applied
ALM On
Blink
DSL LINE connection dropped
DSL LINE self-test
DIAG On Management port is connected
WAN (1-4) LINK On
Blink
DSL LINE is connected
DSL LINE handshake/transmitted/received data
LAN (1-4) LINK/ACT On
Blink
Ethernet is connected
Ethernet link transmitted/received data
LAN (1-4)100M On
Off LAN port is on 100M mode
LAN port is on 10M mode
