13
CONNECTIONS & DIP SW SETTING

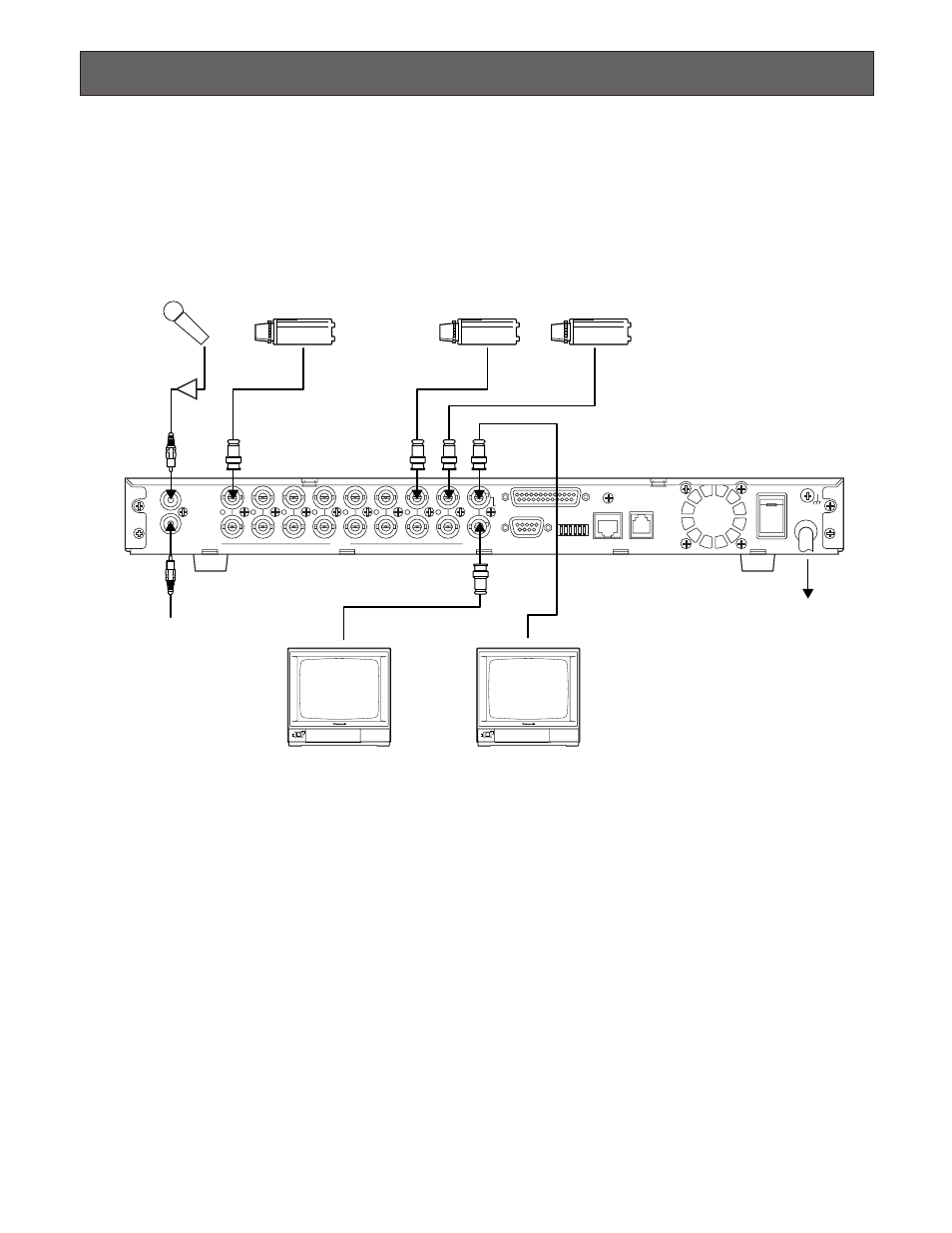

SYSTEM COMPOSITION & CONNECTIONS
Three system compositions are introduced depending on the connecting camera type, and other peripherals.
Ordinary system-cameras are connected while the multi-screen and spot monitors, microphone, and speakers are also con-
nected.
SIGNAL GND
POWER
DATA 10/100BASE-T MODE RS-232C MULTI
SCREEN OUT
SPOT
OUT
1
1
ALARM/REMOTE
OFF
ON
2
2
3
3
4
4
5
5
6
6
7
7
8
8
OUT
VIDEO
OUT
AUDIO
IN
IN
System Cameras System Cameras
AC 120 V 60Hz
Speakers via Amplifier
Multi-screen Monitor Spot Monitor
¥ ¥ ¥
Microphones
Amplifier
