49 Chapter 6: Using the Web-based Utility
The Voice Tab
IP Telephony System
SIT2 Tone. This is an alternative to the Reorder Tone played when an error occurs as a caller makes an outbound
call. The RSC to trigger this tone is configurable on the SIP screen. The default is 914@-16,1371@-16,1777@-
16;20(.274/0/1,.274/0/2,.380/0/3,0/4/0).
SIT3 Tone. This is an alternative to the Reorder Tone played when an error occurs as a caller makes an outbound
call. The RSC to trigger this tone is configurable on the SIP screen. The default is 914@-16,1371@-16,1777@-
16;20(.380/0/1,.380/0/2,.380/0/3,0/4/0).
SIT4 Tone. This is an alternative to the Reorder Tone played when an error occurs as a caller makes an outbound
call. The RSC to trigger this tone is configurable on the SIP screen. The default is 985@-16,1371@-16,1777@-
16;20(.380/0/1,.274/0/2,.380/0/3,0/4/0).
MWI Dial Tone. This tone is played instead of the Dial Tone when there are unheard messages in the caller’s
mailbox. The default is 350@-19,440@-19;2(.1/.1/1+2);10(*/0/1+2).
Cfwd Dial Tone. This tone is played when all calls are forwarded. The default is 350@-19,440@-19;2(.2/.2/
1+2);10(*/0/1+2).
Holding Tone. This lets the local caller know that the far end has placed the call on hold. The default is 600@-
19*(.1/.1/1,.1/.1/1,.1/9.5/1).
Conference Tone. This is played to all parties when a three-way conference call is in progress. The default is
350@-19;20(.1/.1/1,.1/9.7/1).
Secure Call Indication Tone. This is played when a call has been successfully switched to secure mode. It
should be played only for a short while, less than 30 seconds, and at a reduced level, less than -19 dBm, so it will
not interfere with the conversation. The default is 397@-19,507@-19;15(0/2/0,.2/.1/1,.1/2.1/2).
Feature Invocation Tone. This is played when a feature is implemented. The default is 350@-16;*(.1/.1/1).
Distinctive Ring Patterns
Ring1 Cadence. This is the cadence script for distinctive ring 1. The default is 60(2/4).
Ring2 Cadence. This is the cadence script for distinctive ring 2. The default is 60(.3/.2,1/.2,.3/4).
Ring3 Cadence. This is the cadence script for distinctive ring 3. The default is 60(.8/.4,.8/4).
Ring4 Cadence. This is the cadence script for distinctive ring 4. The default is 60(.4/.2,.3/.2,.8/4).
Ring5 Cadence. This is the cadence script for distinctive ring 5. The default is 60(.2/.2,.2/.2,.2/.2,1/4).

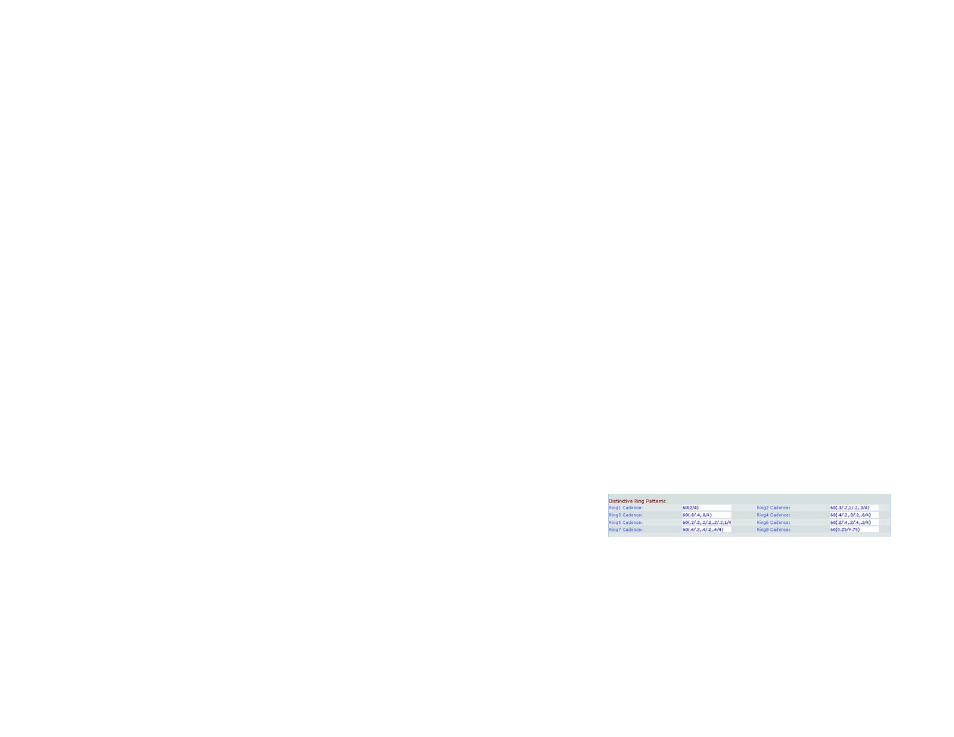

Figure 6-27: Voice - Regional Screen - Distinctive Ring
Patterns
