25 Chapter 6: Using the Web-based Utility
The Router Tab
IP Telephony System
The Router Tab
The Router - Status Screen
This screen displays product and system information.
Product Information
Product Name. Shown here is the model number of the System.
Serial Number. Shown here is the serial number of the System.
Software Version. Shown here is the version number of the System software.
Hardware Version. Shown here is the version number of the System hardware.
MAC Address. Shown here is the MAC address of the System.
Client Certificate. Shown here is the status of the client certificate. It authenticates the System for use in the
ITSP’s network.
Licenses. This indicates how many additional licenses you have acquired for the System.
System Status
Current Time. Displayed here is the current date and time of the System.
Elapsed Time. Displayed here is the amount of time elapsed since the last reboot of the System.
WAN Connection Type. Displayed here is the Internet connection type of the System.
Current IP. Displayed here is the Internet IP address of the System.
Host Name. Displayed here is the host name of the System.
Domain. Displayed here is the domain name of the System.
Current Netmask. Displayed here is the netmask or subnet mask of the System.
Current Gateway. Displayed here is the IP address of the gateway.
Primary DNS. Displayed here is the IP address of the primary DNS server.

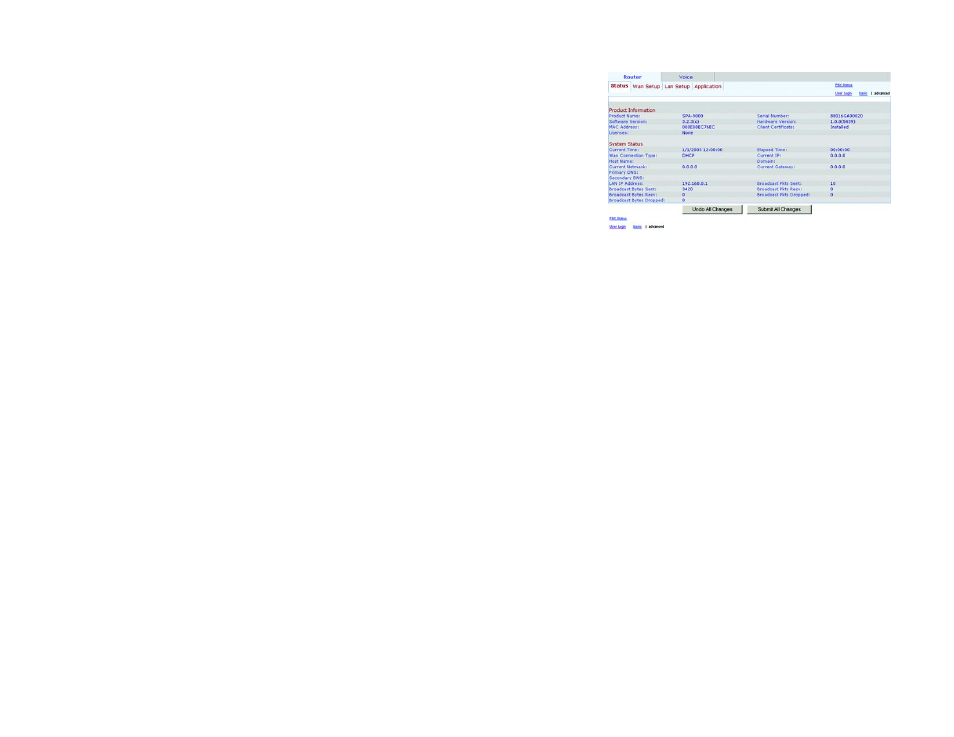

Figure 6-4: Router - Status Screen
subnet mask: an address code that
determines the size of the network.
gateway: a device that forwards Internet
traffic from your local area network.
mac address: the unique address that a
manufacturer assigns to each networking device.
ip (internet protocol): a protocol
used to send data over a network.
ip address: the address used to identify
a computer or device on a network.
