Locating connectors on the rear of your computer
Figure 50 “Rear connector locations” on page 117 shows the locations of the connectors on the rear of
your computer. Some connectors on the rear of your computer are color-coded to help you determine
where to connect the cables on your computer.

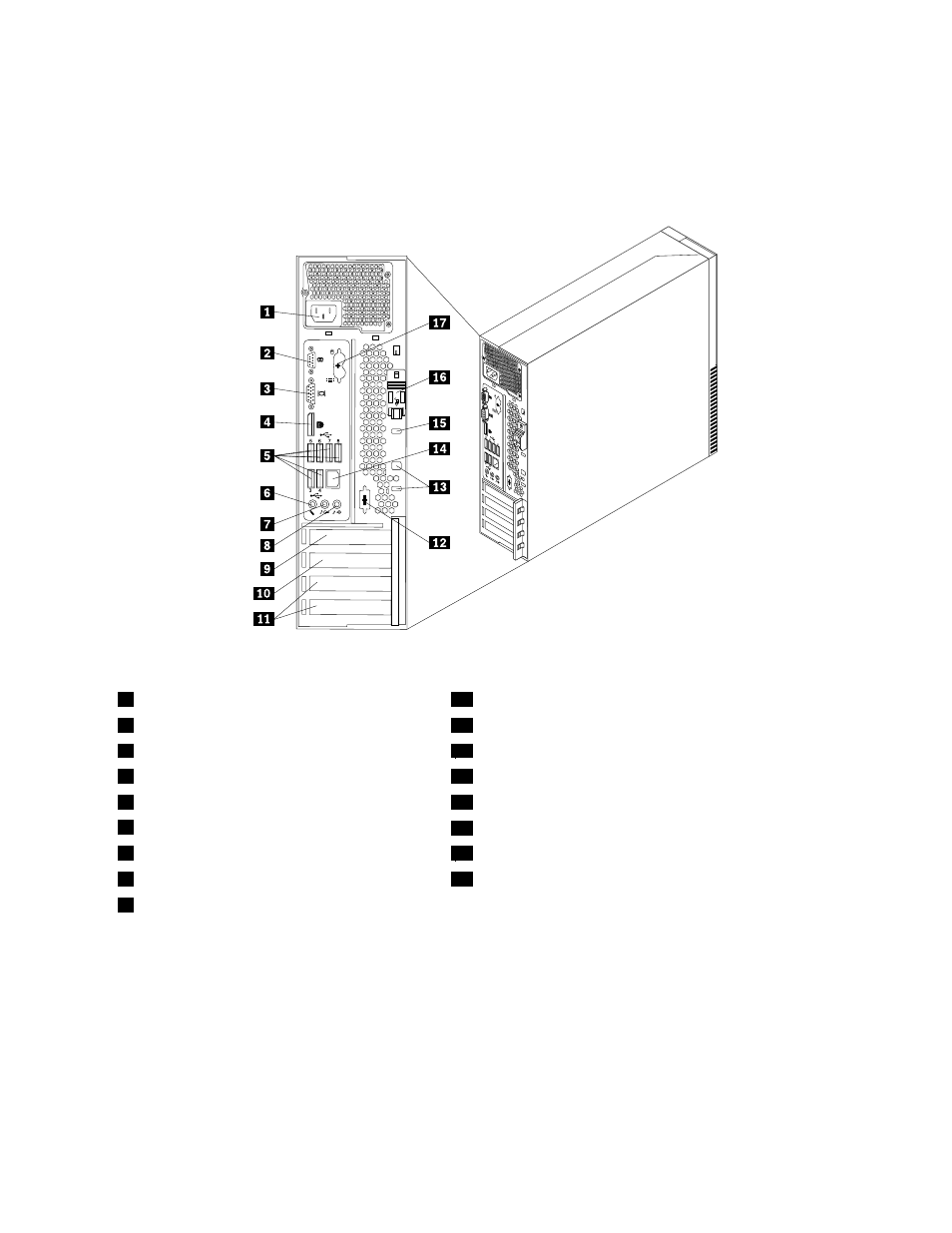

Figure 50. Rear connector locations
1
Power cord connector
10
PCI Express x1 card slot
2
Serial port (Serial port 1)
11
PCI card slots
3
VGA monitor connector
12
Optional serial port (Serial port 2)
4
DisplayPort connector
13
Cable lock slots (2)
5
USB connectors (USB ports 3 to 8)
14
Ethernet connector
6
Microphone connector
15
Integrated cable lock (Kingston lock) slot
7
Audio line-out connector
16
Cover-release button
8
Audio line-in connector
17
PS/2 keyboard and mouse connectors (optional)
9
PCI Express x16 graphics card slot
Chapter 9
.
Replacing FRUs (Machine Types: 4466, 4471, 4474, 4477, 4480, 4485, 4496, 4498, 4503, 4512, 4514,
4518, 4554, 7005, 7023, 7033, 7035, 7072, 7079, and 7177.)
117
