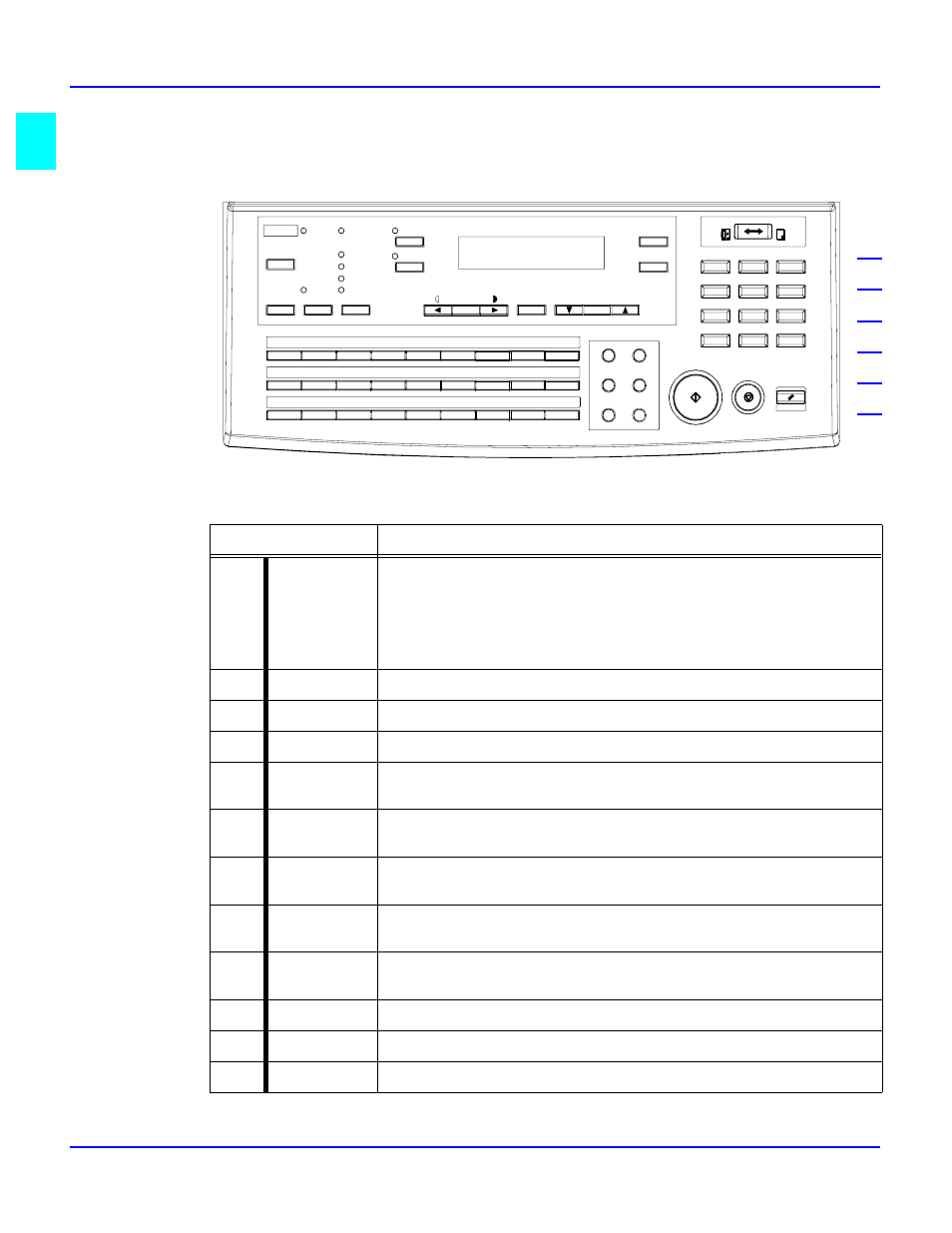

LED’s on the Control Panel
1 - 8
About the Machine
LED’s on the Control Panel
LED
Functions
A
Ready
Copy screen: Lights green when the copy can be start or the scan
is available. Lights orange when the copy cannot be started or the
scan is not available.
Fax screen: Lights green when the transmission or reception
operation is available. Lights orange when the transmission
reservation is not available.
B
Copy
Lights in Copy screen.
C
Fax
Lights in Fax screen.
D
2in1 copy
Lights when 2 in1 Copy screen is selected.
E
Sort copy
Lights when Sort Copy screen is selected.
When ADF is not installed, LED is always off.
F
Standard
Lights when the document for transmission is scanned at standard
resolution.
G
Fine
Lights when the document for transmission is scanned at fine
resolution.
H
Super Fine
Lights when the document for transmission is scanned at super
fine resolution.
I
Half Tone
Lights when the document for transmission is scanned in half tone
mode.
J
Memory TX
Lights when memory TX is selected.
K
Auto RX
Lights when auto RX is selected.
L
PC
Blinks when the machine receives data from PC and prints PC data.
Paper
PC
Error
04
03
02
01
19
S
T
20
10
J
A
K
11
B
U
21
V
22
L
12
C
M
13
D
Memory TX
Confirm
Utility
Half Tone
Resolution
Super Fine
Standard
Fine
08
06
07
05
23
W
X
24
14
N
E
O
15
F
Y
25
Z
26
P
16
G
Q
17
H
Sort
Auto RX
2IN1
WXYZ
Panel Reset
Yes
No
09
&
27
R
18
I
Zoom
Space
Delete
C
*
0
#
Start
Stop
PQRS
GHI
4
7
1
6
5
OPER
8
9
TUV
2
JKL
3
ABC
Fax
Copy
MNO
DEF
Speed Dial Funtion
Phone Book Pause
Redial/
Book TX Speaker
Auto/
