NovaJet 800 Series Service Manual
Assembly\Disassembly 5-59
assembly.
WIRE
TIE
WRAPS

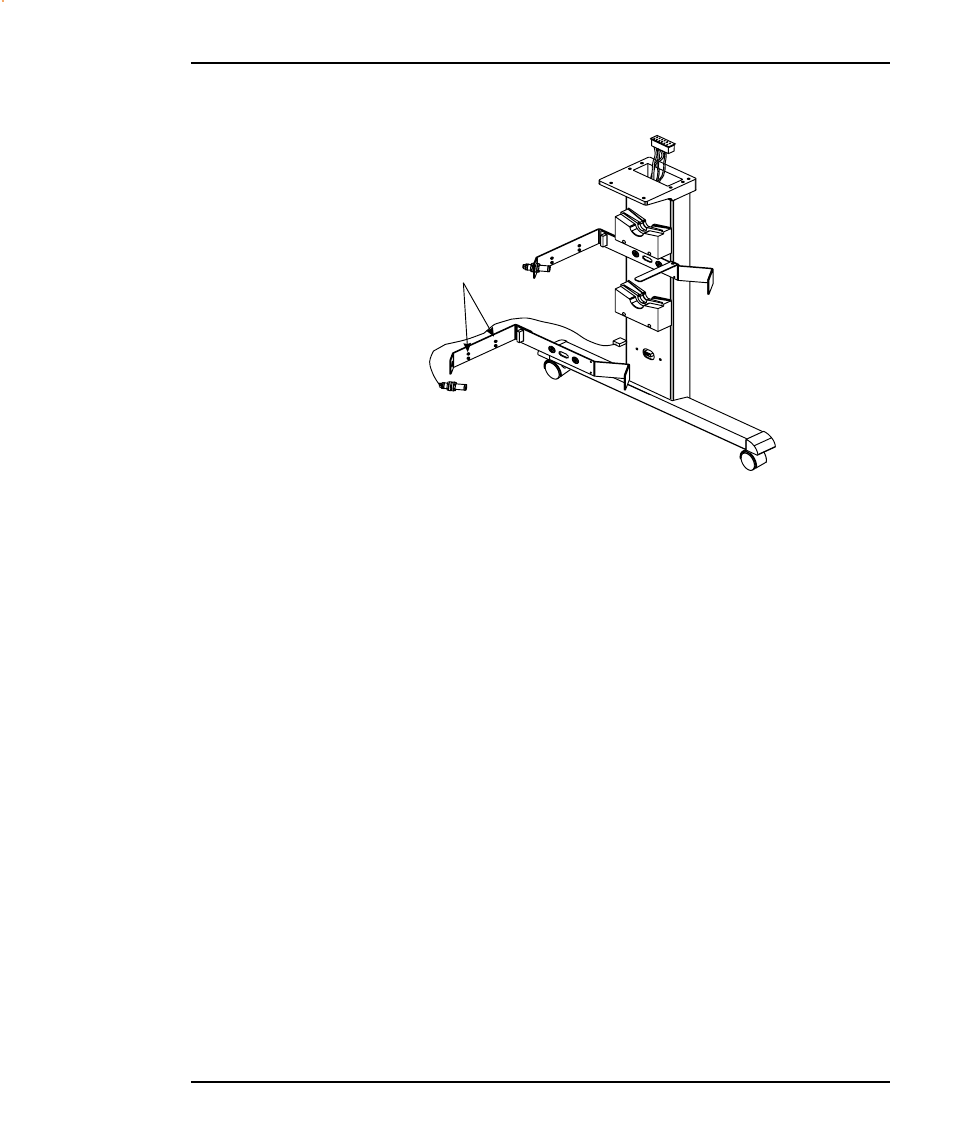

Figure 5-32. Media Take-Up and Feed Sensor Removal.
Install the Media Take-Up and Feed Sensor Brackets and Sensors
1. Install the two screws securing the bracket to the leg assembly.
2. Insert the sensor into the hole on the sensor bracket, secure by
screwing on the plastic nut onto the front of the sensor.
3. Route the sensor wires to the back of the bracket and secure the
wires using two wire tie wraps.
4. Bringing the wire from under the bracket, attach the wire connector to
the leg harness plug. Push connector in until firmly seated.
