Assembly\Disassembly 5-4
NovaJet 800 Series Service Manual
8.
Disconnect the Display data ribbon cable connector at the J10 location
on the Main PWA.
To remove the Left Cover Assembly:
1.
Disconnect and remove all ink reservoirs.

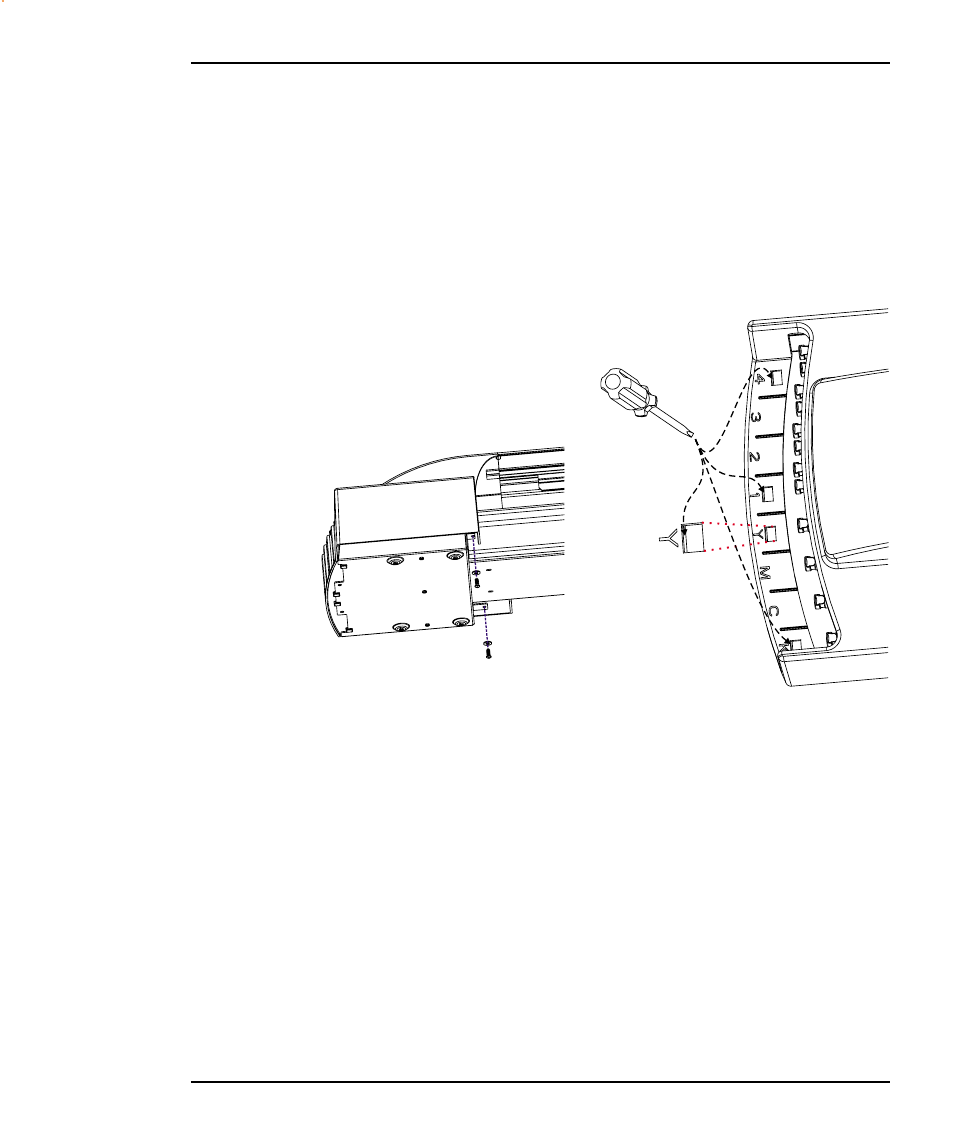

Figure 5-2. Left Cover Removal/Installation.
2.
Remove the two screws securing the Left Cover to the Left Frame. See
the upper portion of Figure 5-2.
3.
Reach under the Support Bracket and depress and hold the retracting
stop assembly that secures the Left Cover to the Support Bracket.
4.
Insert the tip of a flathead screwdriver into the gap between theLeft
Cover and the Left Frame as shown in the lower portion of Figure 5-2
and twist. Insert and twist into as many gaps as necessary to loosen
the cover from the frame.
5.
Carefully lift the Left Cover up and off the printer.
