Install the e-connect network assembly – Kodak 800 SERIES User Manual
Page 211
NovaJet 800 Series Service Manual
Assembly\Disassembly
5-7

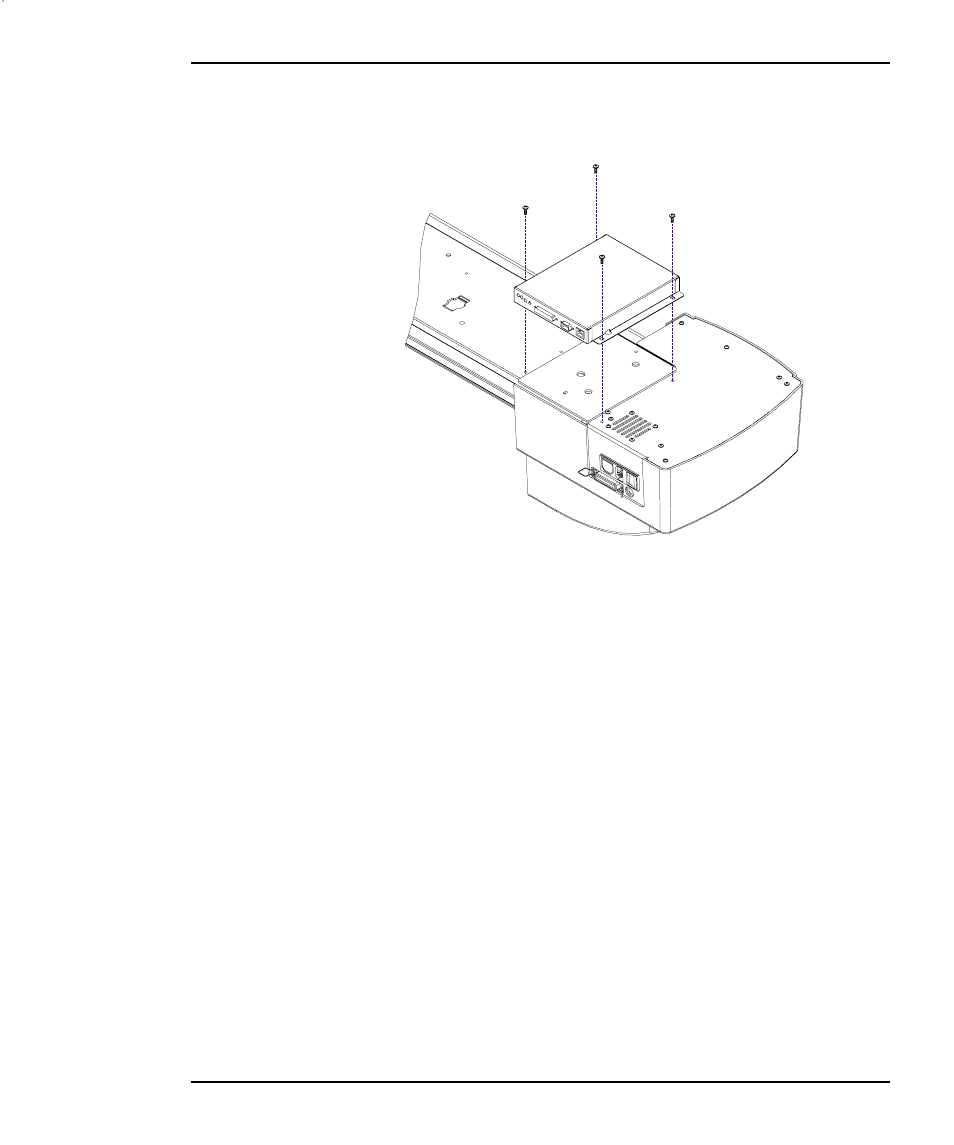

Figure 5-3. E-Connect Assembly Installation/Removal.
3.
Put on an ESD wrist strap.
4.
Slowly lower the E-Connector Assembly until you can disconnect the
power cable from the connection located near the center of the circuit
board.
Install the E-Connect Network Assembly
1.
Connect the power cable to the connection located near the center of
the circuit board.
2.
Hold the E-Connect Assembly in place and secure using 4 screws.
Torque to 15 in-lbs
3.
Connect the small parallel cable and the network cable to the rear of
the E-Connect Assembly.
