Troubleshooting 4-45
NovaJet 800 Series Service Manual
multiple sets of vertical bars appear along the right edge of the
print, usually containing CMYK colors. The image may also be
‘pushed’ slightly to the left side of the printing area. Refer to
Disassembly.

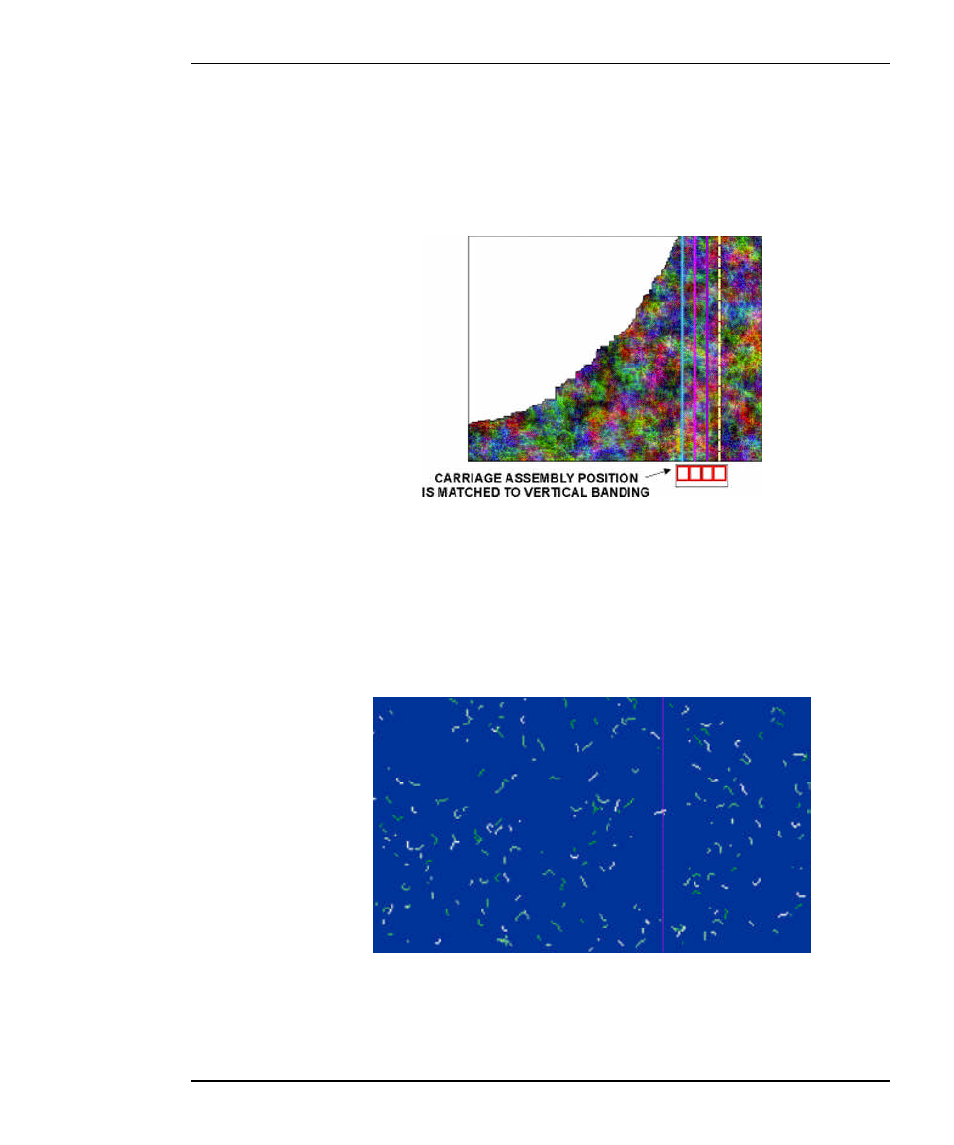

Figure 4-47. Dirty Encoder Strip.
4. Clean and/or replace encoder strip for image skewing (image
walking or skipping). Typically characterized as horizontal
banding, often a walking image can also create vertical bands
to appear in the print. Refer to ‘Routine Maintenance’ for
cleaning or ‘Disassembly’ for encoder strip replacement.
Figure 4-48. Defective Teflon Strip.
