Figure 5 master reference subwoofer remote control – Krell Industries MASTER REFERENCE SUBWOOFER User Manual
Page 31
continued
ᮣ
25
Power
26 Power Key
Operation Keys
27 CAST Key
28 Phase Key
29 Preset Key
30 Thtr (Theater) Key
31 Save Key
32 Unit Key
33 All Key
34 Mute Key
Filter Selection Keys
35 Section Sub Key
36 Section High Key
Menu Keys
37 Menu Key
38 Enter Key
Filter Parameter Keys
39 Type Key
40 Slope Key
41 Freq(uency) Key
42 Level Key
Level Adjust Keys
43 Adjust Up and Down Keys

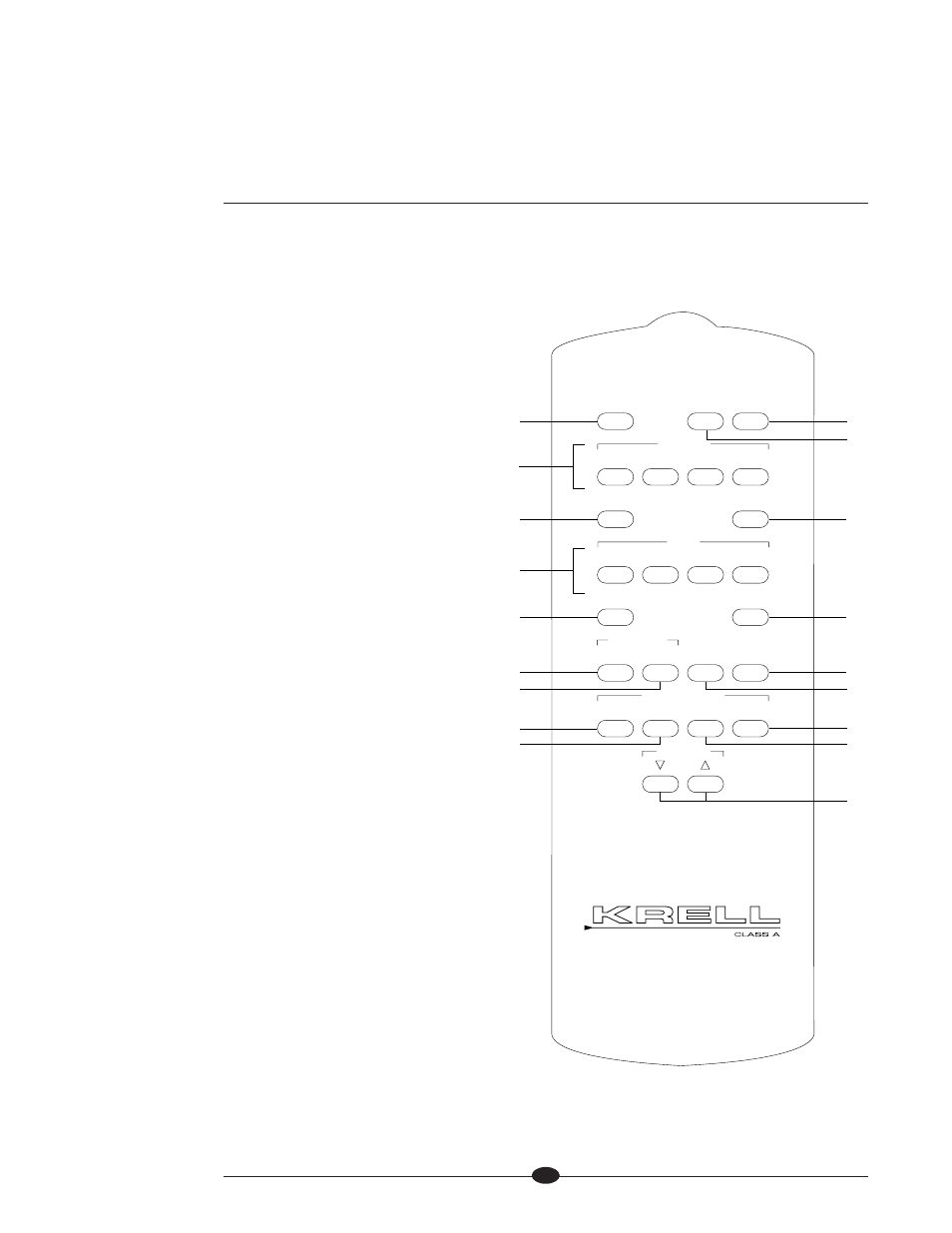

Figure 5 Master Reference Subwoofer Remote Control
