SECTION
THREE
Features
This section provides illustrations of the Master Reference Subwoofer front panel,
back panel, and remote control, and descriptions of front panel, back panel, and
remote control features.
Front Panel Description
See Figure 2.
The Master Reference Subwoofer front panel provides power on and subwoofer
status displays. Front panel features and their descriptions follow.

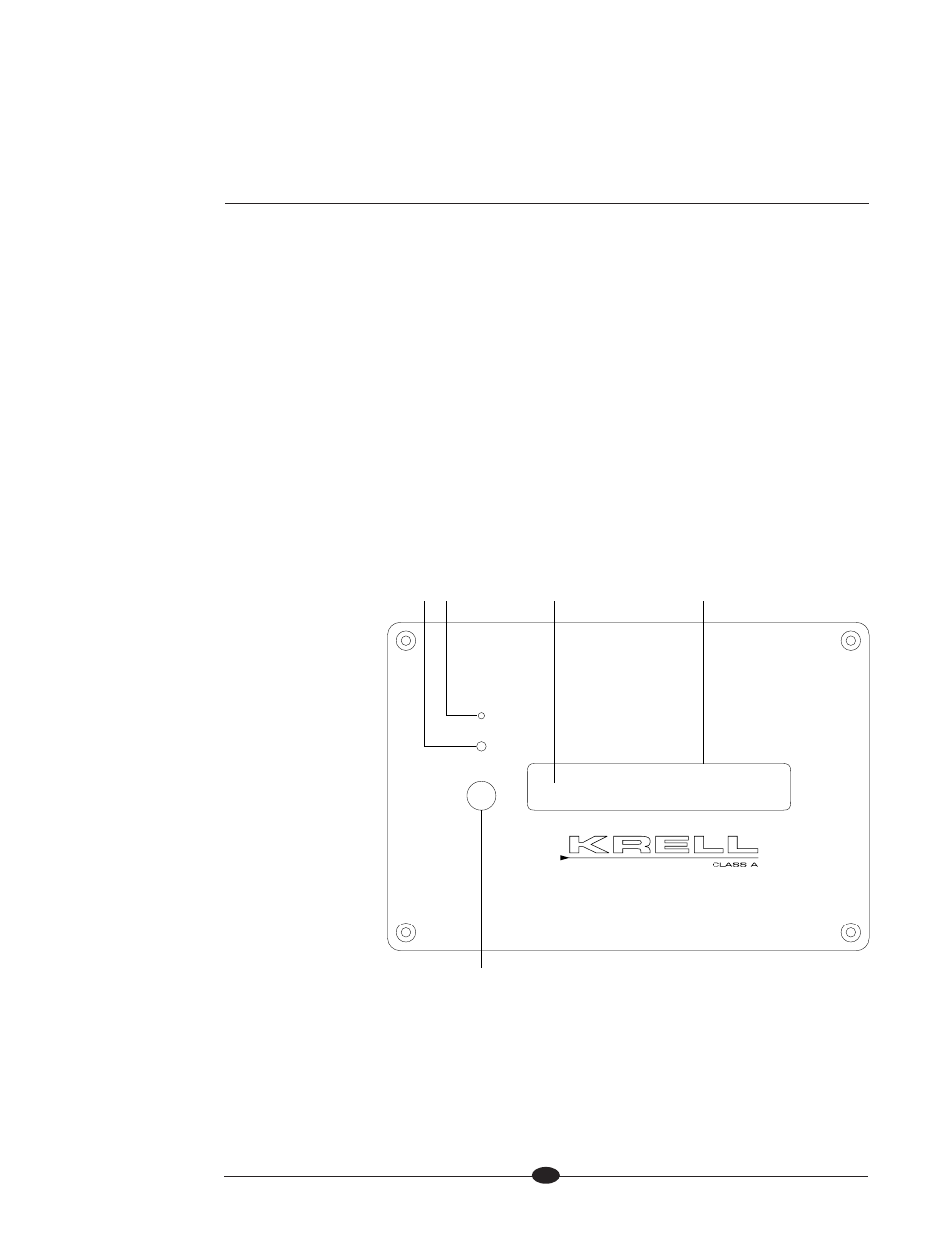

Figure 2 Master Reference Subwoofer Front Panel
1 Power Button
2 Power LED
3 Stand-by LED
4 Front Panel Display
5 Infrared Sensor
STAND-BY
POWER
Master Reference Subwoofer
2 3 5 4
1
