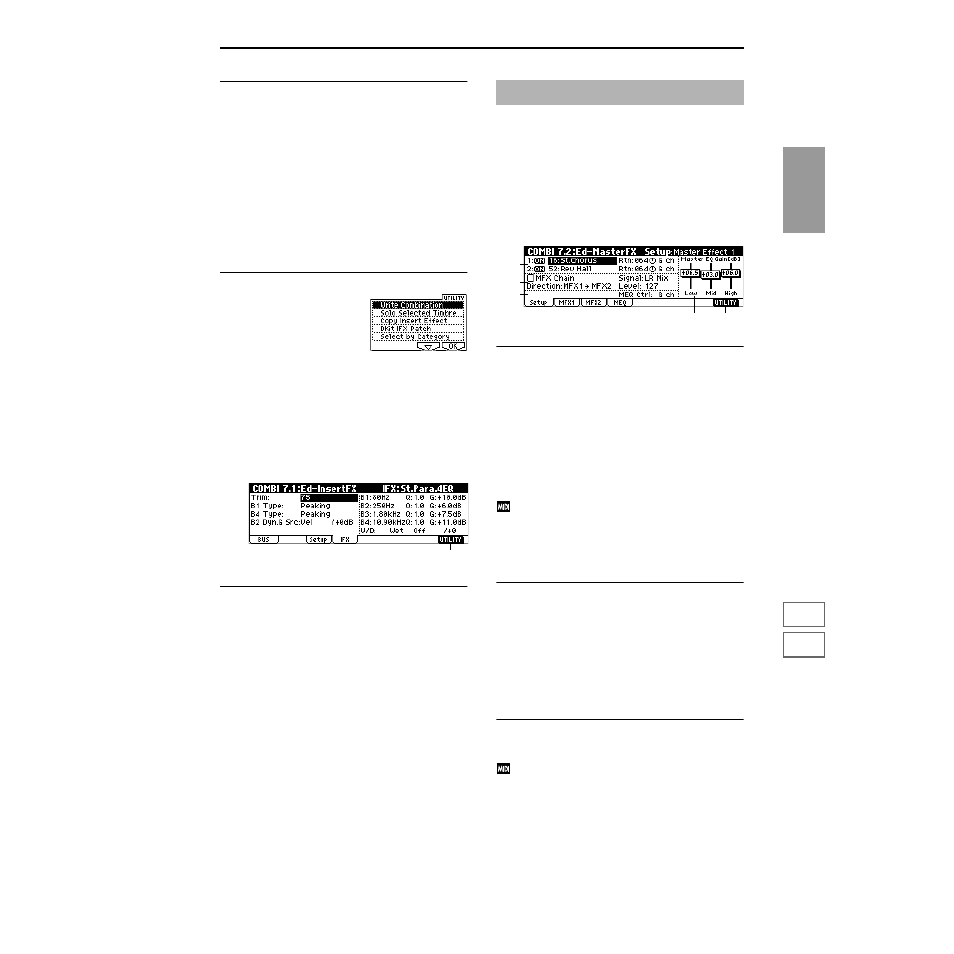

7.1–2c: Routing Map, BUS Select
This displays the bus to which the programs used by tim-
bres 1–8 will be sent.
Routing Map
This displays the insert effect settings. The routing, the spec-
ified effect name, and the on/off status are shown.
T01...8: BUS Sel [DKit, L/R, IFX, 1, 2, 1/2, Off]
While viewing the map, you can specify the bus where each
timbre 1–8 will be sent.
Use the cursor keys to select the timbre, and use the [INC]/
[DEC] keys or the [VALUE] dial to set “BUS Select” (7.1–1a).
These settings can also be made in “BUS Select” (7.1–1a).
■ 7.1–2d: UTILITY
☞ “Write Combination,” “Solo Selected Timbre” (1.1–1c),
“Copy Insert Effect” (PROG 7.1–1c, 7.1–1b), “Dkit IFX
Patch” (7.1–1b), “Select by Category” (PROG 7.1–2c)
7.1–3: IFX (Insert Effect)
Here you can adjust the parameters for the IFX that was
selected in the Setup page (☞p.164–).
■ 7.1–3a: UTILITY
☞ “Write Combination” (1.1–1c)
☞ For details on master effects, refer to p.155 “7. Effect
Guide.”
7.2–1: Setup
Here you can select the type of each master effect, turn it
on/off, and make chain and master EQ settings.
With the exception of “MFX1 Control Ch,” “MFX2 Control
Ch,” and “MEQ Control Ch,” this is the same as in Program
mode. (☞PROG 7.2: Ed-MasterFX)
7.2–1a: MasterFX Setup
MFX1 On/Off, MFX2 On/Off [Off, ON]
Master Effect 1, 2 [00...89: name]
Rtn 1, 2 (Return 1, 2) [000...127]
These are the same as in Program mode. Refer to “PROG
7.2–1: Setup.” However, the master effects will be controlled
on the “MFX 1, 2 Control Ch” MIDI channel, unlike in Pro-
gram mode.
The control changes used are the same as in Program mode.
MFX 1, 2 Control Ch [Ch01...16, G ch]
Selects the MIDI channel that will control dynamic
modulation (Dmod) for the master effects.
G ch : The global MIDI channel “MIDI Channel” (GLOBAL
2.1–1a) will be used for control. Normally you will set this
parameter to G ch.
7.2–1b: MasterFX Chain
MFX Chain [Off, On]
Direction (Chain Direction)
[MFX1 → MFX2, MFX2 → MFX1]
Signal (Chain Signal) [LR Mix, L Only, R Only]
Level (Chain Level) [000...127]
These are the same as in Program mode. (☞PROG 7.2–1:
Setup)
7.2–1c: MEQ Ctrl
MEQ Ctrl (MEQ Control Ch) [Ch01...16, G ch]
Selects the MIDI channel that will control dynamic
modulation (Dmod) for the master EQ.
G ch : The global MIDI channel “MIDI Channel” (GLOBAL
2.1–1a) will be used for control. Normally you will set this
parameter to G ch.
