162
4. Controlling the Master Effects via
MIDI
You can use the Dynamic Modulation (Dmod) function to
control all Master Effects parameters in real-time from this
instrument’s controllers or from an external MIDI sequencer.
In Program mode, the parameters are controlled on global
MIDI channel “MIDI Channel” (GLOBAL 2.1–1a).
In Combination mode, and Sequencer mode, you can set
the control channels for MFX1 and MFX2 using the Setup
page “Control Channel” parameters of the “MFX1–2” tabs.
Select the desired option from Ch01–16, and Gch.
Ch01–16: Select this option if you wish to control the param-
eters for each Master Effect on different channels.
Gch:
Select this option if you wish to control the parameters
on global MIDI channel “MIDI Channel” (GLOBAL 2.1–1a).
This is the normal setting.
The Master EQ (stereo, three-band EQ) is located right
before AUDIO OUTPUT (MAIN) L/MONO, R. Low and
High EQs are of the shelving type, and Mid EQ is a peaking
type equalizer. You can control the Low Gain and High Gain
parameters using the Dynamic Modulation function.
The Master EQ (stereo, three-band EQ) is applied to the sig-
nal input from the L/R bus. For more information on the
parameters, p.209.
The TRITON Le is equipped with two individual AUDIO
OUTPUTs (INDIVIDUALs). You can route the oscillator
(Program), timbre (Combination), and track (Sequencer)
output or the post-IFX signals to these two individual out-
puts.
Use “BUS Select” (7.1–1a) in Program, Combination, or
Sequencer mode to route the oscillators (Program), timbres
(Combination), or tracks (Sequencer) to AUDIO OUTPUTs
(INDIVIDUAL).
If you are using the Insert Effects, use “BUS Select” of the
7.1: Ed–InsertFX (or Insert FX), and Setup page to route the
post-IFX signals.
1, 2: Monaural signals are routed to AUDIO OUTPUTs
(INDIVIDUAL).
1/2: Stereo signals are routed to AUDIO OUTPUTs (INDI-
VIDUAL).
Program mode
Master EQ
Individual Outputs
Pan
Oscillator 1
Send1
Select from:
L/R
IFX
1
2
1/2
Off IFX BUS IFX
MFX2
MFX1 mono
mono
Return1 / 2
Master EQ AUDIO OUTPUT
(MAIN) L/MONO, R
BUS Select
= L/R
Oscillator 2
IFX / Indiv.Out
BUS Select
Insert Effect
Post IFX
Pan(CC#8)
BUS Select
Select from:
L/R
1
2
1/2
Off
Send2
stereo
Master Effects
AUDIO OUTPUT
(INDIVIDUAL)1/2
L/R BUS
stereo
mono x2 mono x 2
BUS Select
= IFX
stereo
stereo
Chain

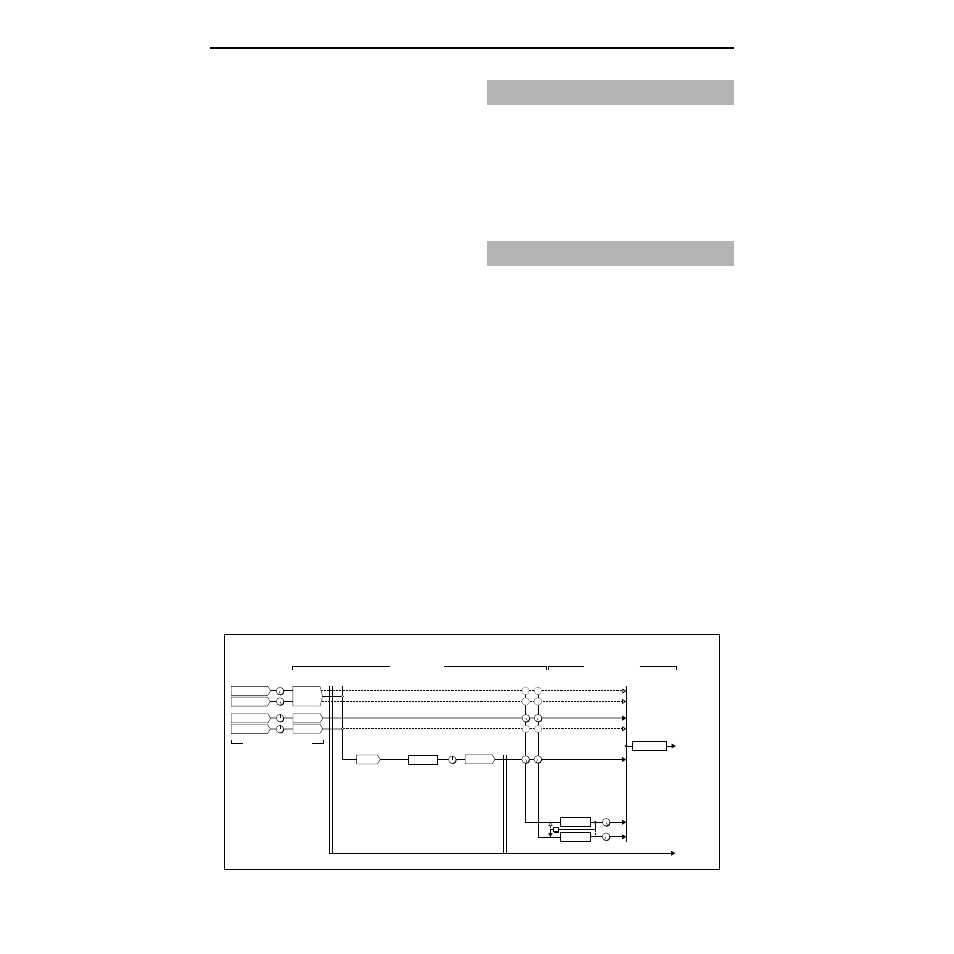

Effect / Mixer Block Diagram in Program Mode
PROG 7.1: Insert Effect
Post IFX
Send1 / 2
PROG 7.2: Master Effect
AUDIO INPUT 1
AUDIO INPUT 2
BUS Select
= L/R
BUS Select
= IFX
GLOBAL 1.1: System Audio In* 1
(Input1,2)
GLOBAL 1.1: System Audio In* 1
(Send1,2 on Input1, 2)
*1: Sold separately EXB-SMPL option is installed
