155
Ef
fect

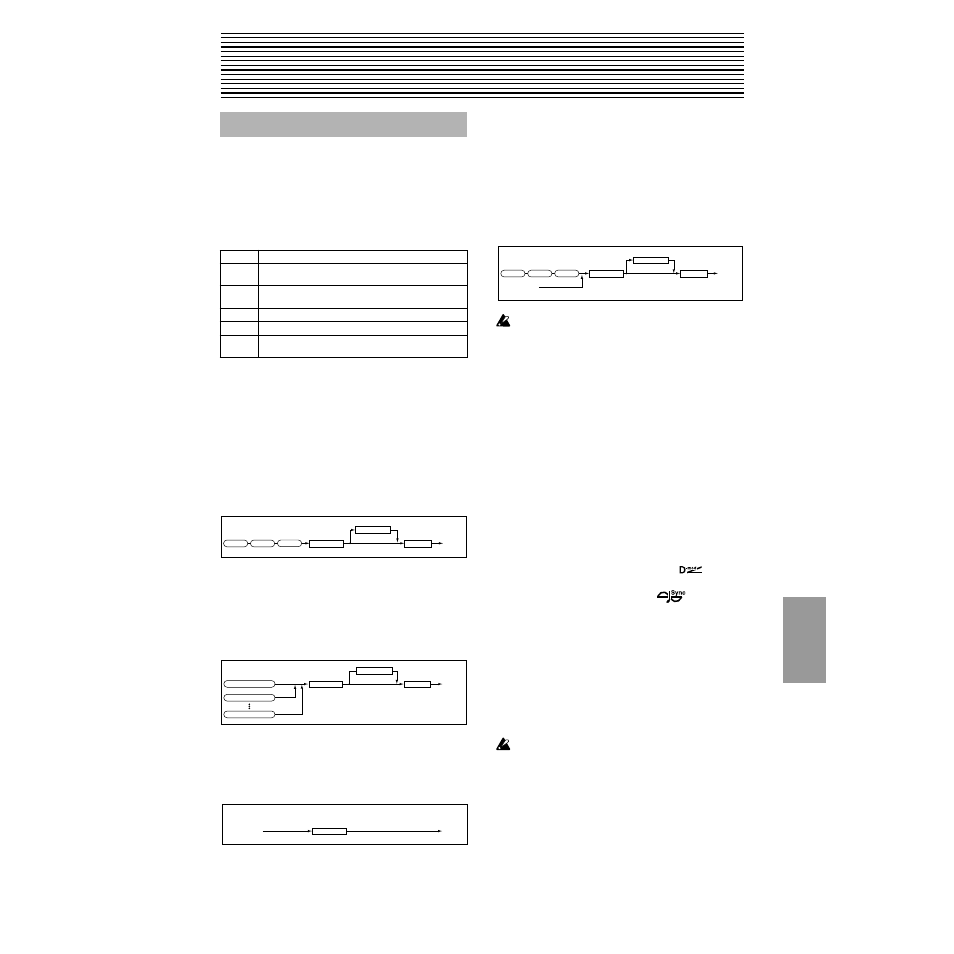

7. Effect Guide
The effects section of TRITON Le consists of a single channel
Insert Effect
, two-channel Master Effects, a single-channel
Master EQ (stereo, three-band EQ) and a Mixer section that
controls the effect routings.
The insert effect and master effects can be chosen from 89
types of full-digital effect, grouped into the categories listed
below.
Classification of 89 effects
1. Effects in each mode
In Program mode, you can process sounds using Insert
Effect
. This is something like processing an oscillator (OSC)
output sound using a filter and an amplifier. Then, you can
apply a modulation and reverb effect or other Master Effect)
to the processed sound to add ambience and space. Finally,
before the sound is output from the OUTPUT (MAIN) L/
MONO, and R connectors, you can fine-tune the tonal qual-
ity using the stereo, three-band Master EQ. You can adjust
these settings for each Program individually.
In Combination mode and Sequencer mode, you may pro-
cess Program sounds for each timbre and track using the
Insert Effect
, add ambience and space to the entire sound
using the Master Effects, and adjust the overall tonal quality
using the Master EQ.
You can make these settings for each Combination in Com-
bination mode, and for each Song in Sequencer mode indi-
vidually.
If the separately sold EXB-SMPL option is installed, an
insert effect
can be applied in Sampling mode to the exter-
nal source that is input for sampling via AUDIO INPUT 1
and 2. To do so, use the SMPL 1.1: Recording, Input/Pref
(SMPL1.1–3) parameters. The settings here are effective only
in Sampling mode.
If the separately sold EXB-SMPL option is installed, the
external source from AUDIO INPUT 1 and 2 is also valid in
modes other than Sampling mode. In Program, Combina-
tion, and Sequencer modes, the insert effect, master effects,
or master EQ can be used on these inputs. Settings for the
external in from AUDIO INPUT 1/2 are made in GLOBAL
1.1: System, Audio In (Setup for COMBI, PROG, SEQ) (GLO-
BAL 1.1–4).
In these modes, the TRITON Le can function as a 2-in 4-out
effect processor for the external input signal from AUDIO
INPUT 1 and 2.
When you apply effects to the external audio signal
from AUDIO INPUT 1 and 2, oscillation may be heard
depending on the effect type and the parameter set-
tings. If this occurs, adjust the input level, output level,
and effect parameters. In particular, please exercise cau-
tion when using high-gain effects.
2. Dynamic modulation (Dmod)
Dynamic modulation (Dmod) is a function that lets you use
the controllers of this instrument or MIDI messages to con-
trol specific effect parameters
*1 , allowing realtime control
while you play.
The BPM/MIDI Sync function
*2 is provided as another way
to control effect parameters. This allows parameters such as
the LFO speed of modulation-type effects or the delay time
of delay-type effects to be synchronized to the tempo of the
arpeggiator.
For details on these two functions, refer to “Dynamic Modu-
lation Source (Dmod)” (☞p.217).
*1 These effect parameters are marked with
(☞p.164–).
*2 The effect parameters marked with support this
function (☞p.168–).
3. Effect I/O
To achieve the best tonal quality, signals sent to the Insert
Effect and the Master Effects should be output at the maxi-
mum level without clipping. Also, use the “W/D” (wet/
dry) parameter for the Insert Effect and the “Output Level”
or “Rtn (Return1, 2)” parameter for the Master Effects to
adjust the effect output level.
This instrument does not have an input level meter that
monitors the input level of the effect. If the input level is
insufficient, the S/N (signal to noise) ratio will
decrease. If the input level is excessive, distortion may
occur.
Overview
00–15 Filters and dynamics effect, such as EQ and compression
16–31 Pitch modulation and phase modulation effects, such as cho-
rus and phaser
32–40 Other modulation and pitch-shifting effects, such as rotary
speaker and pitch shifter
41–51 Early reflection and delay effects
52–57 Reverb effects
58–89 Mono effects and mono chain effects, in which two mono
effects are internally connected in series
Insert Effect Master EQ Oscillator Filter Amplifier
Return Send
OUTPUT
L/MONO, R
Master Effect 1,2
Master EQ
Return Send
OUTPUT
L/MONO, R Timbre 1 / Track 1
Timbre 2 / Track 2
Timbre 8 / Track 16
Insert Effect
Master Effect 1,2
Insert Effect Sample
Recording AUDIO INPUT 1, 2
Insert Effect Master EQ Oscillator Filter Amplifier
Return Send
OUTPUT
L/MONO, R
Master Effect 1,2
AUDIO INPUT 1, 2
