Main Unit Theory of Operation Media Feed Section (magicolor 5430 DL)
2-67
II Comp
osition
/O
p
eration

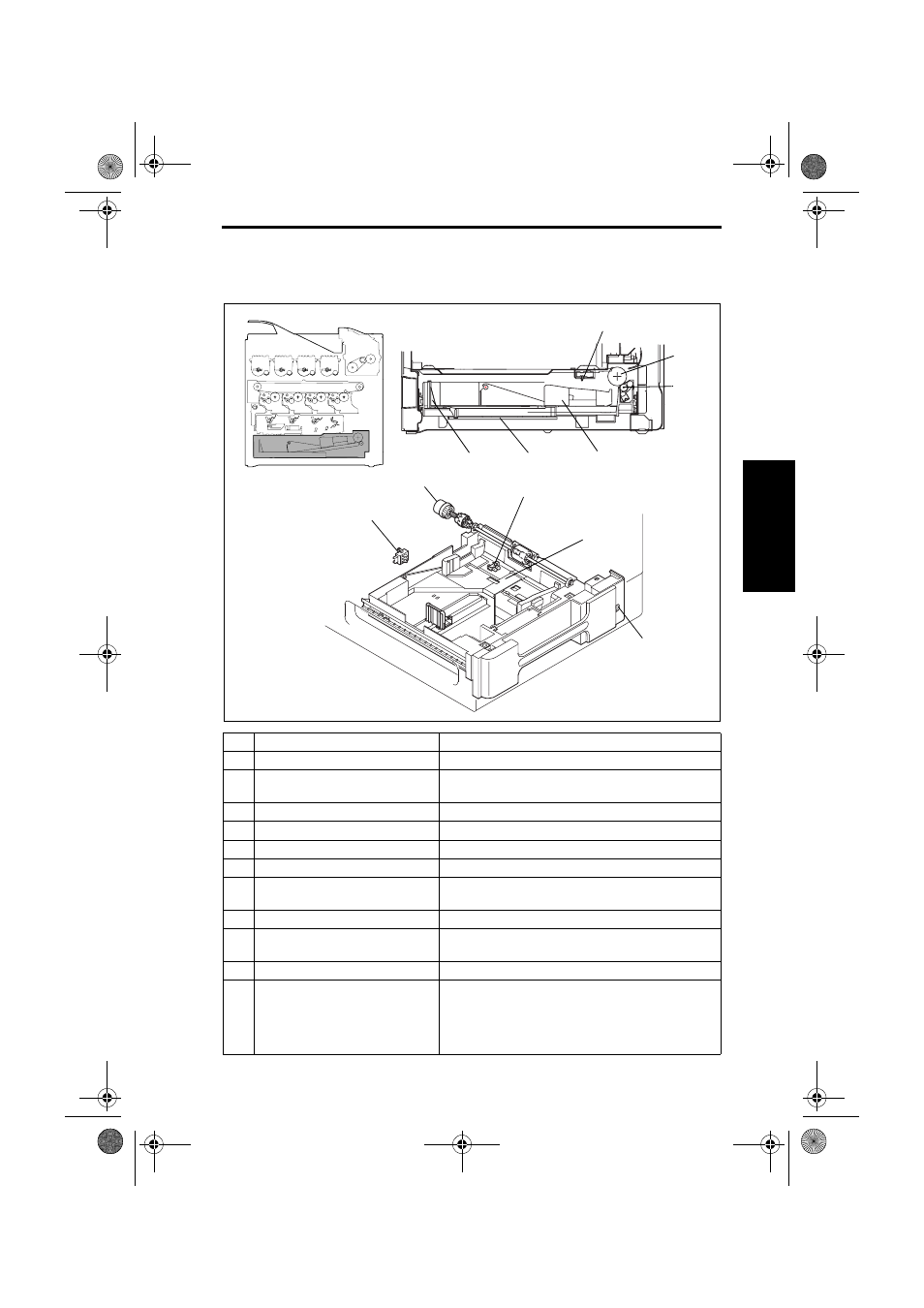

12. Media Feed Section (magicolor 5430 DL)
12.1 Composition
Key Name Function/system
[1] Tray 1 Feed Roller • Takes up and feeds media from Tray 1
[2]
Tray 1 Separation Roller • Separates media in Tray 1
• Small-diameter roller with a torque limiter
[3] Edge Guide Plate • Aligns the edges of the media stack in Tray 1
[4] Size Detection Board • Detects the length of the media loaded in Tray 1
[5] Trailing Edge Guide Plate • Aligns the trailing edges of the media stack in Tray 1
[6] Empty Sensor Actuator • Detects the media level in Tray 1
[7]
Paper Level Indicator Lever • Indicates the level of the media still available for use in
Tray 1
[8] Paper Size Switch (S5) • Detects the media length in Tray 1
[9]
Tray 1 Paper Feed Clutch (CL1) • Transmits drive from the Intermediate Transport Motor
(M3) to the Tray 1 Feed Roller
[10] Tray 1 Paper Empty Sensor (PC1) • Detects the media level in Tray 1
[11]
Paper Lift Plate • Surface on which the media stack is placed in Tray 1
• Maximum media capacity
Plain paper: 250 sheets
Thick stock, OHP film, postcards, and labels: 20 sheets
Envelopes: 10 sheets
