71

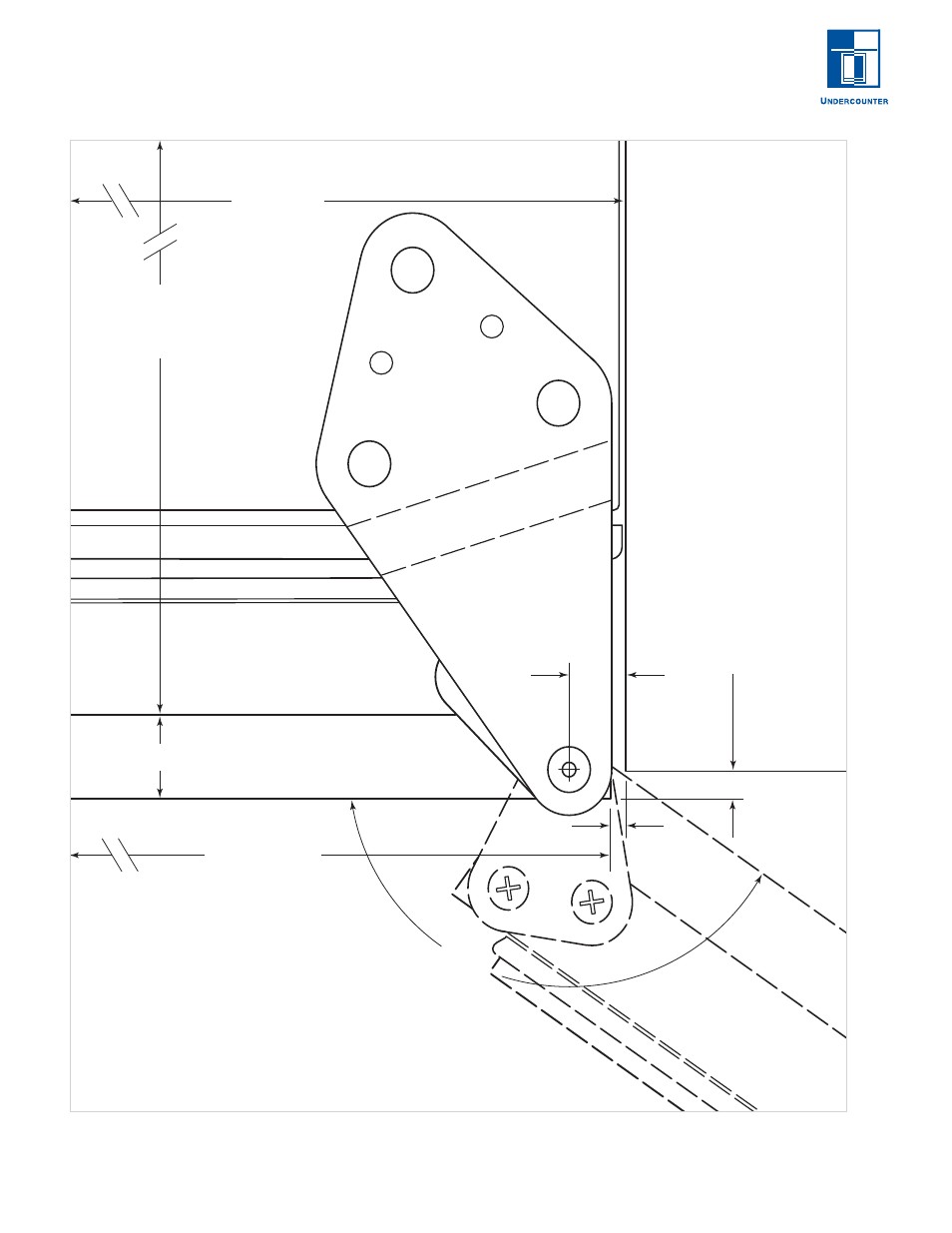

U N D E R C O U N T E R D O O R C L O S E D A N D 1 4 5 ˚ M A X O P E N I N G
DOOR PANEL
SUB-ZERO DOOR
145 ˚ *
587 mm
TO BACK OF
APPLIANCE
* UNDERCOUNTER
UNIT MUST EXTEND
A MINIMUM 6 mm
BEYOND THE FRONT
SURFACE OF
ADJOINING
CABINETRY TO
ALLOW THE MAXIMUM
DOOR SWING
SUB-ZERO
DOOR
DOOR
PANEL
610 mm
CABINETRY
OPENING
600 mm
DOOR PANEL
WIDTH
19 mm
13
mm
6 mm*
3 mm
The full-scale illustration shows what
considerations you need to make for the
installation of the Undercounter unit and how
the maximum door opening may interact
with adjacent cabinets and countertops.
