DOOR PANEL
SUB-ZERO DOOR
145 ˚ *
587 mm
TO BACK OF
APPLIANCE
* MODEL I424 MUST
EXTEND A MINIMUM
6 mm BEYOND THE
FRONT SURFACE OF
ADJOINING
CABINETRY TO
ALLOW THE MAXIMUM
DOOR SWING
SUB-ZERO
DOOR
DOOR
PANEL
610 mm
CABINETRY
OPENING
600 mm
DOOR PANEL
WIDTH
13
mm
6 mm*
3 mm
19 mm
M O D E L I 4 2 4 – D O O R C L O S E D A N D 1 4 5 ˚ M A X O P E N I N G

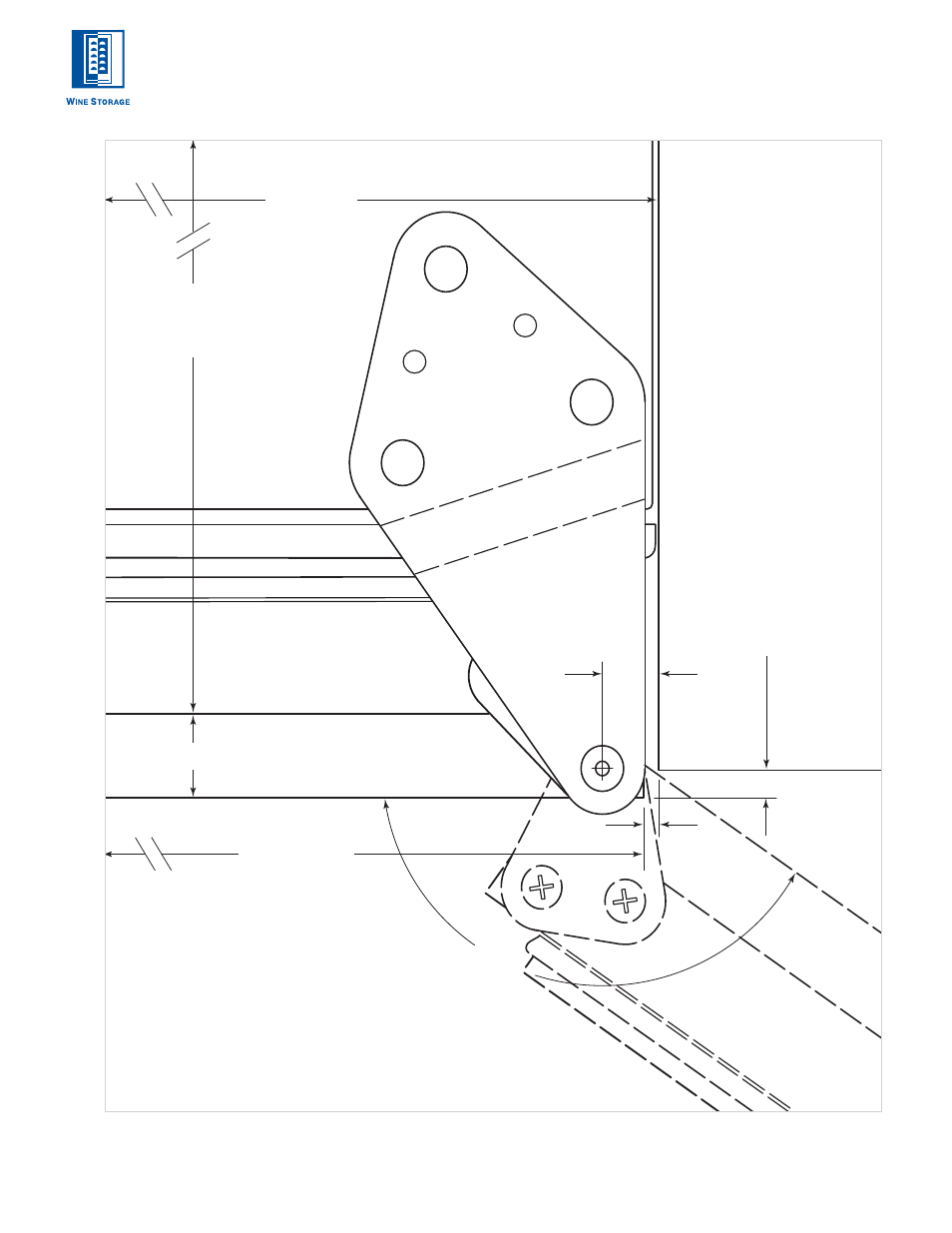

The full-scale illustration shows what
considerations you need to make for the
installation of Model I424 and how the
maximum door opening may interact with
adjacent cabinets and countertops.
