53
I N S T A L L A T I O N
Refer to the
installation instruc-
tions shipped with
each Sub-Zero
product for detailed
specifications.
O V E R A L L
D I M E N S I O N S
Model I430
Width 762 mm
Height 2134 mm
Depth 610 mm
Note the location of
pre-drilled holes for
optional handle
hardware.

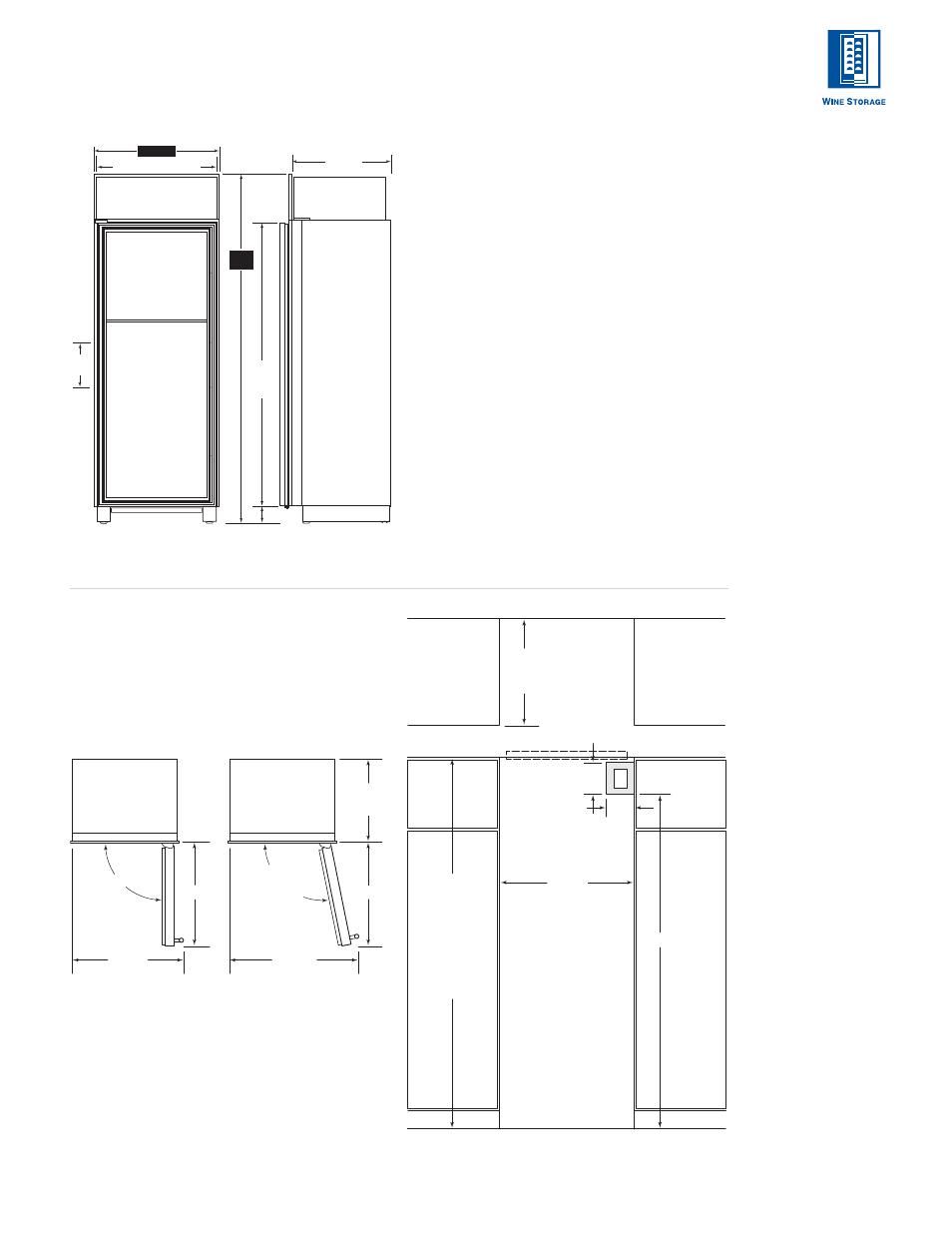

I N S T A L L A T I O N S P E C I F I C A T I O N S
All Wine Storage – Model I430
Dimensions are for finished rough openings.
Door swing clearances are based on
stainless steel door and handle dimensions.
1918 mm
178
mm
152
mm
749 mm
ROUGH OPENING WIDTH
610 mm
ROUGH
OPENING
DEPTH
E
LOCATE ELECTRICAL
WITHIN SHADED AREA
ANTI-TIP BLOCK
FRONT VIEW
TOP VIEW
2127 mm
ROUGH OPENING
HEIGHT
TO FINISHED
FLOORING WITH
STANDARD
279 mm GRILLE
2108 mm
MIN HEIGHT
REQUIRED
(LEVELERS IN)
O V E R A L L D I M E N S I O N S
All Wine Storage – Model I430
* 13 mm ADJUSTMENT IN LEVELING LEGS
FRONT VIEW SIDE VIEW
CENTERED VER
TICALL
Y
719 mm DOOR FRAME
606 mm
DOOR
FRAME
TOE
KICK
762 mm
2134
mm
105
mm
273
mm 1724
mm
A L L W I N E
S T O R A G E
Model I430
Built-In
90˚
130˚
MAXIMUM
DOOR SWING
1270 mm
DOOR CLEARANCE
838 mm
DOOR CLEARANCE
765 mm 765 mm
606 mm
BEHIND
FRAME
