41

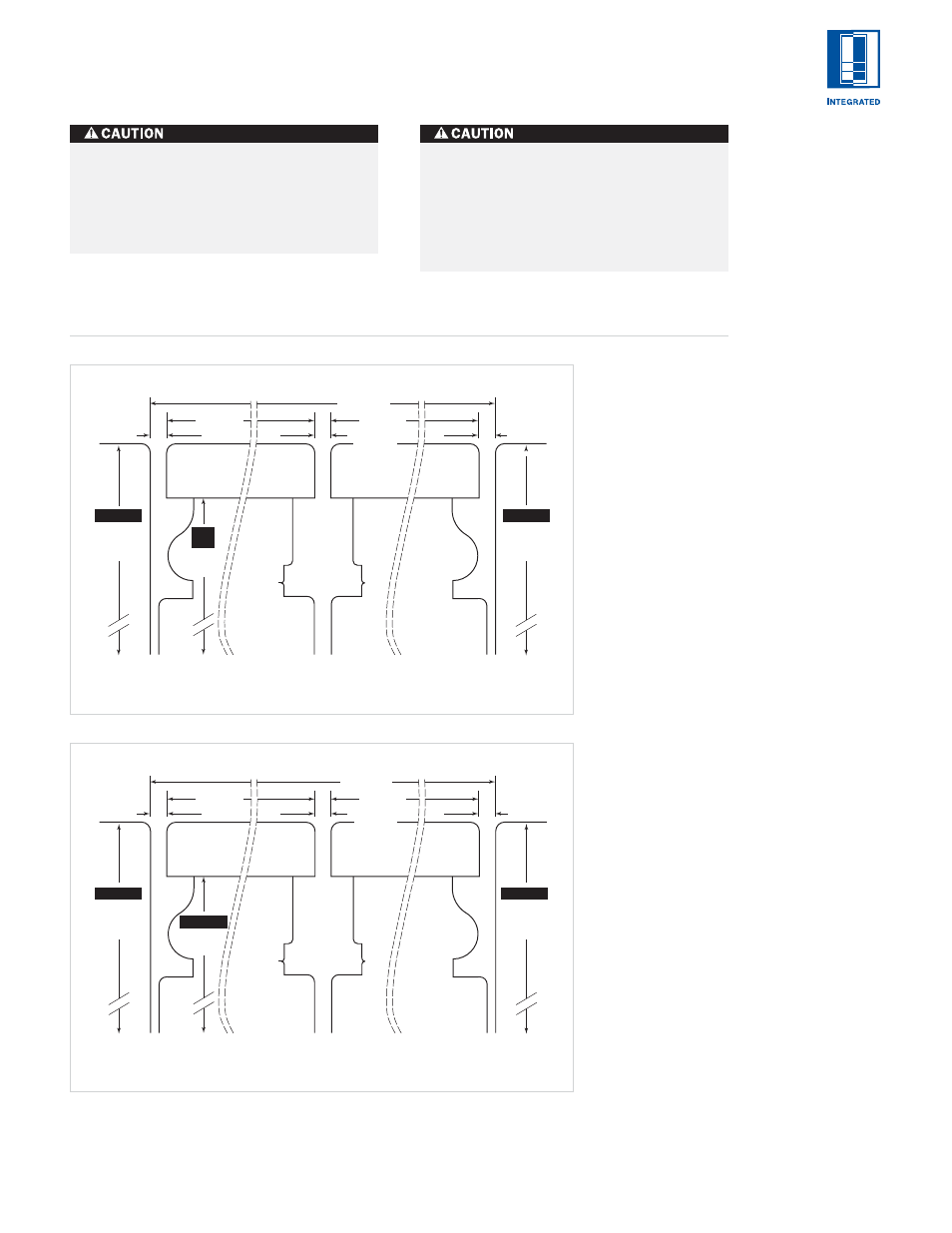

As the reveal between cabinets and the

Integrated unit decreases, the potential

exists for severe finger pinching or crushing

if a hand or fingers are placed in the

opening when the door is closing.

When 19 mm or thicker panels are used

and a reveal less than 6 mm is maintained,

the door panels may cause damage to the

Sub-Zero unit when the door is open at the

maximum 105˚ stop. You should use the

built-in 90˚ stop to prevent damage.

681 mm

681 mm

DOOR

SUB-ZERO

UNIT

DOOR

SUB-ZERO

UNIT

1372 mm

TO BACK

OF UNIT

REVEAL

REVEAL

REVEAL

*SUBTRACT PANEL WIDTH FROM CABINETRY OPENING TO DETERMINE ACTUAL WIDTH OF REVEAL

CABINETRY

OR SIDE

PANEL

CABINETRY

OR SIDE

PANEL

635 mm

635 mm

610

mm

3 mm* min

3 mm* min

19 mm

PANEL

19 mm

PANEL

3 mm* min

DOOR

SUB-ZERO

UNIT

DOOR

SUB-ZERO

UNIT

1829 mm

TO BACK

OF UNIT

*SUBTRACT PANEL WIDTH FROM CABINETRY OPENING TO DETERMINE ACTUAL WIDTH OF REVEAL

CABINETRY

OR SIDE

PANEL

CABINETRY

OR SIDE

PANEL

910 mm

910 mm

635 mm

635 mm

REVEAL

3 mm* min

REVEAL

3 mm* min

REVEAL

3 mm* min

19 mm

PANEL

19 mm

PANEL

610 mm

9 1 4 m m

W I D E M O D E L S

Panel width dimen-
sions for installation
of two 914 mm wide
tall units side by
side.

Dimensions are based
on a 3 mm reveal. A
reveal of up to 6 mm
is possible, but panel
dimensions need to be
adjusted accordingly.

6 8 6 m m

W I D E M O D E L S

Panel width dimen-
sions for installation
of two 686 mm wide
tall units side by
side.

Dimensions are based
on a 3 mm reveal. A
reveal of up to 6 mm
is possible, but panel
dimensions need to be
adjusted accordingly.

P A N E L

R E Q U I R E M E N T S

Door and drawer
panels must be a
minimum of 16 mm
thick.

The door panel
cannot exceed 18 kg
and each drawer
panel must not
exceed 5 kg for 686
mm wide units. For
914 mm wide units,
the door panel
weight limit is 24 kg
and 7 kg for each
drawer panel.
