I N S T A L L A T I O N S P E C I F I C A T I O N S
Undercounter Models
Model I424
A) Rough Opening Width 610 mm
B) Rough Opening Height 876 mm
C) Min Door Clearance 644 mm
D) Min Clearance at 90˚ 660 mm
Model I424FS*
C) Min Door Clearance 644 mm
D) Min Clearance at 90˚ 660 mm
*Free-standing Model I424FS requires no
surrounding cabinetry.
Dimensions are for finished rough openings.
Door swing clearances are based on
stainless steel door and handle dimensions.
C
90˚
D
A
ROUGH OPENING
WIDTH
394 mm
LOCATE ELECTRICAL
WITHIN SHADED AREA
E
114
mm
64 mm
B
ROUGH
OPENING
HEIGHT TO
FINISHED
FLOORING
610 mm
ROUGH
OPENING
DEPTH
TOP VIEW
FRONT VIEW
FRONT VIEW SIDE VIEW
(CABINET DIMENSION)
TOE KICK
102
mm
625 mm
* 13 mm + _ ADJUSTMENT IN LEVELING LEGS
616 mm
868
mm*

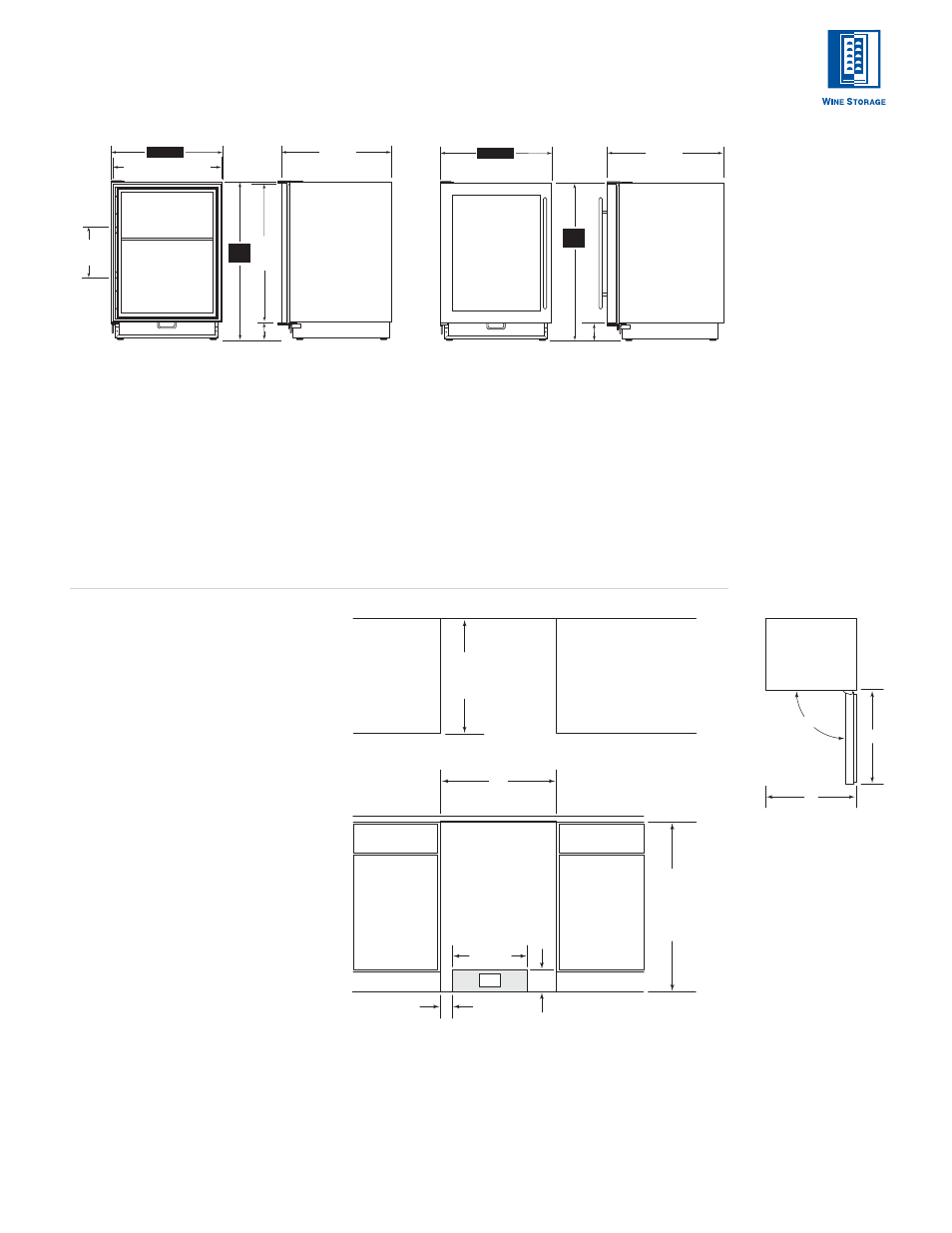

O V E R A L L D I M E N S I O N S
Undercounter Wine Storage
U N D E R C O U N T E R
Model I424
Built-In
Model I424FS
Free-Standing
M O D E L I 4 2 4
Built-In
Width 606 mm
Height 864 mm
Depth 610 mm
Note the location of pre-drilled
holes for optional handle hardware.
M O D E L I 4 2 4 F S
Free-Standing
Width 616 mm
Height 868 mm
Depth 625 mm
FRONT VIEW SIDE VIEW
(CABINET DIMENSION)
102 mm
273 mm
CENTERED
VERTICALLY
597 mm DOOR FRAME
767
mm
DOOR
FRAME
864
mm*
587 mm 606 mm
* 13 mm + _ ADJUSTMENT IN LEVELING LEGS
