24
P A N E L A N D H A N D L E P R O F I L E – O V E R L A Y A N D S T A I N L E S S S T E E L A P P L I C A T I O N
32 mm PANEL
25 mm PANEL
6 mm PANEL
13 mm PANEL
19 mm PANEL
16 mm PANEL
DOOR
6 mm APPROXIMATE THICKNESS OF WRAPPED STAINLESS STEEL DOOR
NOTE: FOR OVERLAY APPLICATIONS, OPTIONAL STAINLESS STEEL HANDLE
MUST BE MOUNTED ON PANEL MINIMUM 16 mm THICK.
1"
51
mm
76
mm
STANDARD STAINLESS STEEL HANDLE

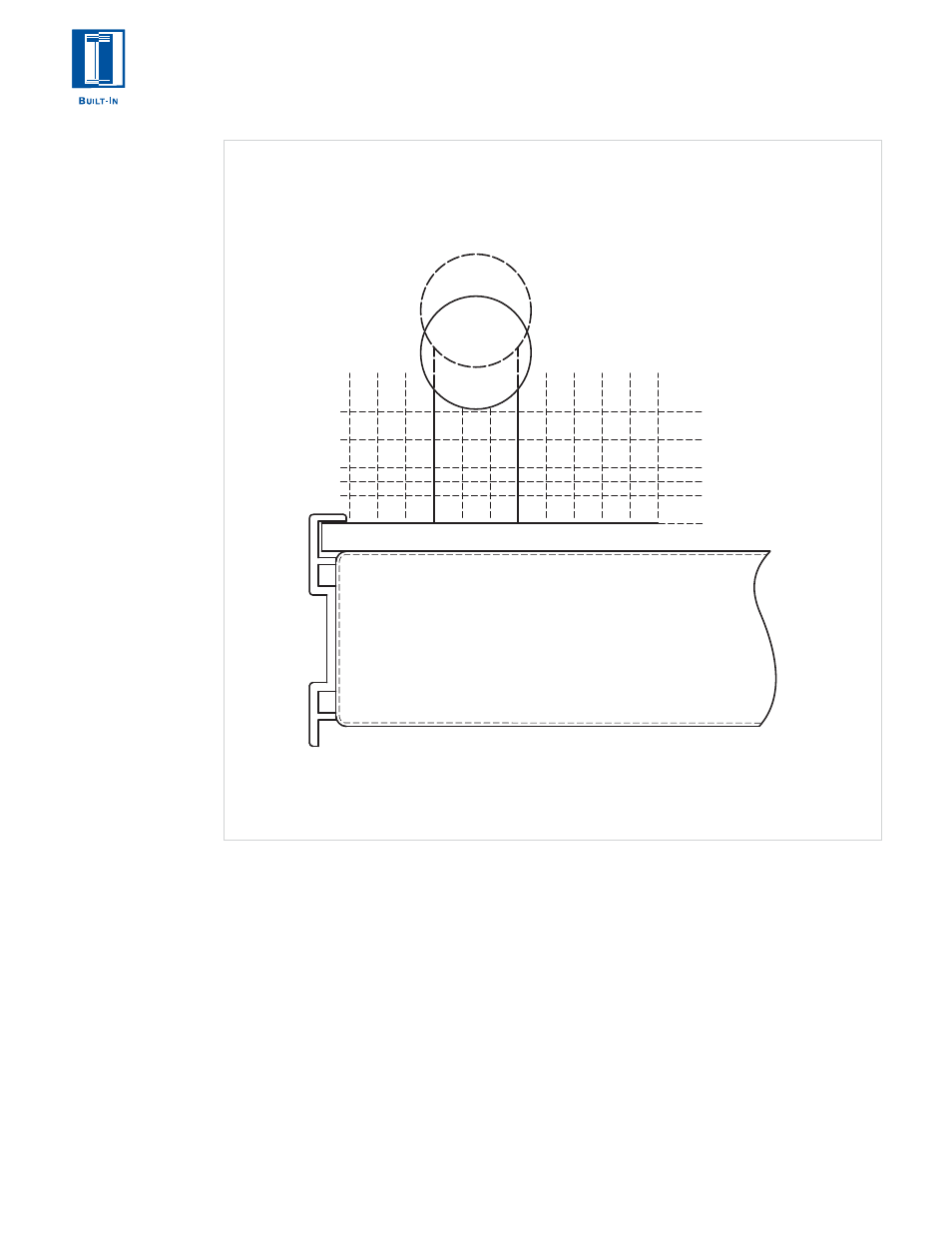

The full-scale illustration above shows
handle placement for the standard
stainless steel handle on the wrapped
stainless steel door and on overlay
panel applications shown in the dashed
line.
IMPORTANT NOTE: For overlay applica-
tions, the panel must be a minimum of
16 mm thick to support mounting the
handle hardware.
For overlay applications, mount door
handles close to the opening edge of
the door for ease of opening.
