45
PANEL
LINE OF INTERFERENCE*
AT MAXIMUM DOOR OPENING
MOUNTING BRACKET SCREW
TO BACK
OF UNIT
SIDE MOLDING AND
INSTALLATION HARDWARE
PROVIDED BY SUB-ZERO
LINE OF INTERFERENCE*
SUB-ZERO DOOR
REVEAL
3 mm min.
19 mm
657 mm DOOR WIDTH FOR 686 mm MODELS
886 mm
DOOR WIDTH FOR 914 mm MODELS
610 mm
IMPORTANT NOTE: The depth of each
Integrated model is 610 mm from the
front of the unit to its back. Your
design may necessitate moving the
unit back or cabinets forward to
achieve a flush fit.

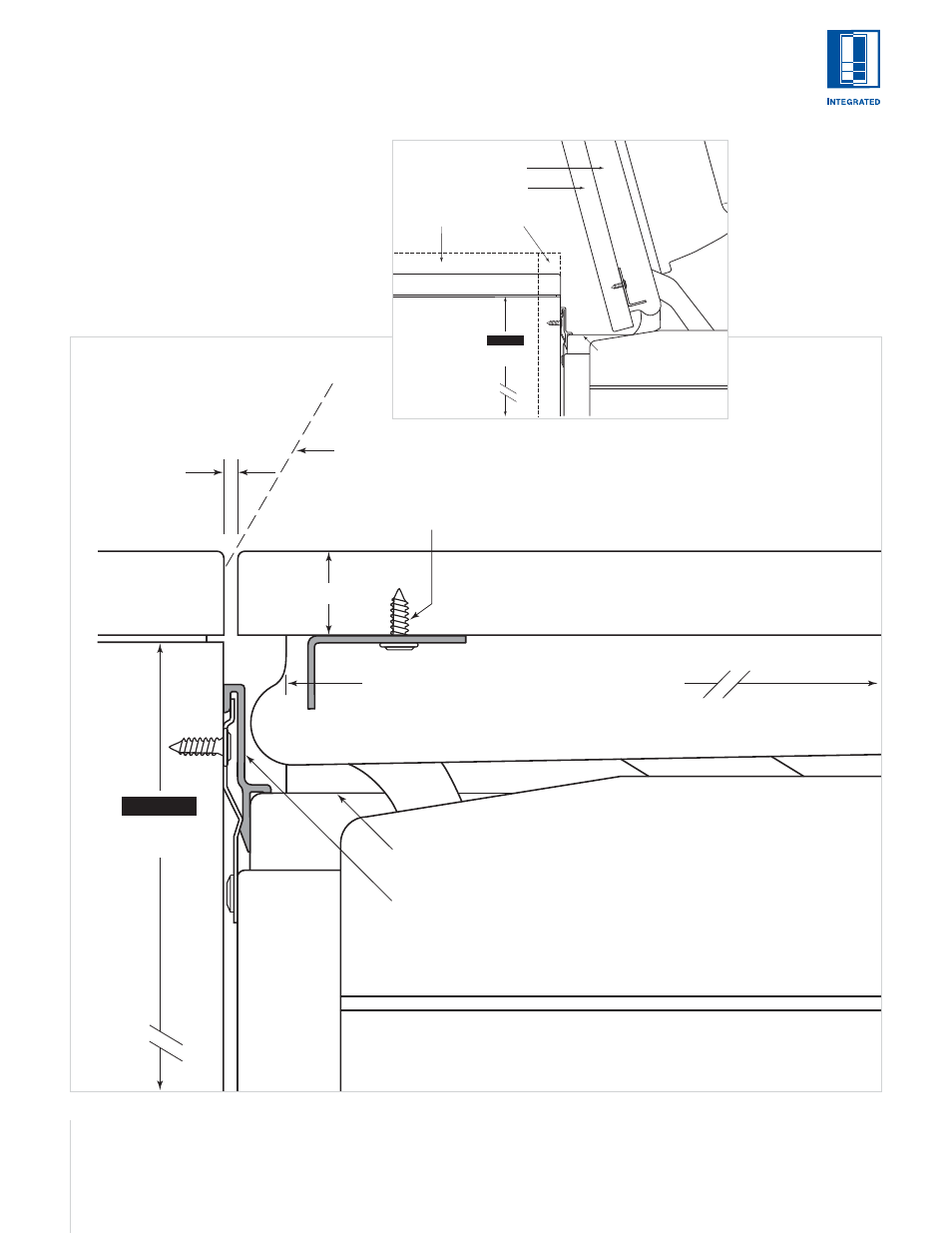

F R A M E L E S S C A B I N E T R Y
D O O R C L O S E D
Full-scale (top view)
TO
WALL
LINE OF INTERFERENCE*
SUB-ZERO DOOR
19 mm DOOR PANEL
SIDE PANEL COUNTERTOP
610 mm
1 0 5 ˚ M A X I M U M
D O O R O P E N I N G
1/4 scale (top view)
Adjacent side panel and
countertop application.
*If the panel is thicker than 19 mm, it is
recommended that you utilize the built-in
90˚ door stop to prevent damage to the
panel and face frame.
