43

D O O R P A N E L H E I G H T

The height of the door panel can grow beyond

1153 mm and exceed the 2032 mm overall

height, as long as you stay below the recom-

mended door panel weight limit.

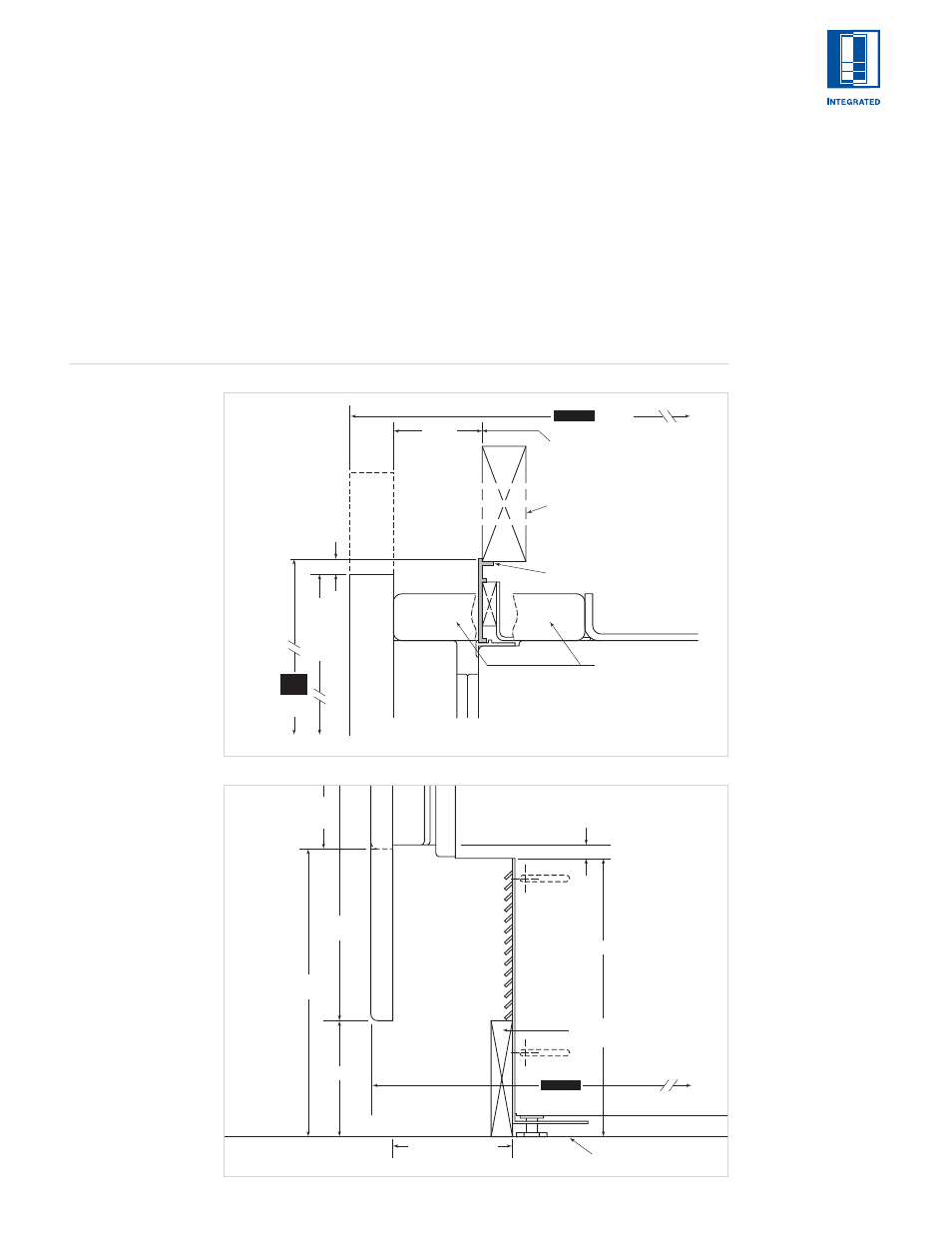

The top illustration shows how the panel may

grow and what you need to consider doing to

finish the area in back of the door panel.

IMPORTANT NOTE: The valance you use to

finish the area behind the door panel must stay

behind the front plane of the finished molding.

1153 mm

TO

BOTTOM

OF

DOOR

PANEL

TO

FLOOR

38 mm

TO WALL

DECORATIVE VALANCE

DECORATIVE VALANCE
CANNOT EXTEND BEYOND
THE FRONT OF THIS PLANE

REMOVABLE MOLDING
BY SUB-ZERO

TOP HINGE

635 mm

*

FINISHED HEIGHT OF 2032 mm IS TO TOP OF SUB-ZERO MOLDING

2032

mm*

3 mm

268

mm

424 mm

PANEL

PANEL

254 mm

OPTIONAL

TO

FLOOR

TO WALL

635 mm

BASE MOLDING MUST
BE REMOVABLE

13

mm

246 mm

67 mm

102 mm

102 mm

T O E K I C K C L E A R A N C E

The toe kick clearance can vary with the height

of the lower drawer panel; the maximum panel

height is 424 mm.

IMPORTANT NOTE: You must keep a minimum

space of 102 mm clear below the bottom edge

of the lower drawer panel so the unit can be

properly vented. In addition, any decorative base

molding must be removable for possible servic-

ing and cleaning of the condenser.

The bottom illustration shows the area below

the lower drawer where the operating mechani-

cal equipment of the Integrated unit is housed.

K I C K P L A T E A R E A

Base and Tall Models

U P P E R V A L A N C E

Tall Models

The depth of each
Integrated model is
610 mm from the
front of the unit to its
back. Your design
may necessitate
moving the unit back
or cabinets forward to
achieve a flush fit.
This will require a
minimum rough
opening depth of
635 mm.

P A N E L

R E Q U I R E M E N T S

Door and drawer
panels must be a
minimum of 16 mm
thick.

The door panel
cannot exceed 18 kg
and each drawer
panel must not
exceed 5 kg for 686
mm wide units. For
914 mm wide units,
the door panel
weight limit is 24 kg
and 7 kg for each
drawer panel.
