The back sides of rails and stiles that will be
visible through the glass door will need to be
finished. Also, the inside edges of the frames
must be finished to match the front surface.
As with the Sub-Zero Built-In models, you have
the flexibility of ordering grilles in a variety of
heights for the overlay application. Overlay grille
panel dimensions for the overlay Model I430,
standard 279 mm grille, are listed below. Refer
to page 23 for optional grille height dimensions.
The width of the overlay grille, spacer and
backer panel will be the same regardless of the
height.
NOTE: 13 mm ADJUSTMENT IN LEVELING LEGS

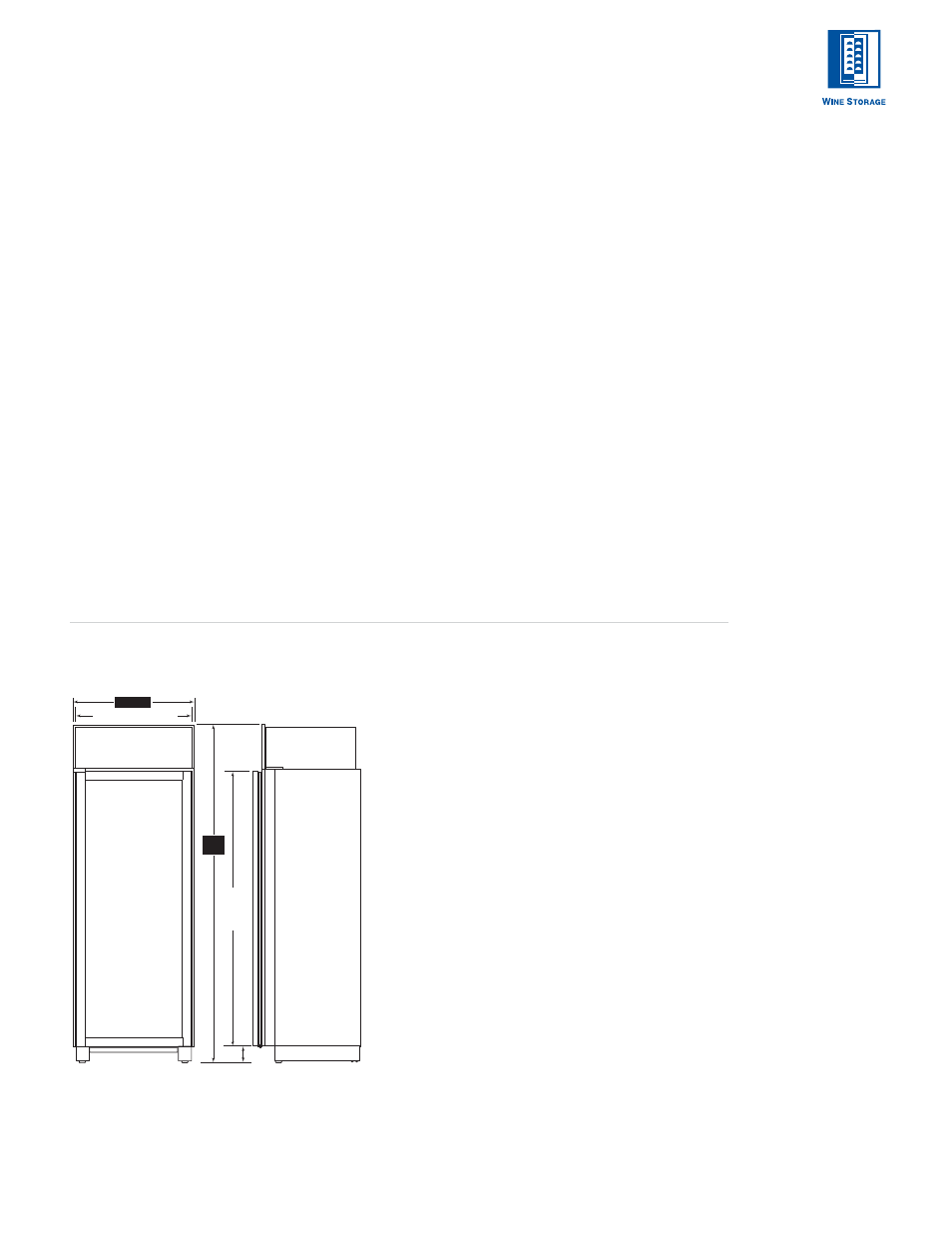

FRONT VIEW SIDE VIEW
103 mm
1727 mm
CENTERED
VERTICALLY
DOOR
PANEL
TOE
KICK
722 mm DOOR FRAME
762 mm
2134
mm
C A B I N E T R Y D I M E N S I O N S
Model I430
O V E R L A Y P A N E L S P E C I F I C A T I O N S
Model I430 – Overlay (O)
Overlay Door Panel Width 722 mm
Overlay Door Panel Height 1727 mm
Spacer Panel Width 699 mm
Spacer Panel Height 1073 mm
Backer Panel Width 714 mm
Backer Panel Height 1719 mm
Min Width of Rails and Stiles 57 mm
Door Frame Panel Weight Limit 11 kg
Min Panel Thickness 16 mm
G R I L L E P A N E L S P E C I F I C A T I O N S
Model I430 – Overlay (O)
Overlay Grille Panel Width 722 mm
Overlay Grille Panel Height* 260 mm
Spacer Panel Width 699 mm
Spacer Panel Height* 236 mm
Backer Panel Width 714 mm
Backer Panel Height* 252 mm
Grille Panel Weight Limit 7 kg
Min Panel Thickness 16 mm
*Grille panel dimensions are for standard 279 mm
grille. Refer to page 22 for optional grille heights.
In addition, side panel information for a Model
I430 is available on page 21 of the Built-In
section. Refer to illustration 11 on page 21 for
placement of toe kick and grille area cut-outs.
I N S T A L L A T I O N
To install overlay
panels, see the
detailed procedures
outlined in the
Sub-Zero Wine
Storage Installation
Guide.
