61
F U L L - S C A L E
T E M P L A T E S
The full-scale illus-
trations on the
following pages
enable you to under-
stand some of the
unique situations
you may face as you
plan for the installa-
tion of the Wine
Storage units. Use
these illustrations as
templates.

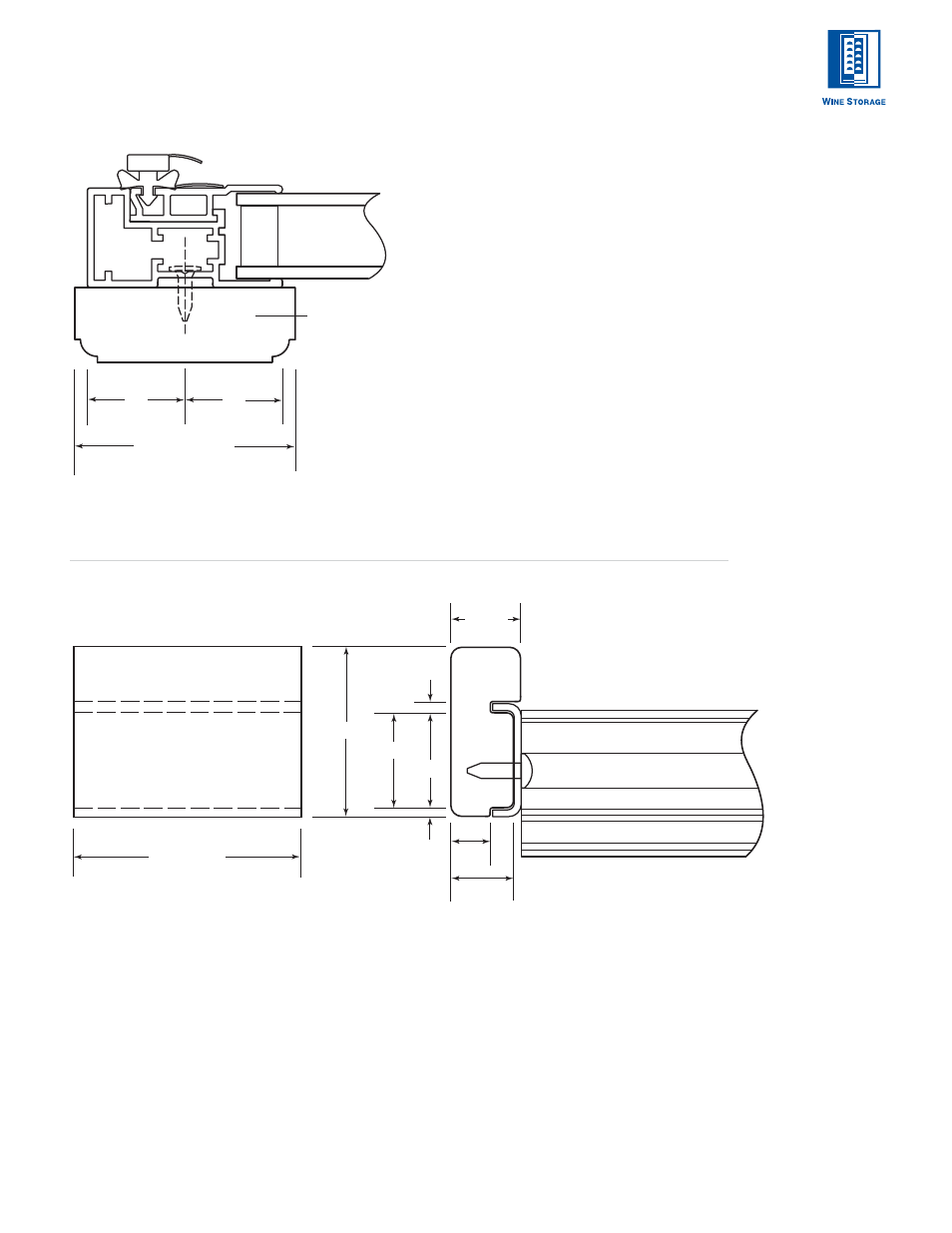

D O O R F R A M E P R O F I L E
A
57 mm Rail / Stile
Glass
A
C
L
Cabinet Door
Profile
W I N E S H E L F W O O D F A C I N G
A (WIDTH)
Maximum Thickness
FRONT VIEW SIDE VIEW
38 mm
16 mm
3 mm
2 mm
9 mm
14 mm
21 mm
This full-scale illustration is typical of the
Model I424 door frame profile; details of the
other Wine Storage door frames will vary slightly.
This full-scale illustration provides the dimensions
you will need should you choose to replace the
natural cherry wood facing of each wine shelf
with wood more complementary to your design
and surrounding cabinetry.
D O O R F R A M E H A N D L E O F F S E T
Wine Storage Models
Dimension A
Model I424 25 mm
Model I427 22 mm
Model I427R 22 mm
Model I430 24 mm
IMPORTANT NOTE: Rails and stiles must be
a minimum of 57 mm wide (except for the
rails of Models I427 and I427R, which must
be wide enough to cover the door hinges).
The back sides of rails and stiles that will be
visible through the glass door will need to be
finished.
W I N E S H E L F W O O D F A C I N G
Wine Storage Models
Dimension A
Model I424 495 mm
Model I424FS 495 mm
Model I427 532 mm
Model I427R 532 mm
Model I430 624 mm
