1-24
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
Back view
Mode selection plate
Screw
Round hole Search dial shaft
The shaft is seen.
Search dial
Unlock button
Unlock button
Lower control panel unit
Back view
Mode selection plate
Portion A
Screw
4. Check to see that the shaft of the search dial is not seen
in the round hole of the mode selection plate, and then
tighten the screw.
Allowing Search Dial Pressing
1. Open the lower control panel. (Operation side up)
2. Loosen a screw on the backside of the search dial as
shown in the figure.
3. Fully slide the mode selection plate in the direction
indicated by the arrow.
4. Check to see that the shaft of the search dial is seen in
the round hole of the mode selection plate, and then
tighten the screw.

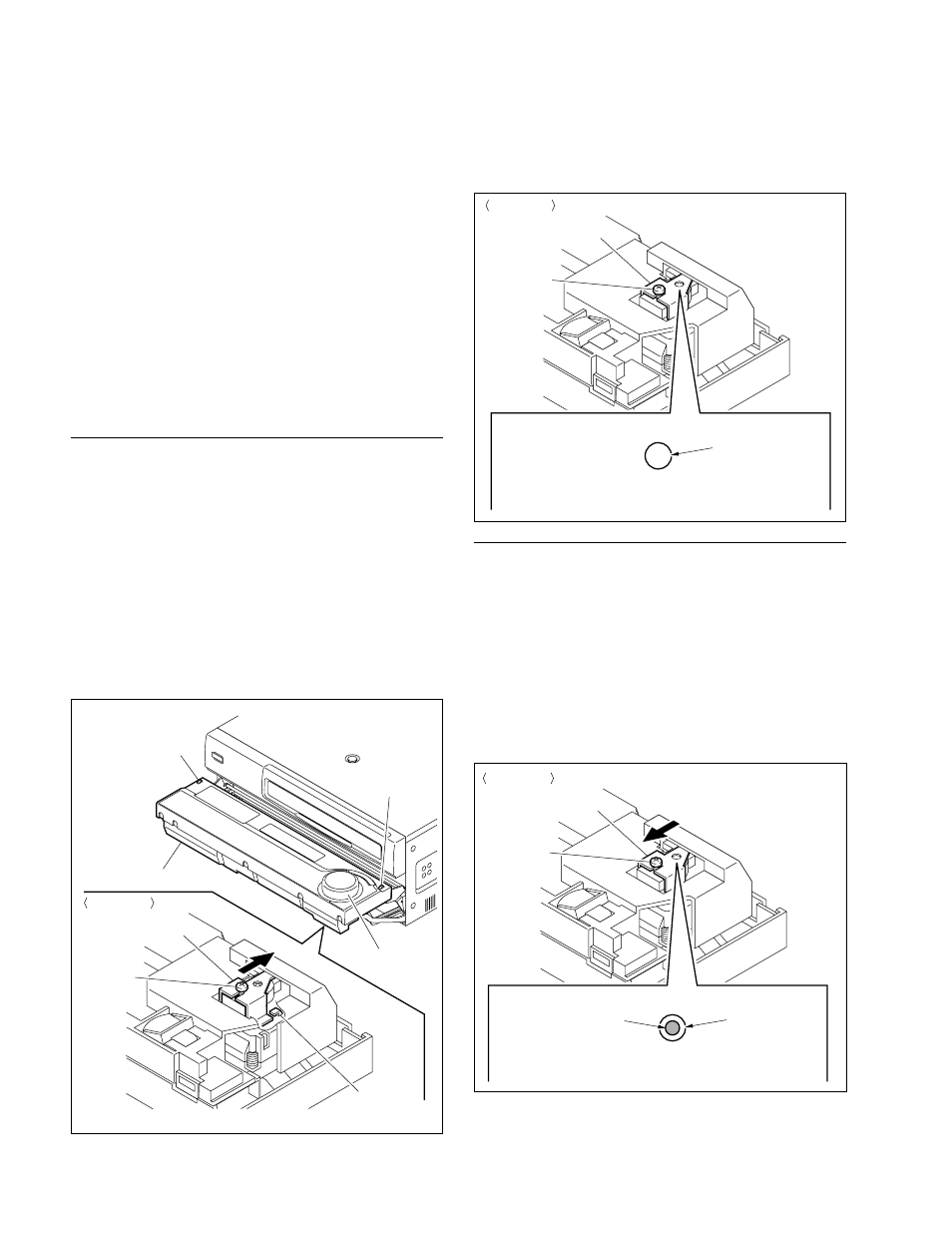

1-13. Switching Search Dial Mode
1-13. Switching Search Dial Mode
There are two kinds of operation to switch the mode of the
search dial on the lower control panel.
. Button selecting
To enter the shuttle mode, press the SHUTTLE button.
To enter the jog mode, press the JOG button.
To enter the variable mode, press the VAR button.
. Search dial pressing
When you press the search dial, the search dial mode
switches in order to shuttle, jog, variable.
It is possible to prohibit a manner of switching.
Prohibiting Search Dial Pressing
1. After pressing the unlock buttons, open the lower
control panel as shown in the figure below.
2. Loosen a screw on the backside of the search dial as
shown in the figure.
n
If it is difficult to loosen the screw, remove the lower
control panel unit in advance.
(Refer to Section 1-12.)
3. Slide the mode selection plate in the direction indicat-
ed by the arrow until it contacts the portion A.
Round hole
The shaft is not seen.
Back view
Mode selection plate
Screw
