1-7

HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P

MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP

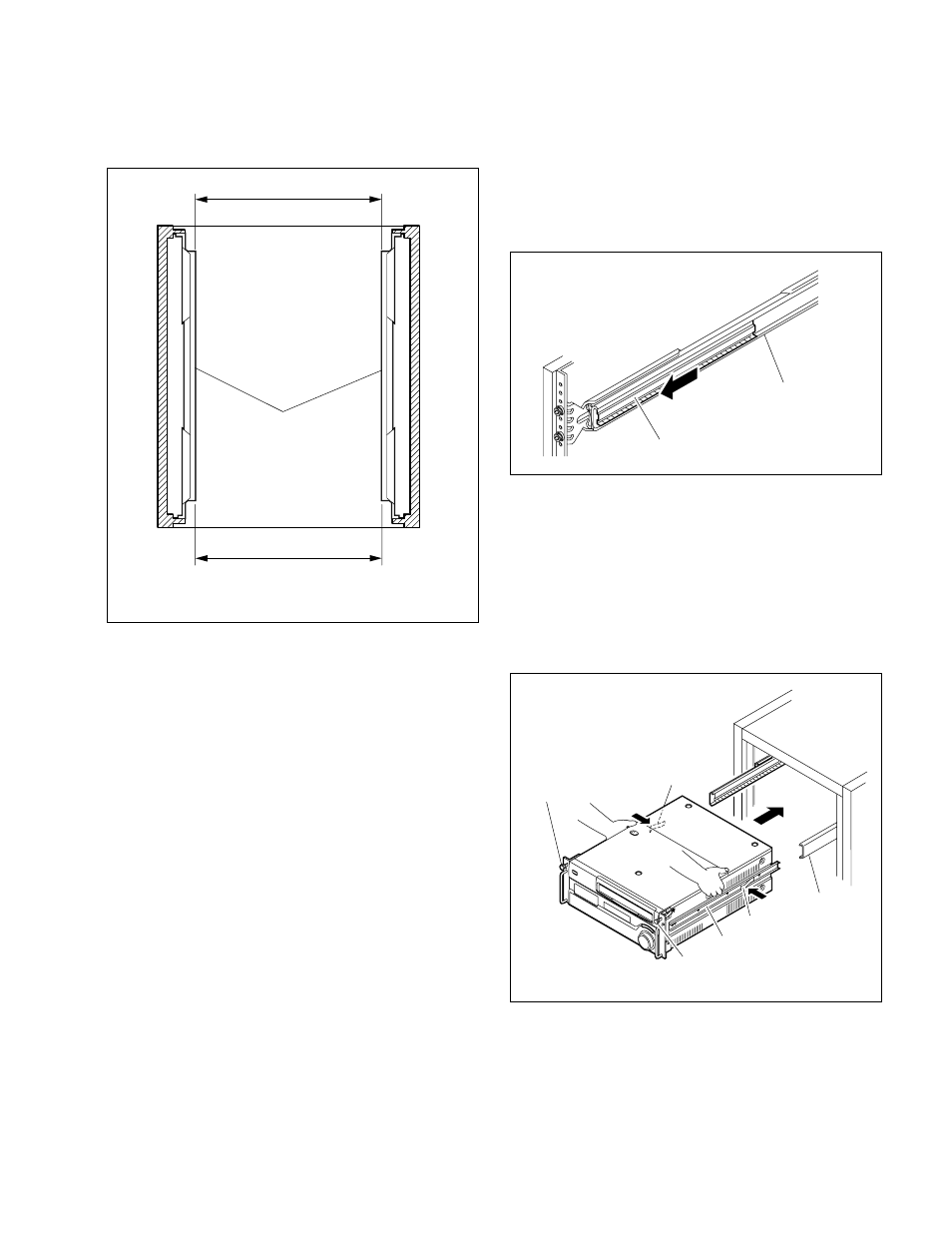

Intermediate rails

Width : A = A'

= 416 mm

15. Check that the two intermediate rails attached to the

rack are parallel.

16. To fix the two outer rails to the rack, fully tighten the

eight loosely fitted hexagon socket head cap screws in
step 12 using the L-shaped hexagon wrench.

1-6. Rack Mounting

. Mounting in rack
c
Be sure to carry the unit by the two persons or more.

17. Slide each ball retainer of intermediate rails on both

sides (left and right) in the direction of the arrow.

18. Pull equal length of each rail on both sides out.
19. Lift the unit holding the gripes on both sides, slowly

insert the inner rails into the intermediate rails.

20. While pressing each stopper of inner rails on both

sides, slowly push the unit into the rack.
c
Be careful not to catch your finger or hand in rack
mount rail.

n
Pushing the unit in the depths of the rack, the lock mecha-
nism prevents the unit from being pulled out.
To pull the unit out of the rack, pull the unit while pressing
the release buttons of the rack angles.

Intermediate rail

Ball retainer

Intermediate rail

Stopper

Inner rail

Release button
