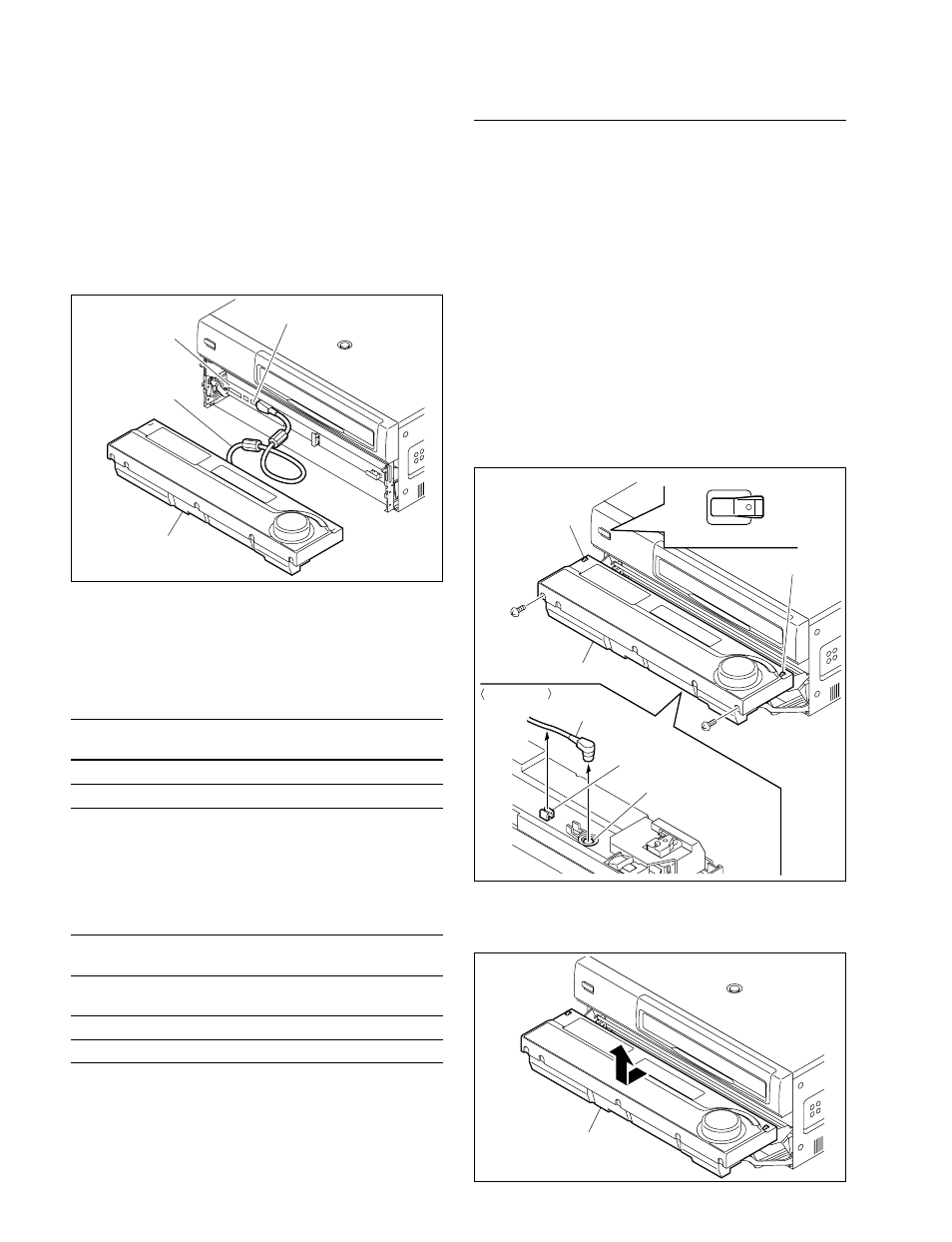

1-12. Removing/Reattaching Lower Control Panel Unit
1-12. Removing/Reattaching Lower
Control Panel Unit
The lower control panel unit is detachable from the main
unit, therefore operation with placing the single panel unit
on the table as a keyboard of a personal computer is
possible. (The length of the connected cable is about 62
centimeters.)
Not only connecting the cable to a CONTROL PANEL
connector in the front switch panel, but connection be-
tween the cable and the CONTROL PANEL connector in
the rear connector panel provides operating the lower
control panel. After connection, set a PANEL SELECT
switch on the switch panel as follows:
Connector to be connected Setting of PANEL
to lower control panel unit SELECT switch
Front (on the switch panel) FRONT (Factory setting)
Rear (on the connector panel) REAR
Settings when connecting the two lower control
units
When connecting the two lower control units to one VTR,
select which operation to enable by setting from the setup
extended menu ITEM-117.
Operation Setting of ITEM-117 Setting of PANEL
enabled SELECT switch
Front-side panel SW or PARA FRONT
(Factory setting)
Rear-side panel SW (Factory setting) REAR
Both panels PARA REAR
n
To display ITEM-117 for MSW-series, menu display
setting is necessary. See Section 1-10-4. As to the setting
of ITEM-117, refer to the operation manual of the VTR.
Removal/Extension of the Lower Control Panel
Unit
1. Turn off the power of VTR.
2. After pressing the unlock button, open the lower
control panel as shown in the figure below.
3. Disconnect the cable from the connector on the back
side of the lower control panel unit and from the cord
holder.
n
Check the power of the VTR is turned off before
disconnecting the cable. Disconnecting or connecting
the cable in the power-on state will damage the control
panel.
4. Remove the two screws shown in the figure.
5. Lightly draw the lower control panel unit toward you,
and then lift it upward.
Lower control panel unit
