Page 19
1-13
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
1
17

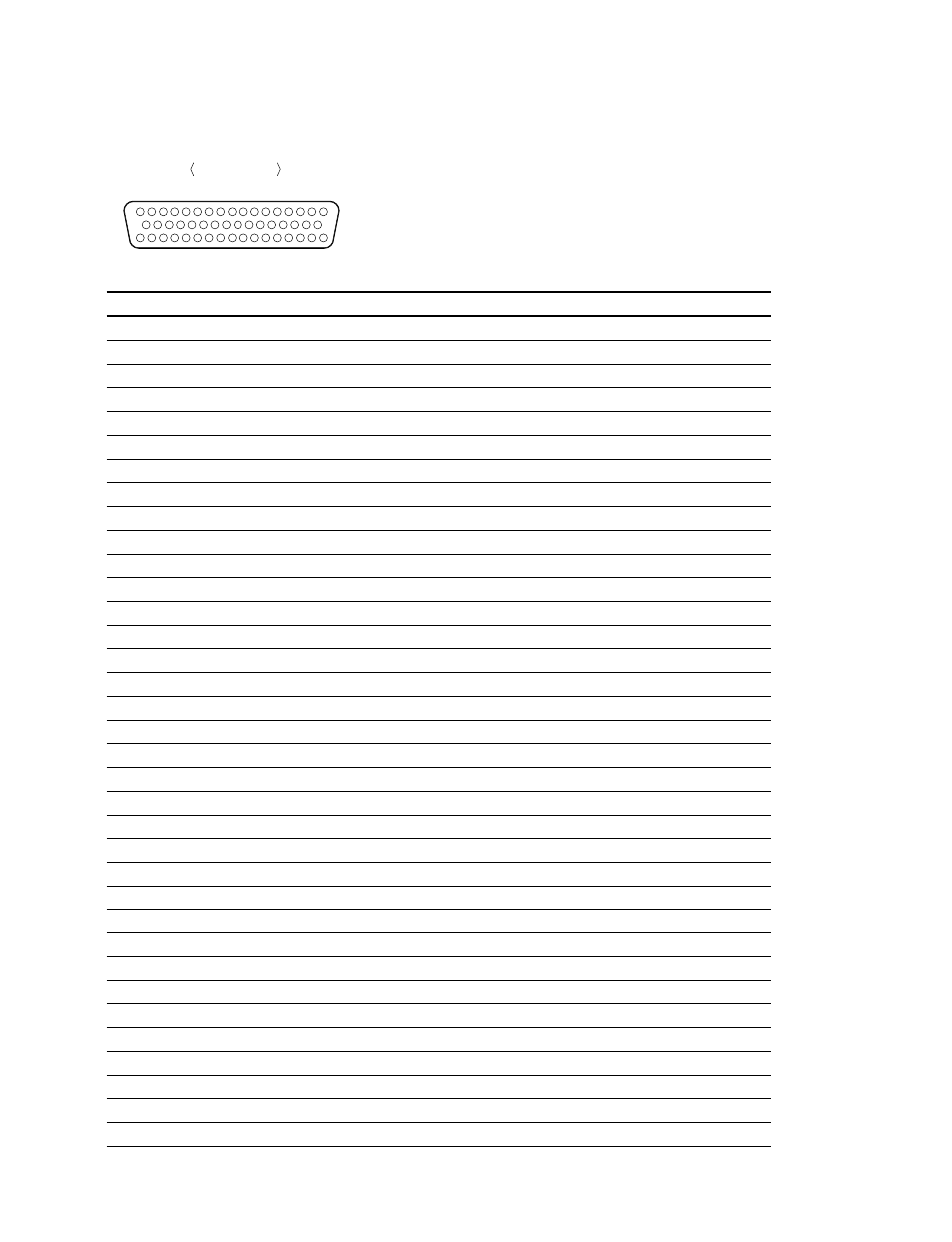

External view
34
50
33
18
1-8. Signal Inputs and Outputs
REMOTE 2 PARALLEL I/O: 50-pin (female)
Pin No.
I/O
*
*
*
*
*1
Setting change
*
*
*
*
*2
Signal
Description
1
IN
O
FF
CLOSURE SW (FF)
2
OUT
X
REC SW
PANEL REC SW OUT
3
OUT
X
PLAY SW
PANEL PLAY SW OUT
4
OUT
X
STOP SW
PANEL STOP SW OUT
5
OUT
X
ENTRY SW
PANEL ENTRY SW OUT
6
OUT
X
REF SYSTEM ALARM
Non-REFERENCE
7
OUT
X
CF LOCK
COLOR FRAME LOCK STATUS
8
OUT
X
DRUM LOCK
LOCK STATUS OF DRUM SERVO
9
OUT
X
CAP LOCK
LOCK STATUS OF CAPSTAN SERVO
10
OUT
O
CUE PRESET
EDIT PRESET STATUS of the CUE Channel
11
OUT
O
TC PRESET
EDIT PRESET STATUS of the TC Channel
12
OUT
O
OXIDE/METAL
OXIDE/METAL TAPE STATUS
13
OUT
O
TAPE THICKNESS
TAPE THICKNESS STATUS
14
OUT
X
SPARE
SPARE
15
OUT
X
SPARE
SPARE
16
——
——
+12V
(Maximum output current 50 mA)
17
——
——
GND
SIGNAL GND
18
IN
O
PREROLL
CLOSURE SW (PREROLL)
19
IN
O
STBY ON
CLOSURE SW (STANDBY ON)
20
IN
O
REW
CLOSURE SW (REW)
21
IN
O
ENTRY
CLOSURE SW (ENTRY IN)
22
IN
O
STBY OFF
CLOSURE SW (STANDBY OFF)
23
IN
O
EJECT
CLOSURE SW (EJECT)
24
OUT
X
REC
REC STATUS
25
OUT
X
CH CONDITION RED
CHANNEL CONDITION RED STATUS
26
OUT
O
ASSEMBLE PRESET
ASSEMBLE PRESET STATUS
27
OUT
O
EDIT OUT
EDIT STATUS
28
OUT
O
EJECT OUT
EJECT STATUS
29
OUT
O
ANALOG/DIGITAL
ANALOG/DIGITAL STATUS
30
OUT
O
REEL HUB
REEL HUB STATUS
31
OUT
X
REM2 SETTING DATA RESET REMOTE2 SETTING DATA RESET STATUS
32
OUT
X
ALL REC INHIBIT
ALL REC INHIBIT STATUS
33
——
——
GND
34
IN
O
PLAY
CLOSURE SW (PLAY)
35
IN
O
STOP
CLOSURE SW (STOP)
(Continue)
