Operation – Servis-Rhino 95HD User Manual

Page 27

F3788-7-04

Operation Section 4-4

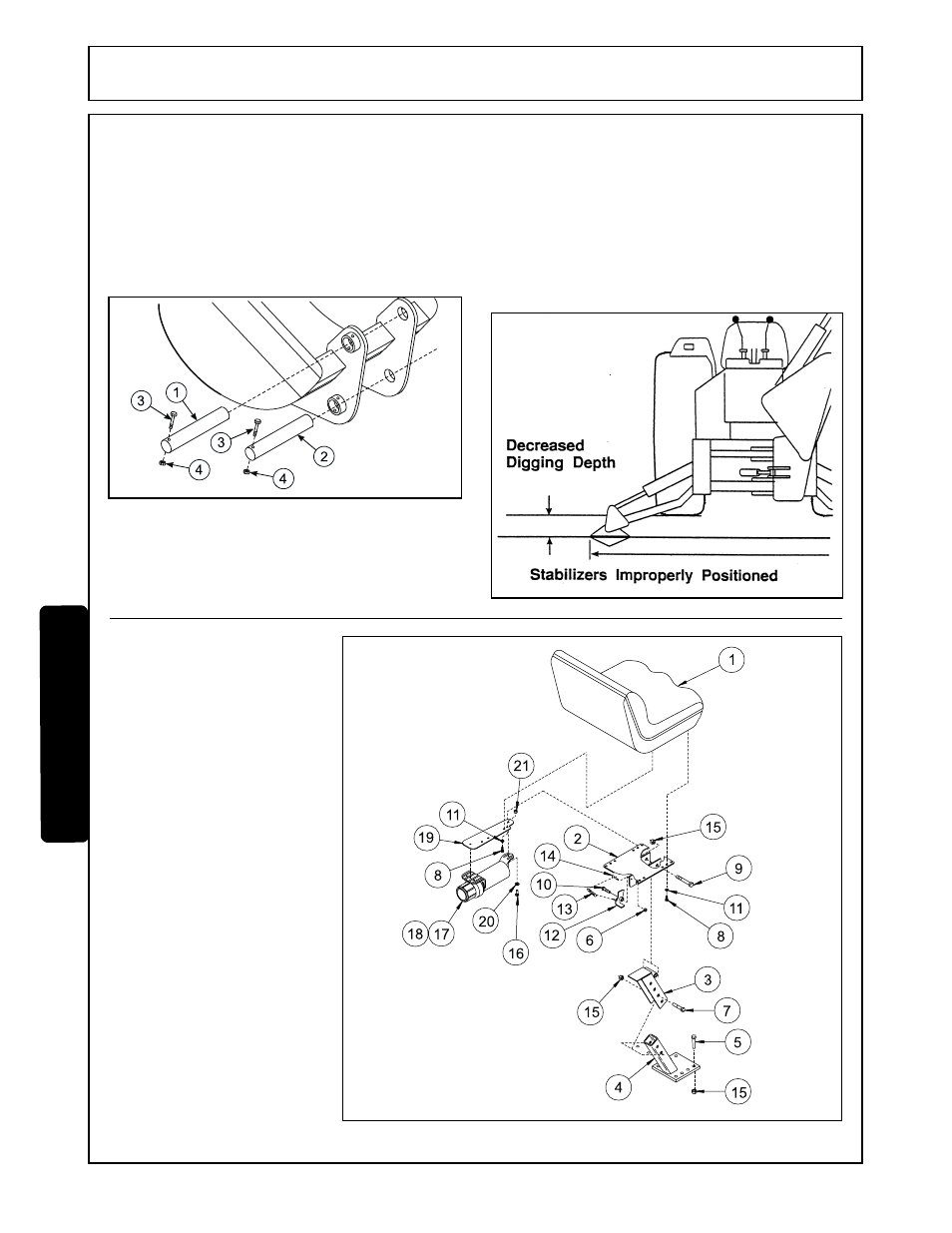

MOUNTING AND DISMOUNTING BUCKETS

Mount buckets using pins (1 & 2), cap screws (3),

lock nuts (4) provided.

NOTE: Pin (1) with grease fitting is bucket/dipper pivot

pin.

PLACING THE STABILIZERS

Set the stabilizers to remove weight from the rear wheels.

Rear wheels are to remain touching the ground as this

provides for the widest stabilizer stance and lowest center

of gravity.
Raising the wheels off the ground will not only reduce

stability and digging depth, but impair performance and

impose unnecessary stress on the backhoe and tractor.

OPERATION

SEAT ADJUSTMENT

Adjust the seat up or down by removing

the 1/2 cap screw (7) and lock nut (15)

which secures seat bracket to seat post

and raising or lowering the seat. Adjust

seat

forward

rearward

repositioning seat latch (12) located

under mounting plate (2).
