Assembly Section 3-2

ASSEMBLY

INSTALLING PUMP KIT

WARNING: Do not modify or alter this

implement. Do not permit anyone to modify or

alter this Implement, any of its components or

any Implement function.

NOTE: Drawbar may need to be removed if it interferes with

reservoir. If drawbar can be left in place, retaining bracket (4)

should be installed on left side of pump as shown and

positioned on left side of tractor drawbar.

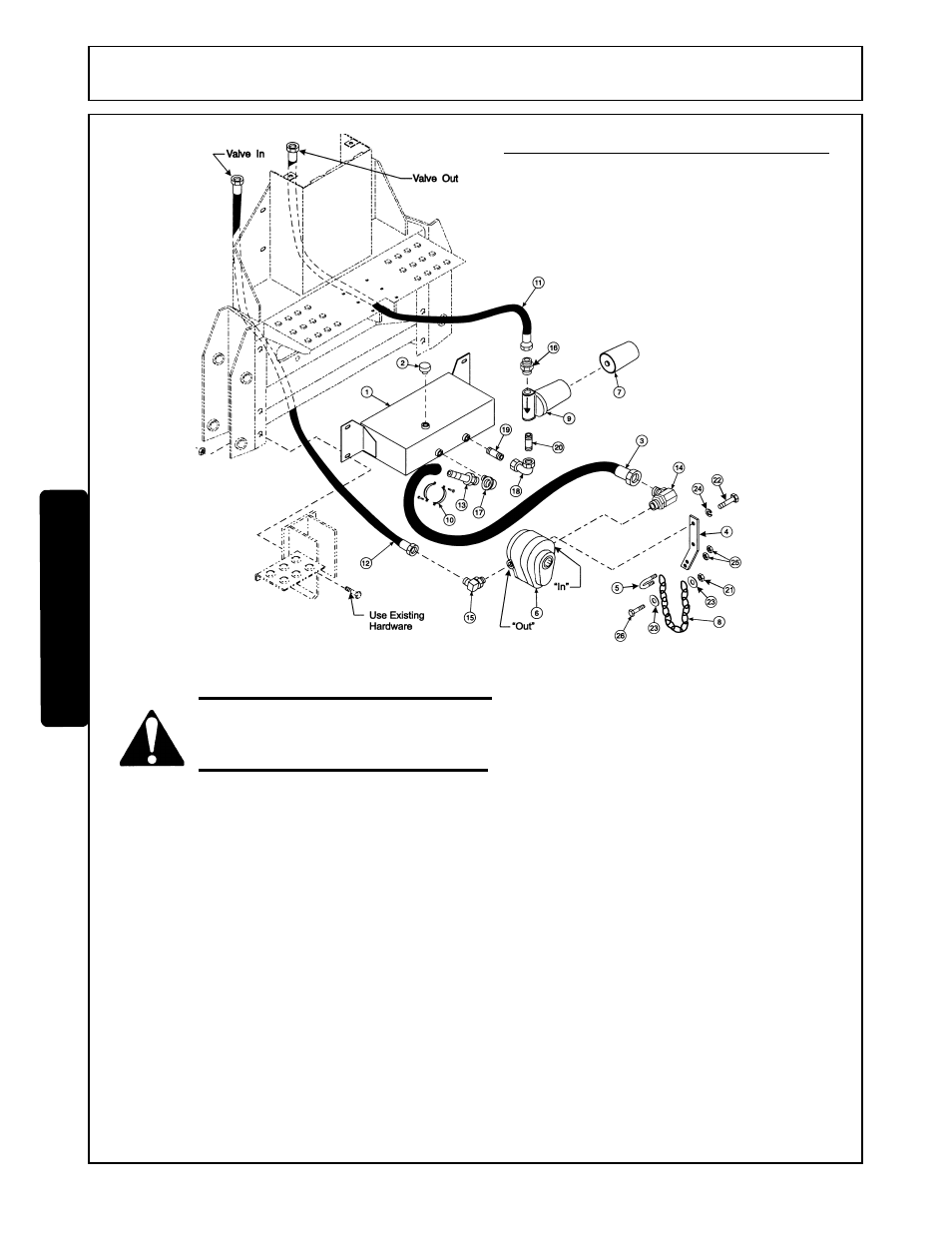

1. Fasten hydraulic pump retaining bracket (4) to pump (6)

using 3/8-16 x 1-1/4 cap screws (22) and 3/8 lock washers

(24). Fasten one end of chain (8) to pump retaining bracket

using wire rope clip (5), and 3/8 lock nuts (25).

NOTE: Wrap chain tightly around hitch bracket on tractor to

prevent pump from slipping off PTO shaft.

2. Sandwich reservoir (1) between 3-pt mounting brackets or

subframe and backhoe using hardware supplied with 3-pt

mounting brackets or subframe.

3. Install 1 x 2-1/2 nipple (19), 3/4 x 3/4 elbow (18) and 3/4 x 2

nipple (20) to right tank port. Point 3/4 x 3/4 elbow fitting

(18) up.

4. Install filter body (without filter element) to 3/4

nipple (20). Be sure oil flow (arrow on filter body) is

correct. Position body so element points right.

Install filter element (7).

5. Install 3/4 x 3/4 fitting (16) to filter body.

6. Install 1 x 1 elbow fitting (17) and hose barb (13) to

left tank port. Point hose barb up and 45° to left.

7. Install 1-5/16 live swivel elbow (14) to right IN

port on pump. Install 3/4 x 1-1/16 elbow fitting (15)

to left OUT port on pump.

8. Connect suction hose (3) to reservoir using hose

clamp (10) and to live swivel fitting (14) on pump.

9. Connect pressure hose (12) to OUT port on

pump and IN port on valve. Connect tank hose

(11) to OUT port on valve and to filter on

hydraulic reservoir.

10.Fill reservoir to within two inches from top with

10W or 20W hydraulic oil with SAE J183-M2C33F

classification. Dextron 2 ATF fluid and 10W engine

oil with API SD classification are also

acceptable.

NOTE: After cycling all cylinders, recheck oil level.

INSTALLING PUMP KIT (Option)
