Network Camera (Wired LAN) Settings
2 Menu select buttons
The live image display area and setting area
changes when you click on one of these buttons.
•
[LIVE VIEW] button
Live images can be monitored.
•
[VIEW FRAME] button
Sets the live image display area to a fixed
image size (720x480).
•
[NETWORK] button
Used when making network settings.
•
[WIRELESS LAN] button
Used when making wireless LAN settings.
•
[PPP] button
Used when setting up an Internet connection
using a modem.
Archive software (sold separately) is required
when using these settings.
•
[CAMERA] button
Used when making settings for the camera
such as camera title, image quality and
day/night mode.
•
[ALARM] button
Used when making settings for alarm
recording and motion sensors.
•
[CLOCK] button
Used when setting the camera’s clock.
•
[RS-232C] button
Used when setting the communication speed
when the camera is connected directly to the
computer.
•
[LANGUAGE] button
Click this button if you would like to change
the language. The language selection screen
will be displayed.
•
[STATUS] button
Used when checking firmware versions and
information relating to the camera.

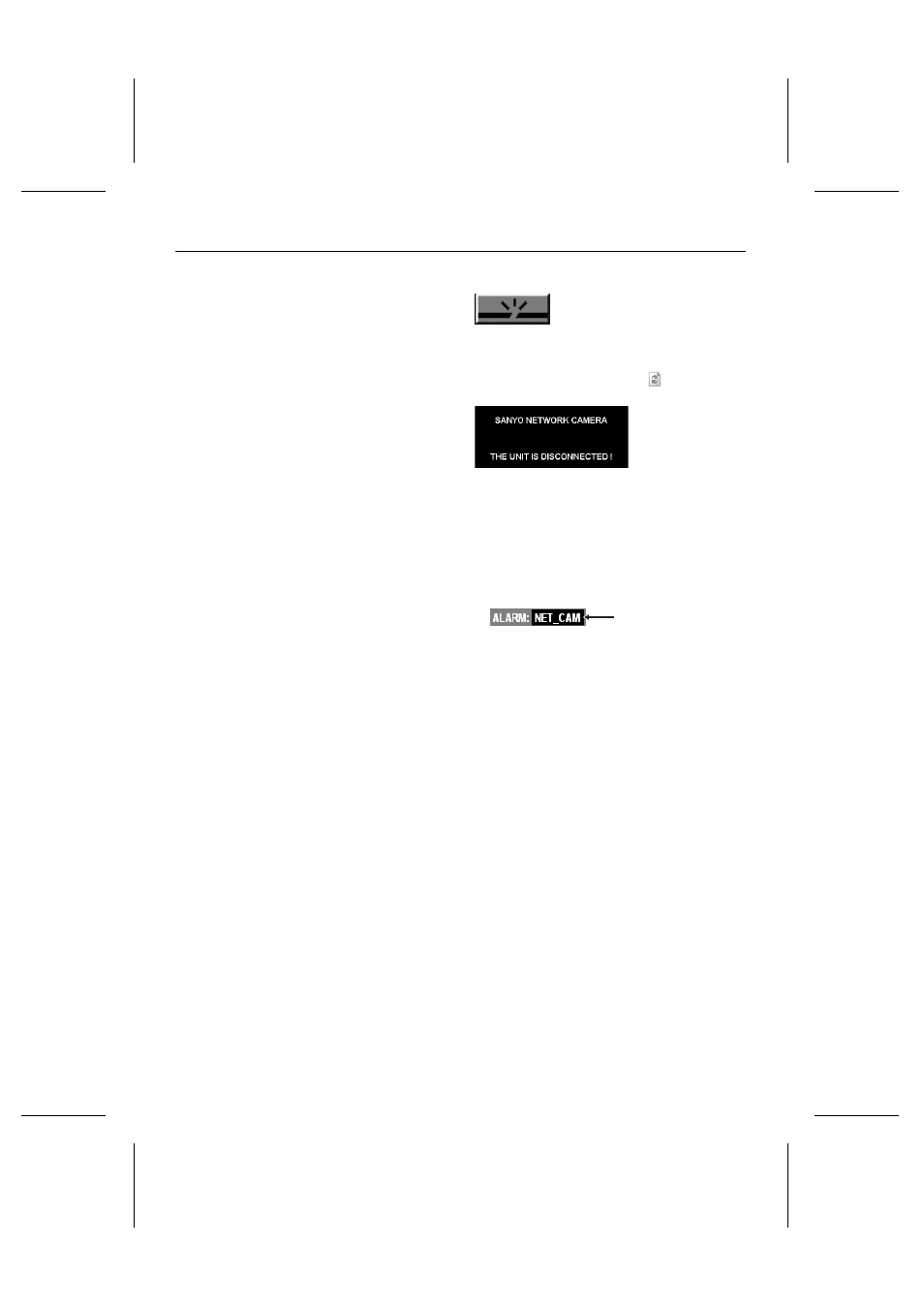

3 Network disconnect button
Click this button to shut down operation of the
network camera. The following message will be
displayed when this button is clicked. To
reconnect the camera, click the (Refresh)
button in the title bar.
4 [Get JPEG2000 PLUG-IN] button
If you need to install the JPEG2000 plug-in
software, click this button to point the browser to
a website page for downloading the software.
Select “JPEG2000 Plug-in Software” and then
start the download. You will need an Internet
connection in order to download the software.
5 ALARM indicator
•
Off: No alarm data, or recording of images is
complete
•
Lit red: Post-alarm recording in progress
•
Lit orange: Pre-alarm recording in progress
Camera title
