Connections

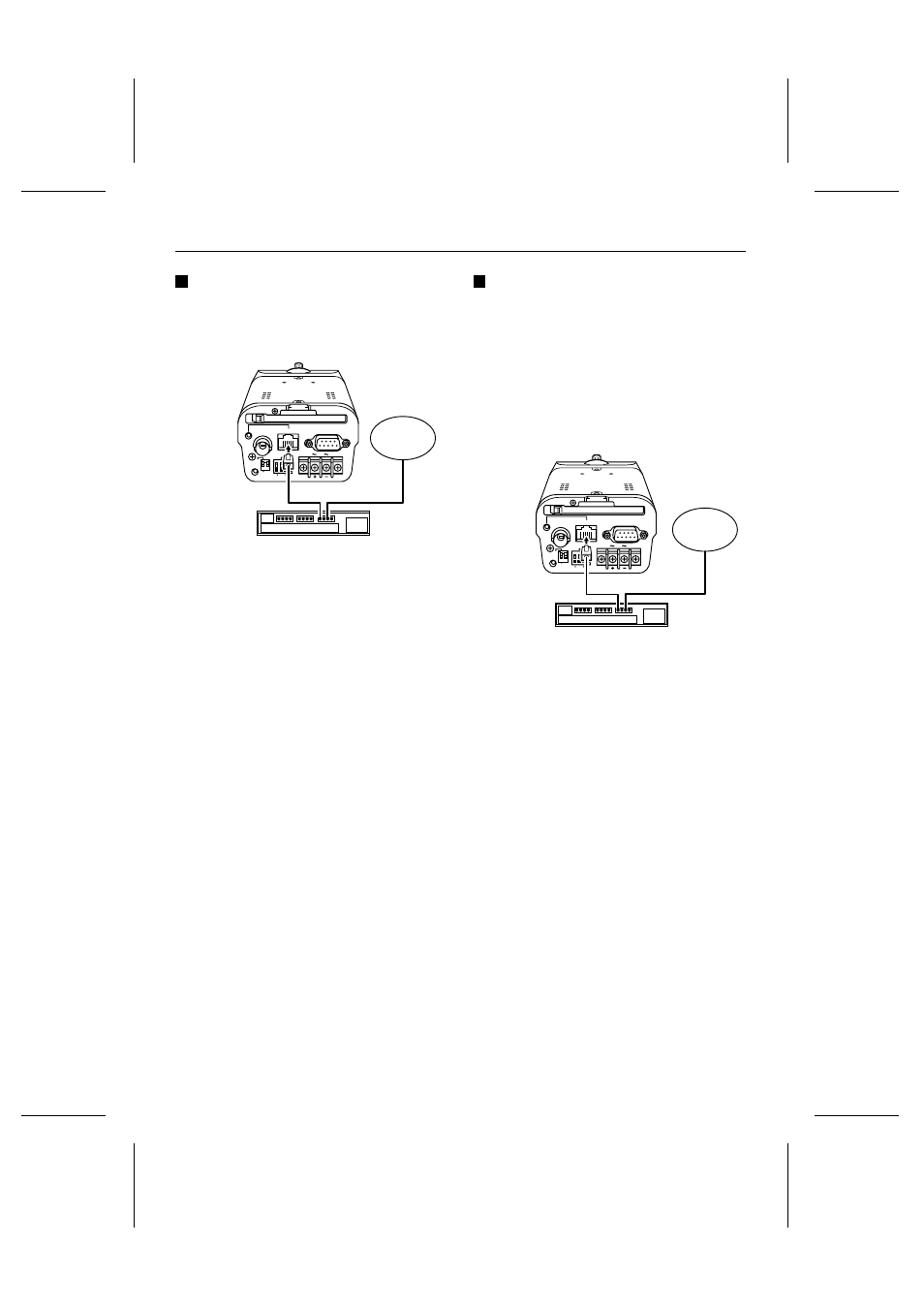

Connecting to a LAN
Use an Ethernet cable to connect the
ETHERNET connector of the camera to the
LAN’s Ethernet switching hub.
☞ Use a straight-type Ethernet cable.
Connecting to the Internet
Use an Ethernet cable to connect the
ETHERNET connector of the camera to a device
such as a router or ADSL modem that is
connected to the Internet.
☞ If connecting to a router, use a straight-type
Ethernet cable. If connecting to an ADSL
modem or to some other type of device, refer
to the documentation provided with the
device for details on what type of connection
method should be used.
PC CARD
RS-232C
ALARM IN OUT
MODEM
PC
COM AC24V
DC12V
GND
1 2
ETHERNET
POWER
MONITOR
OUT
Ethernet cable
(straight type)
Ethernet switching hub
LAN
CLASS 2 WIRING
PC CARD
RS-232C
ALARM IN OUT
MODEM
PC
COM AC24V
DC12V
GND
1 2
ETHERNET
POWER
MONITOR
OUT
Internet
Ethernet cable
(straight type)
Router or ADSL modem
CLASS 2 WIRING
L5AM2/US (VCC-WB4000) GB 2003, 6, 6
– 10 – English
