461306975 (RS-000)
18
40
570
570
550
550
A
A
560
560
560
597
595 540
10
GB 5. TECHNICAL FEATURES

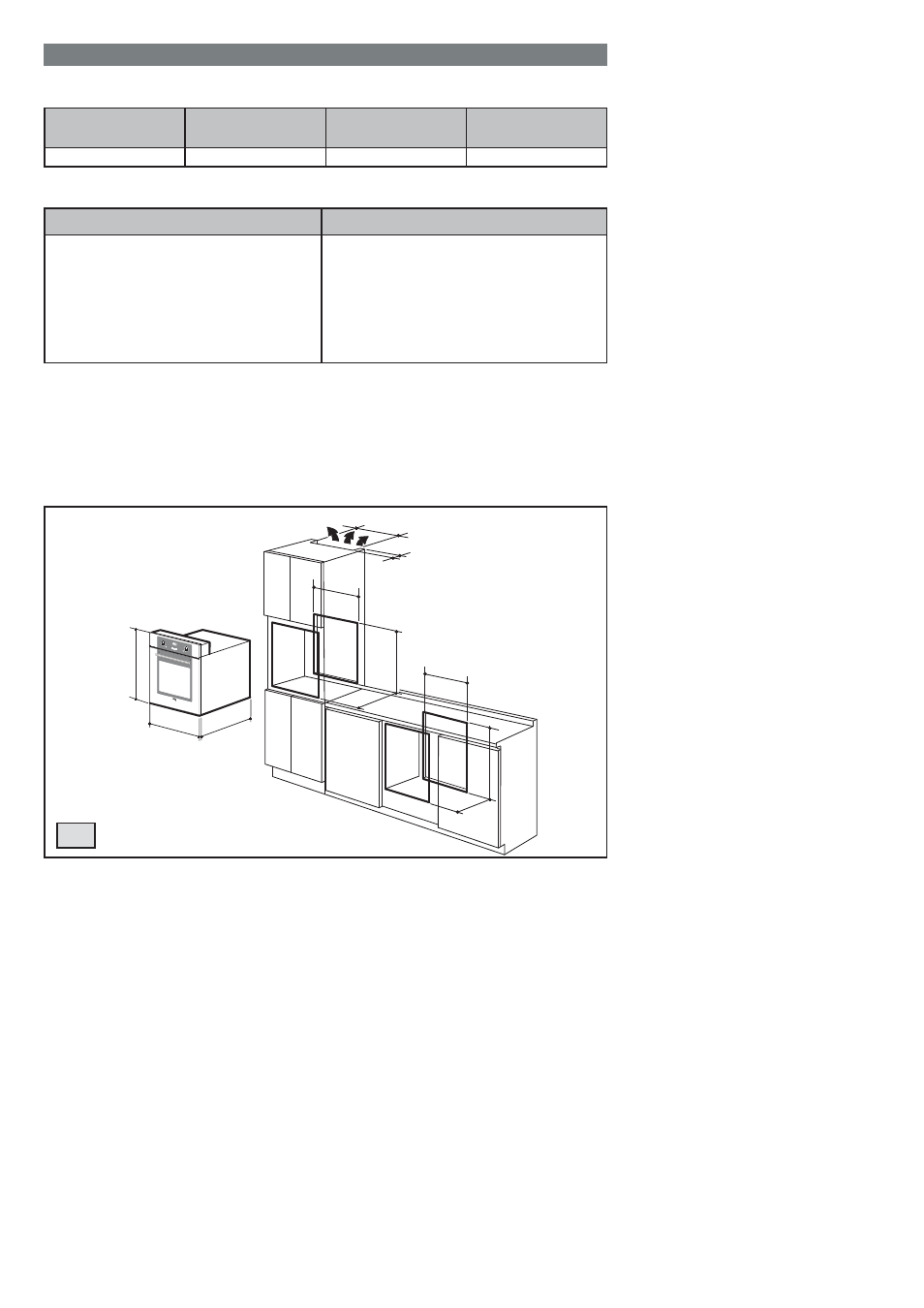

MINIMUM DIMENSIONS OF THE UNIT TO HOUSE THE OVEN (fi g. 10)
HEIGHT
mm
WIDTH
mm
DEPTH
mm
VOLUME
dm 3
570 560 550 51
ELECTRICAL COMPONENTS
Description Nominal data
Lower heating element of the oven
Top heating element of the oven-grill
Rear heating element of the oven
Grill heating element
Oven lamp
Tangential or cooling fan
Fan of the rear heating element
Supply cable 170 + 800 W
800+1800 W
2000 W
1800 W
15 W - E 14 - T 300
18..22 W
25..29 W
H05 RR-F 3 x 1.5 mm 2
