M1109 Combo Lathe/Mill
PA
RT
S

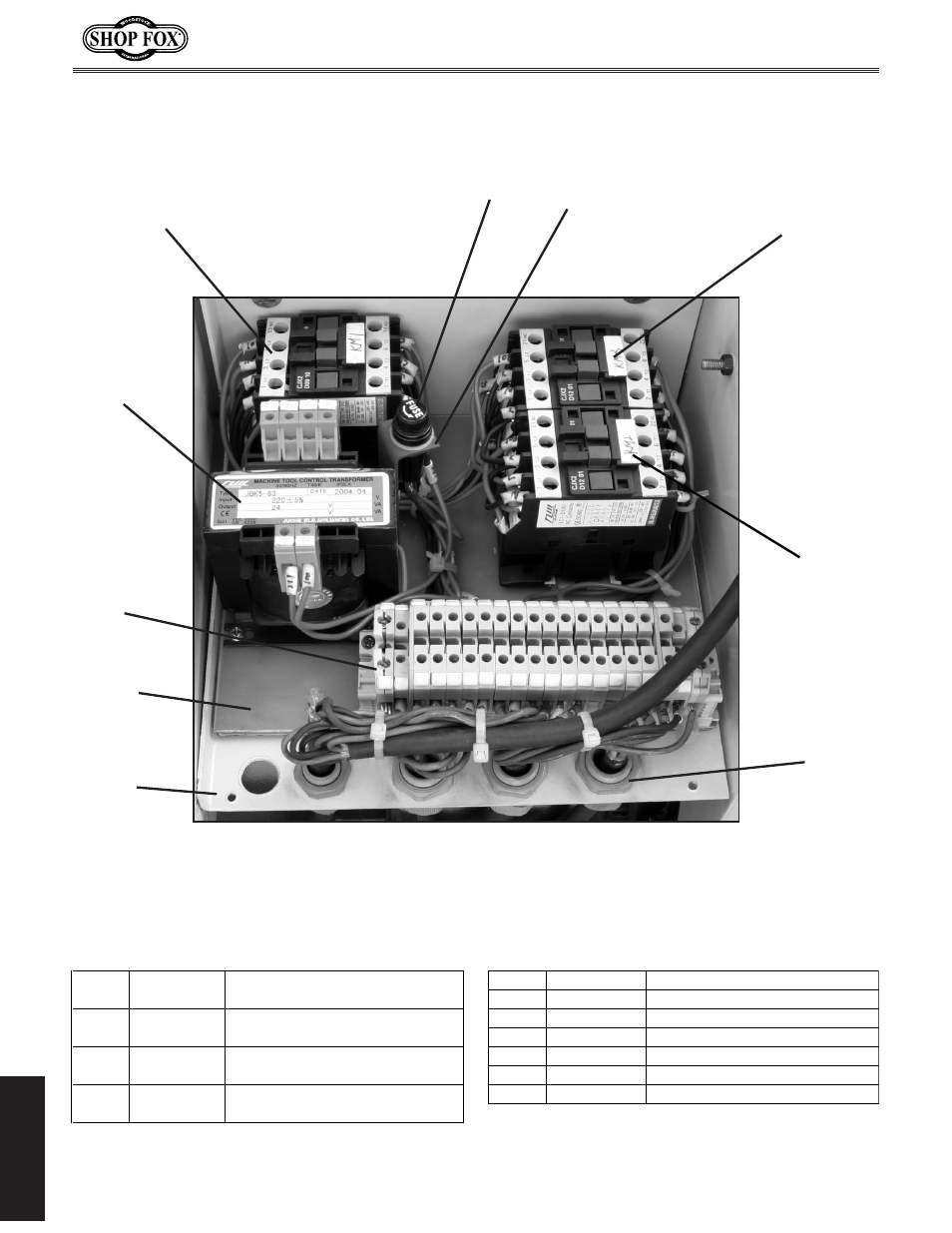

Main Wiring Box Diagram
(9000 Series Parts)
9003
9009
9002
9007
9006
9001
9004
9008
9011
9010
9000 Series Parts List
REF PART�# DESCRIPTION REF PART�# DESCRIPTION
9001 XM11099001 CONTACTOR� 9006 XM11099006 FUSE�2A
(LC1-D0910,�B5,�24V,�50HZ)� 9007 XM11099007 FUSE�HOUSING
9002 XM11099002 CONTACTOR� 9008 XM11099008 TERMINAL�BLOCK
(LC1-D1201,�B5,�24V,�50HZ)� 9009 XM11099009 STRAIN�RELIEF
9003 XM11099003 CONTACTOR� 9010 XM11099010 ELECTRICAL�BOX
(LC1-D1201,�B5,�24V,�50HZ)� 9010-1 XM11099010-1 ELECTRICAL�BOX�COVER
9004 XM11099004 TRANSFORMER��(JBK5-63),� 9011 XM11099011 CONTACTOR�MOUNTING�PLATE
(INPUT�220V�+/-�5%,�OUTPUT�24V)
