56

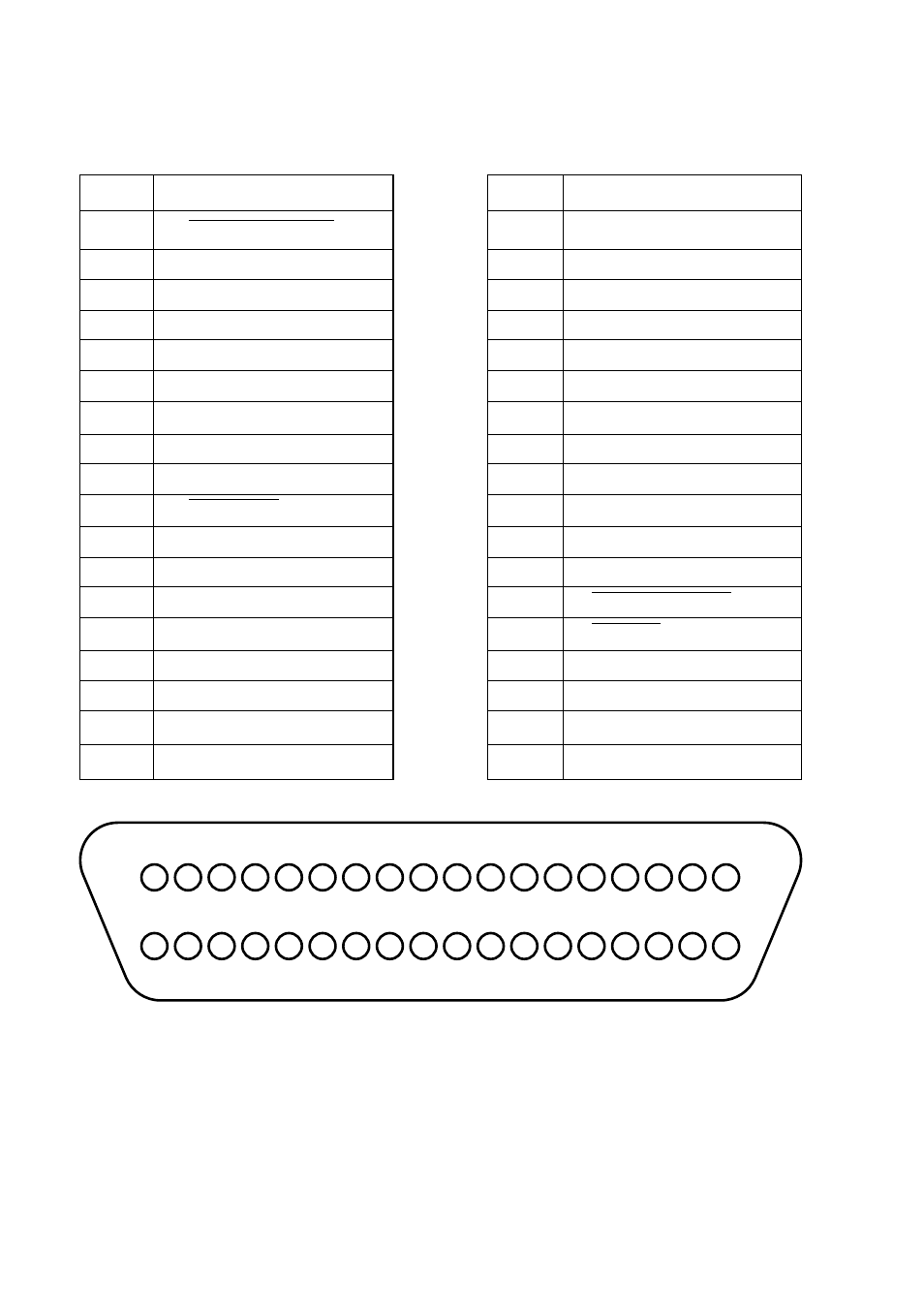

Pinout of interface connector
This printer uses a standard 8 bit parallel interface connector (Centronics interface). The
following information is the pin assignment of the interface connector.
Pin Signal Pin Signal
1 DATA STROBE 19 GND
2 DATA 1 20 GND
3 DATA 2 21 GND
4 DATA 3 22 GND
5 DATA 4 23 GND
6 DATA 5 24 GND
7 DATA 6 25 GND
8 DATA 7 26 GND
9 DATA 8 27 GND
10 ACKNLG 28 GND
11 BUSY 29 GND
12 EOP 30 GND
13 ON LINE 31 INPUT PRIME
14 GND 32 FAULT
15 33 GND
16 GND 34 EOI
17 CHASSIS GND 35
18 +5V (Max. 160mA) 36
1 18
19 36
